CATV / RF Over Fiber
CATV Receiver Solutions for RF Over Fiber Networks
A CATV receiver (fiber optic RF receiver) is a critical component in modern broadband infrastructure, converting optical signals into RF output for distribution across coaxial networks. These receivers are widely used in CATV headends, RFoG systems, HFC networks, and FTTx deployments, enabling reliable delivery of video, data, and voice services over long distances with minimal signal degradation.
Maxcom CATV receivers are engineered for high output performance, low noise, and exceptional signal integrity, supporting applications ranging from single-dwelling units to large multi-dwelling and commercial environments. With features such as Automatic Gain Control (AGC), high RF output levels, PON pass-through capability, and OBI mitigation, these solutions ensure stable operation across a wide range of network conditions. Whether deployed in fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), or RF overlay networks, Maxcom receivers provide the flexibility and reliability required for today’s high-bandwidth demands.
Transport RF signals: Cable TV (CATV), L-Band (SMATV), NTSC, DOCSIS, Return Path and other RF signals over 110km over a single fiber.

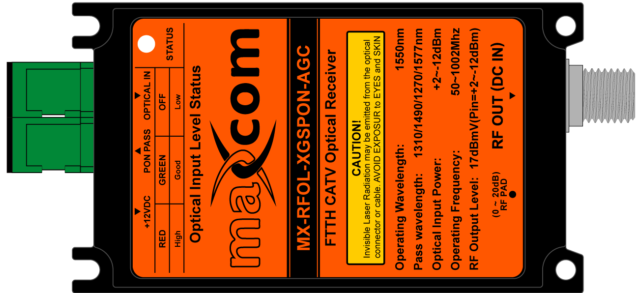

RF Overlay Mini Optical Receiver with PON pass through port
The Maxcom MX-RFOL mini receivers offer enhanced features such as AGC (Automatic Gain Control), and PON ports to support G and XGS PON, EPON, xPON services. Maxcom offers highly reliable RF and Optical solutions.
ONU RFoG Mini Node – With Selectable Wavelength for OBI Mitigation
The Maxcom MX700AC-MT series with Selectable wavelength offers enhanced features such OBI mitigation for effectively reducing OBI, AGC (Automatic Gain Control), with high +36 dBmV RF output for MDU applications. Maxcom offers highly reliable RFoG solutions.

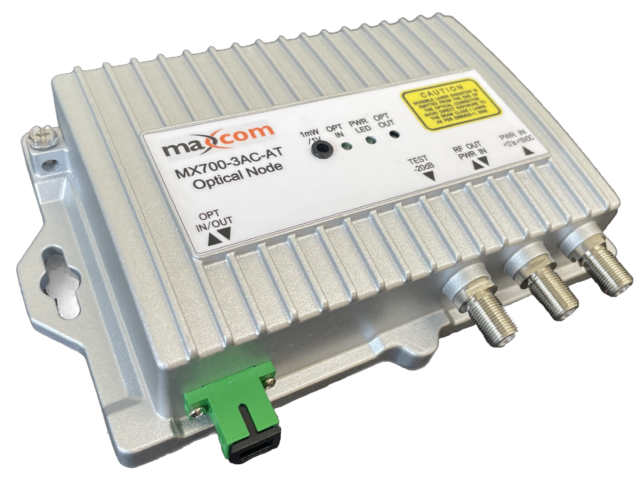

ONU RFoG Mini Node – With Automated OBI Mitigation
The Maxcom MX700AC-AT series with Continuum Wave Shifting Technology. ONU mini nodes offer enhanced features such OBI mitigation for effectively reducing the likelihood of OBI, AGC (Automatic Gain Control), with optional PON ports to support GPON, EPON, xPON services. Maxcom offers highly reliable RFoG solutions.

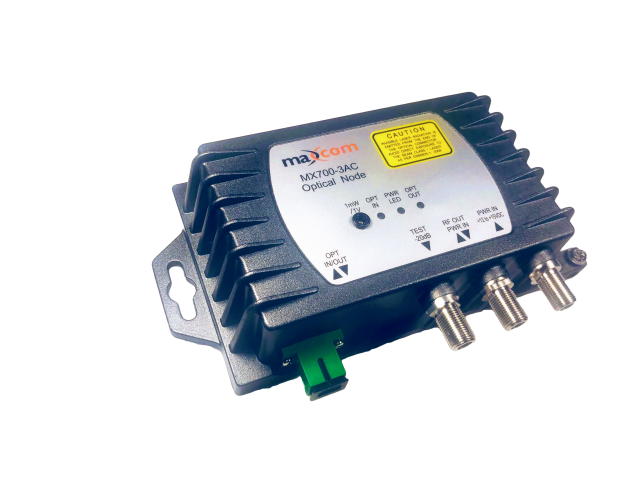

R-ONU RFoG Mini Node
The Maxcom MX700AC series R-ONU mini nodes offer enhanced features such as AGC (Automatic Gain Control), or PON ports to support GPON, EPON, xPON services. Maxcom offers highly reliable RFoG solutions.

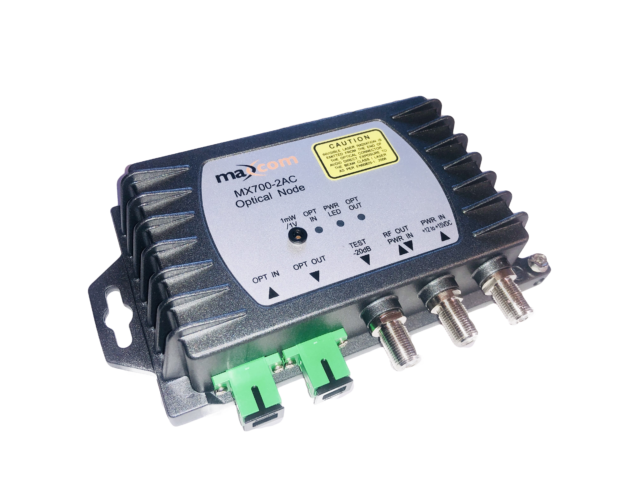

Fiber ONU – Fiber RF Receiver with optional PON pass through port
MAXCOM MX700 products deliver RF , return path services or both, over a fiber optic infrastructure to home, businesses, schools /universities, hospitals, parks, and MDUs . It provides optical-to-electronic conversion in a single, cost effective design.
Mini Fiber Optic Receiver w/AGC
The Maxcom MX555 series optical receivers are versatile, low-cost and compact optical receivers for use in HFC fiber applications.

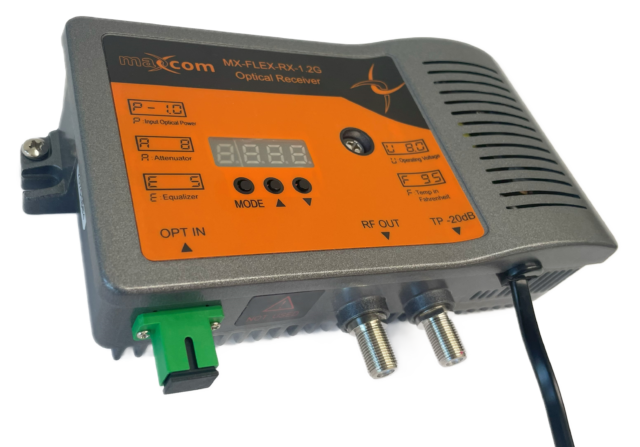

High Output Fiber Optic to RF Receiver
The MX-FLEX is a Fiber Optics Receiver used to convert a fiber optic connection to RF (coax output).
Mini Fiber Node – High Output RF for RFoG Applications
The MX-ON50 Series Optical Nodes are designed for maximum versatility and performance. They are ideal for fiber-to-the-building applications.
Fiber Node – Outdoor – High Output RF Bi-Directional
The MX-ODN1.2 Series Optical Nodes are designed for maximum versatility and performance. They are ideal for MDU applications.
