EDFA with built in PON WDM ports

Multiple Output Port EDFA with PON Ports. Each output port for the optical amplifier has built-in PON Port. Each of the 1550nm (CATV)’s output optical ports will multiplex G and/or XGS PON wavelengths of 1270,1310,1490, and 1577 nm from an external OLT, Available in 4, 8, 16, 32, and 64 outputs. +15 to +23 dBm output power per port.

  1. General Details

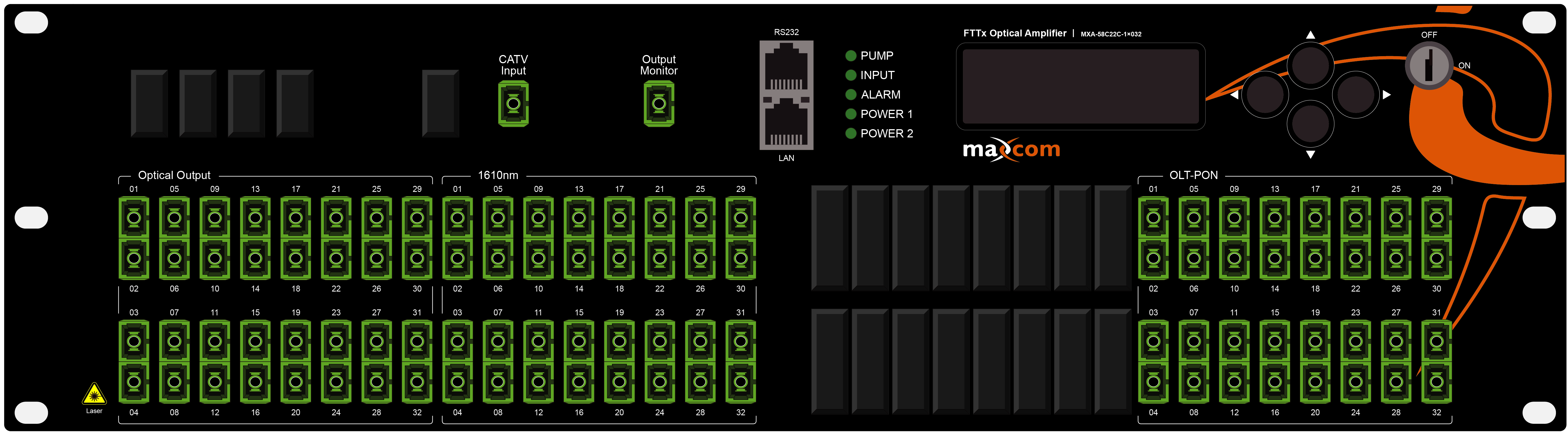

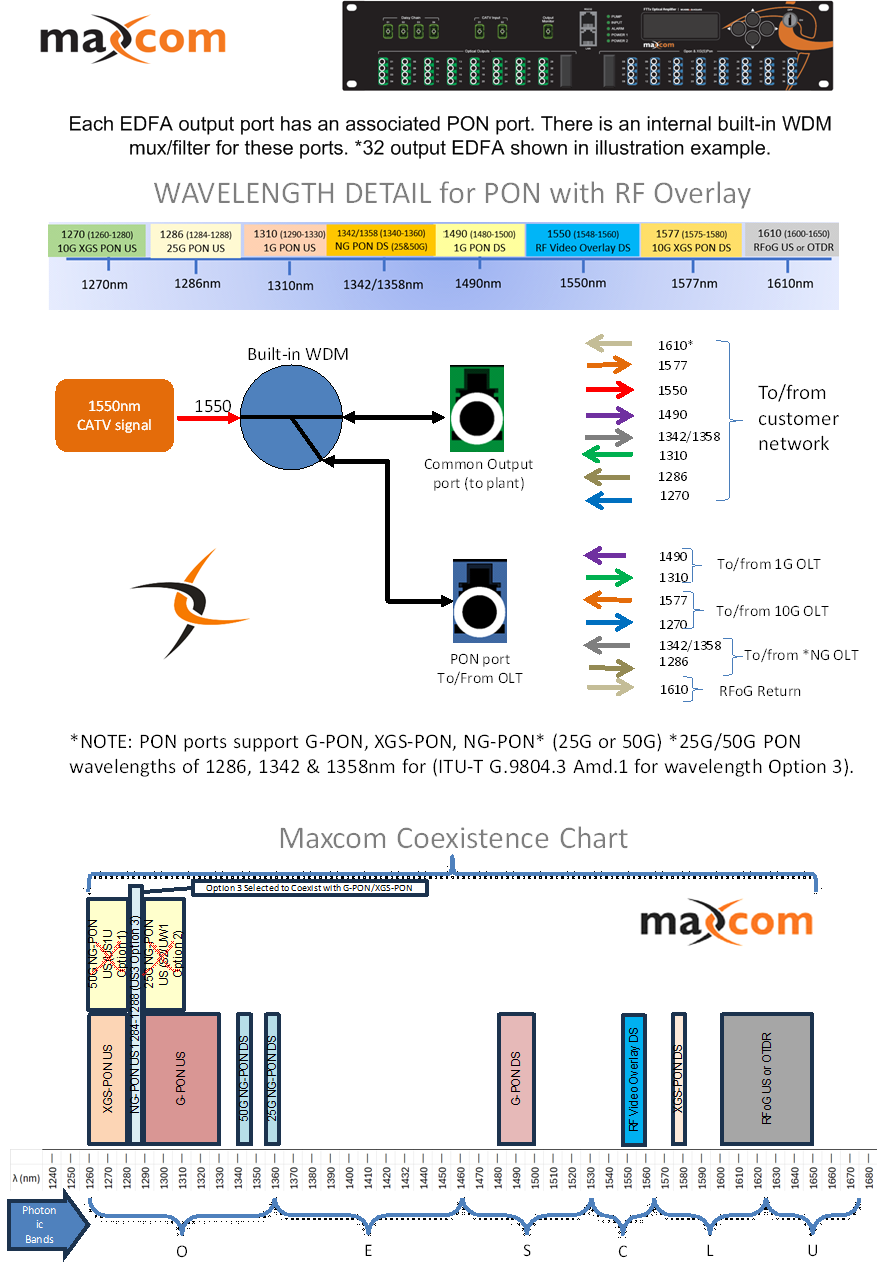

    The MXA5 series is a low noise, high performance, FTTx high power multi-port optical amplifier with a gain spectrum band within 1540~1563nm. Each output port for the optical amplifier has built-in high performance CWDM PON port to conveniently connect with an OLT. Each of the 1550nm (CATV)’s output optical ports will multiplex 1310/1490nm and 1270/1577nm wavelengths from an external OLT, reducing the quantity of the components and improving the performance and reliability of the system. Models are also available with an option to pass 1610nm RFoG wavelengths.

    The MXA5 Series has an extremely low noise figure. The unit adopts twin-stage amplification, the pre-amplifier adopts a low noise EDFA, and the output cascade adopts high power EYDFA technology. When the input optical power PIN is 0dBm, the noise figure of the unit is: Typ ≤4.5dB, Max ≤5.0dB unlike other manufactures which need higher optical power input to maintain lower noise figures.

    The MXA5 Series optical amplifier incorporates world class pump lasers and American made OFS erbium-doped optical fiber. Superb APC, ACC, and ATC control, coupled with excellent design in the ventilation and heat-dissipation ensure a long life and exceptionally reliable operation of the pump laser. RS232 and RJ45 offer serial communication and SNMP network management ports.

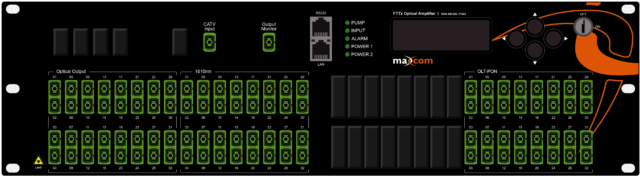

    The MXA5 Series LCD located on the front panel offers access to all equipment indexes and warning alarms.  A WEB GUI interface is also available for operators preferring remote access and visibility.

    Maxcom EDFA’s offer a flexible wide range optical input between -5 to +10 dBm.

    For safety and protection of the laser components, the laser will automatically switch off if input optical power is interrupted.

    The MXA5 Series offers carrier-class reliability and network security management, high quality, superb reliability, and excellent cost performance are ideal for system integrators and system operators.

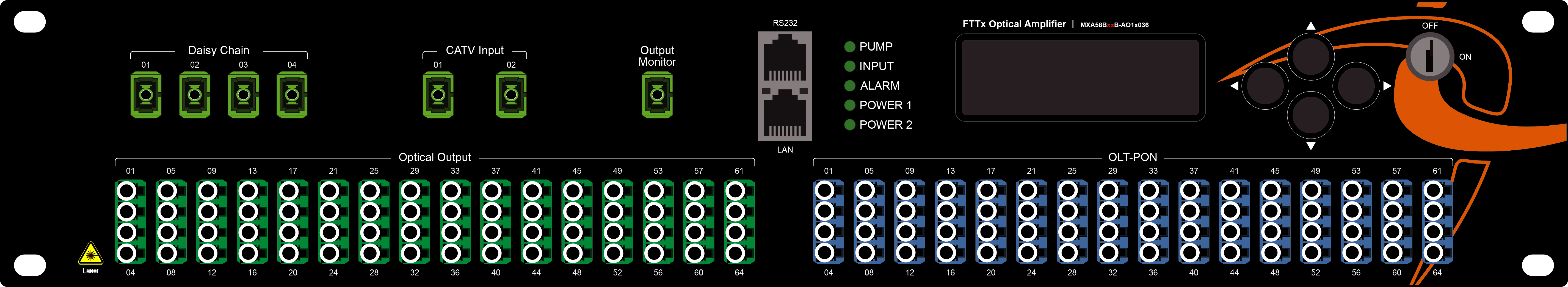

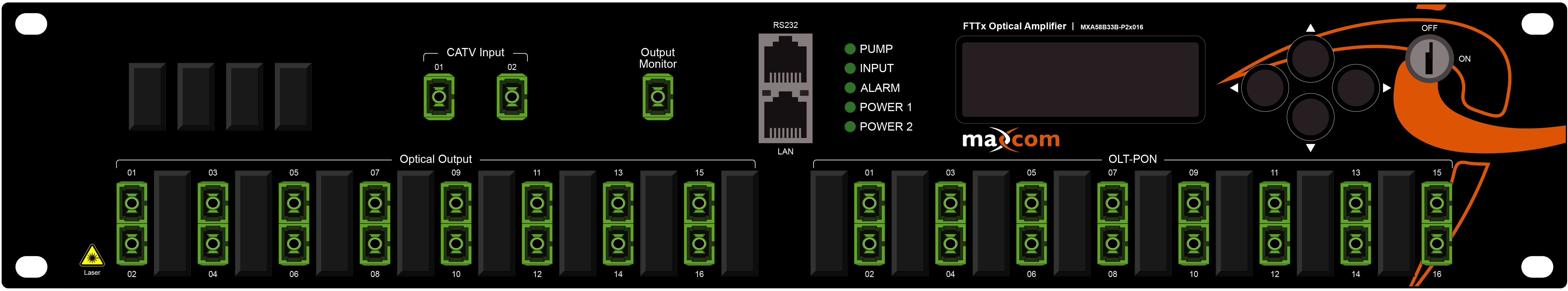

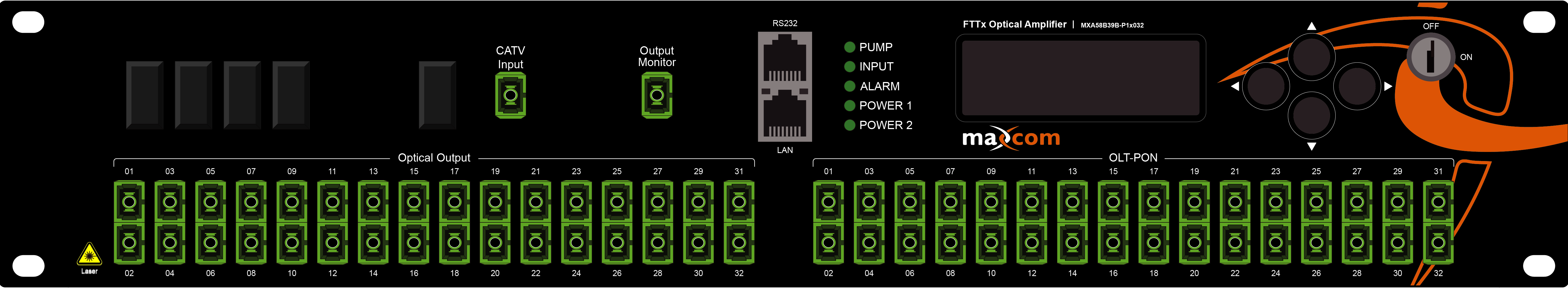

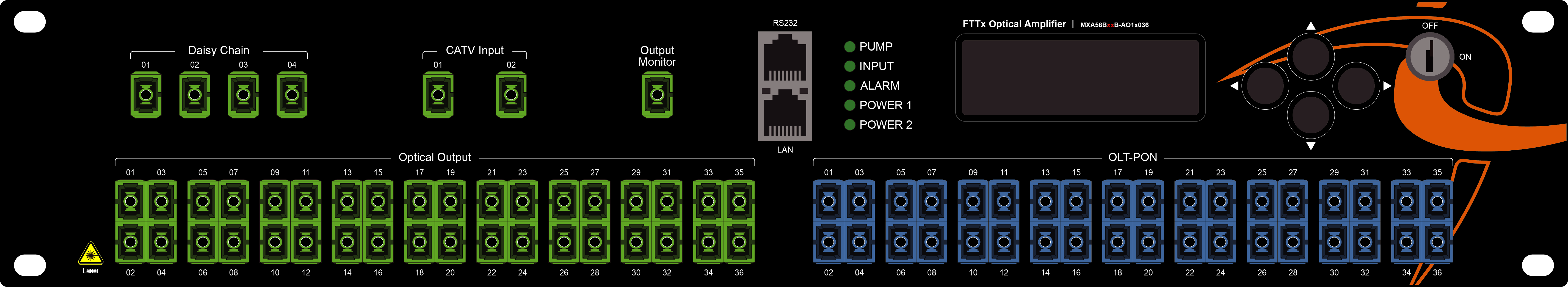

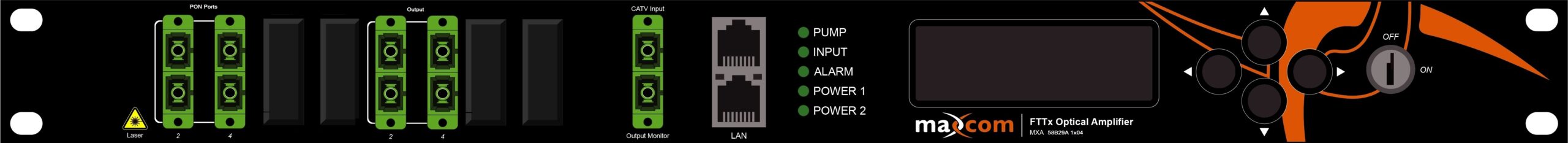

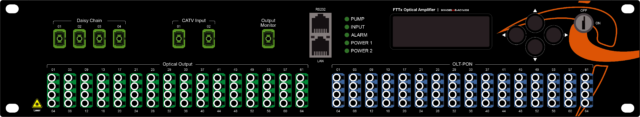

    The MXA5 Series optical amplifiers are available with output power of +15 to +23 dBm per output port. Standard units come in 4, 8, 16, 32, and 64 port configurations. Units come with xPON ports to match the number of output ports. Optional daisy chain ports are also available providing for simple scalability as your network grows.

    The MXA5 Series is also available with a built in 2×1 optical switch with auto detection and switching when two optical inputs are used in cases where fiber route redundancy is critical.

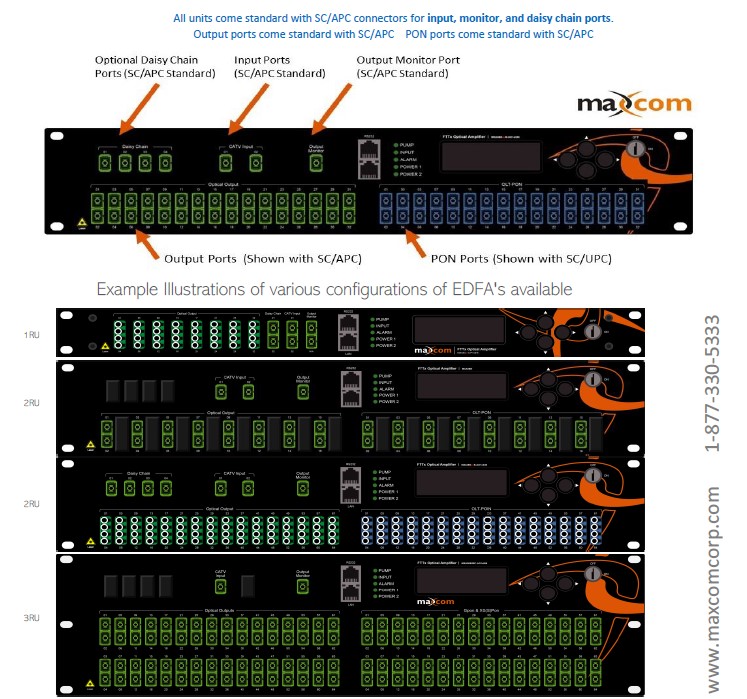

    Fiber connector types may be customized for operator requirements using SC/APC, SC/UPC, LC/APC, and LC/UPC

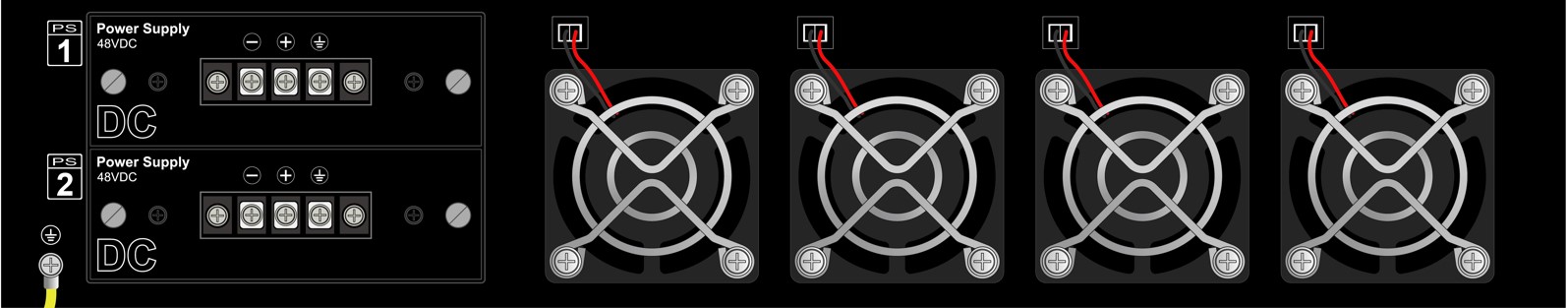

    All MXA5 Series EDFA’s come equipped with Dual Hot Swapable AC or DC power supplies.

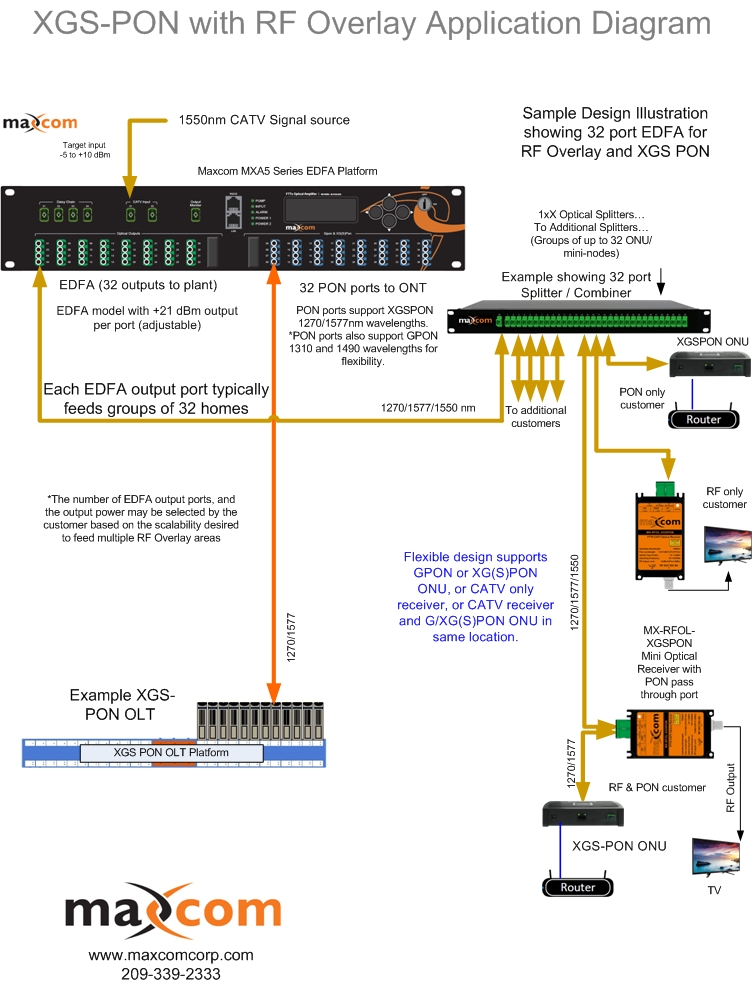

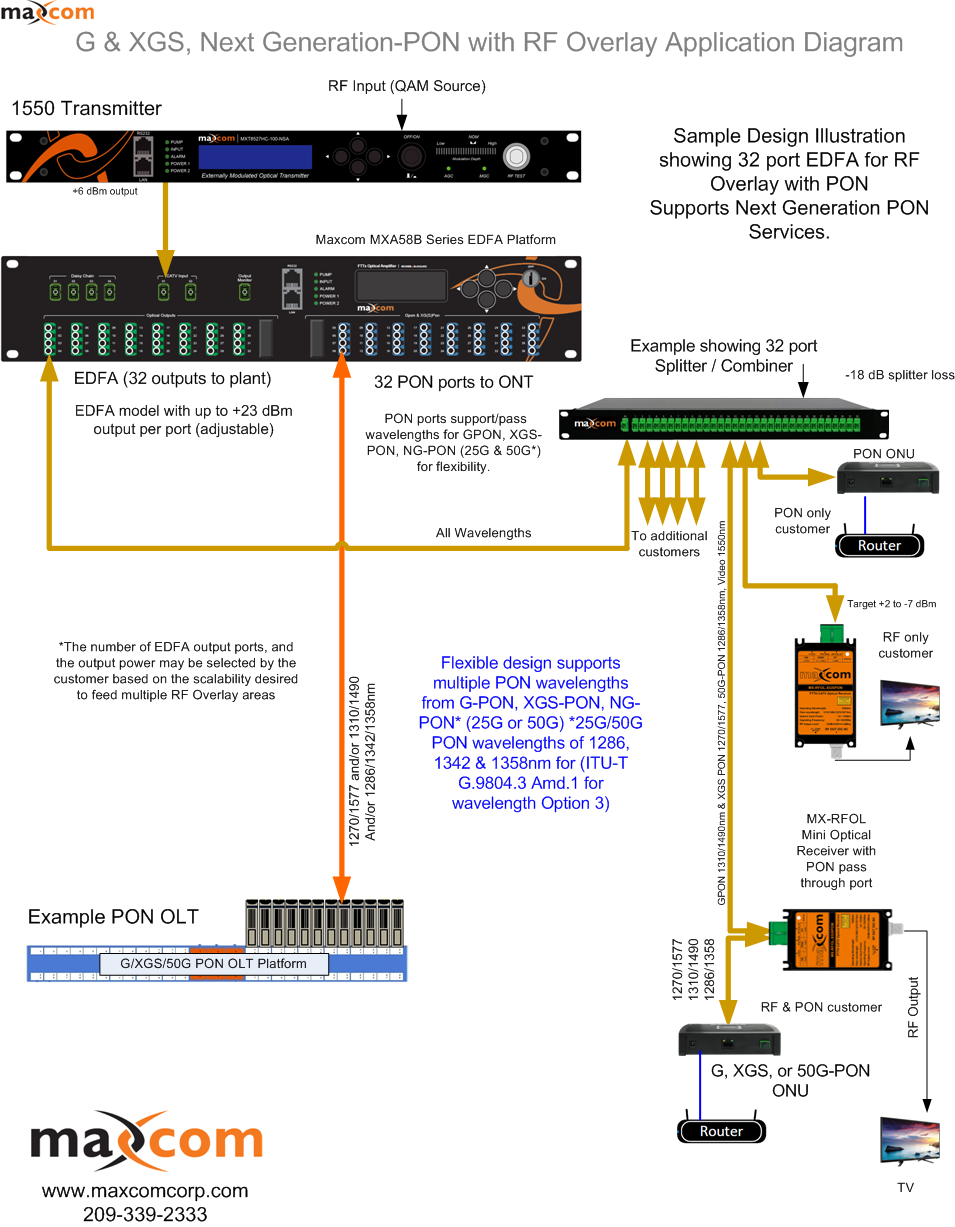

  2. Example Application
  3. Model Selection

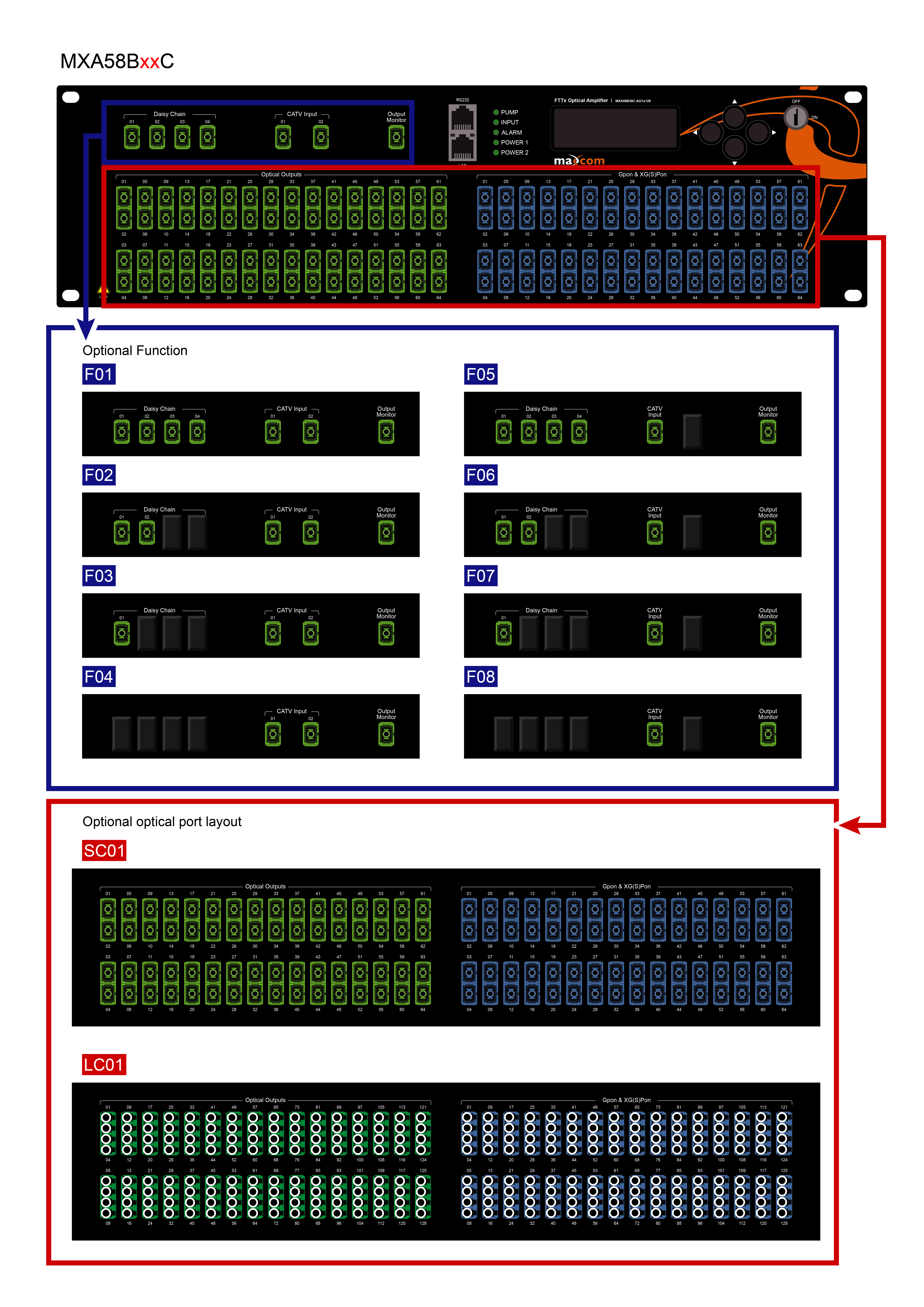

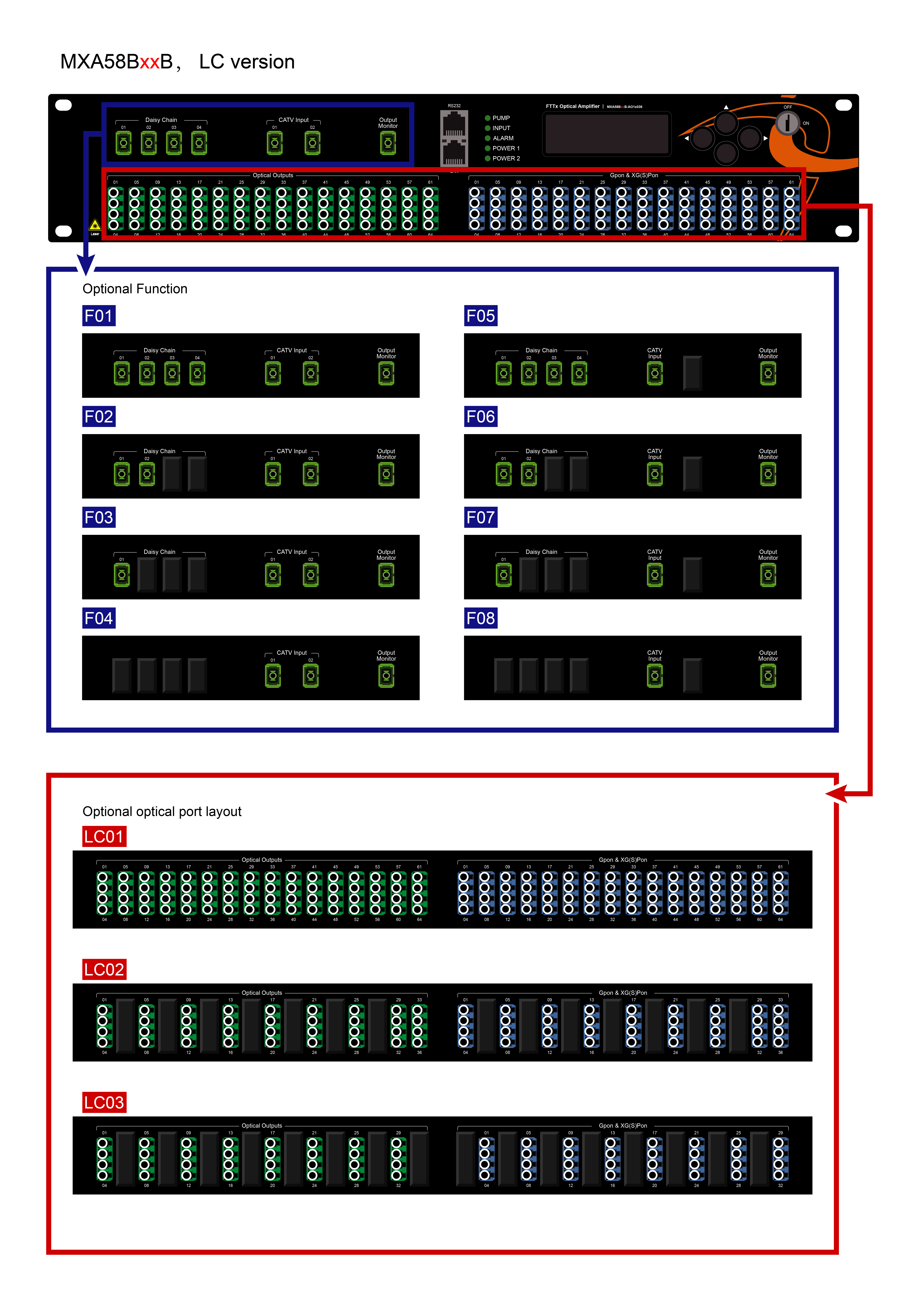

    • MXA58 Series

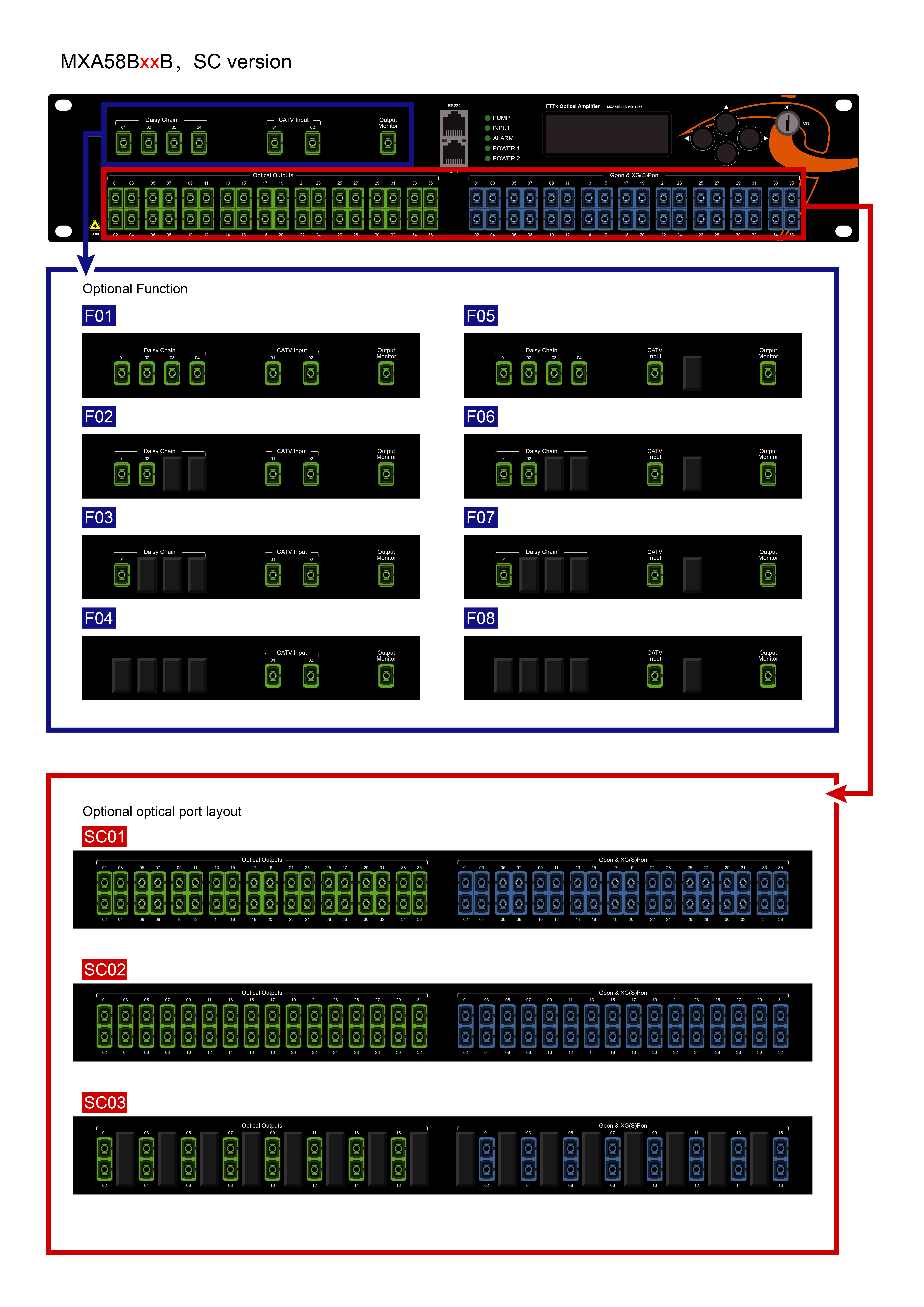

    • By using the Ordering Matrix, you have the flexibility of selecting how many output ports, selecting the output power, connector types, and other features.
    • You can always contact a Maxcom Sales Specialist or Engineer to help guide you through the process. Call 1-209-339-2333

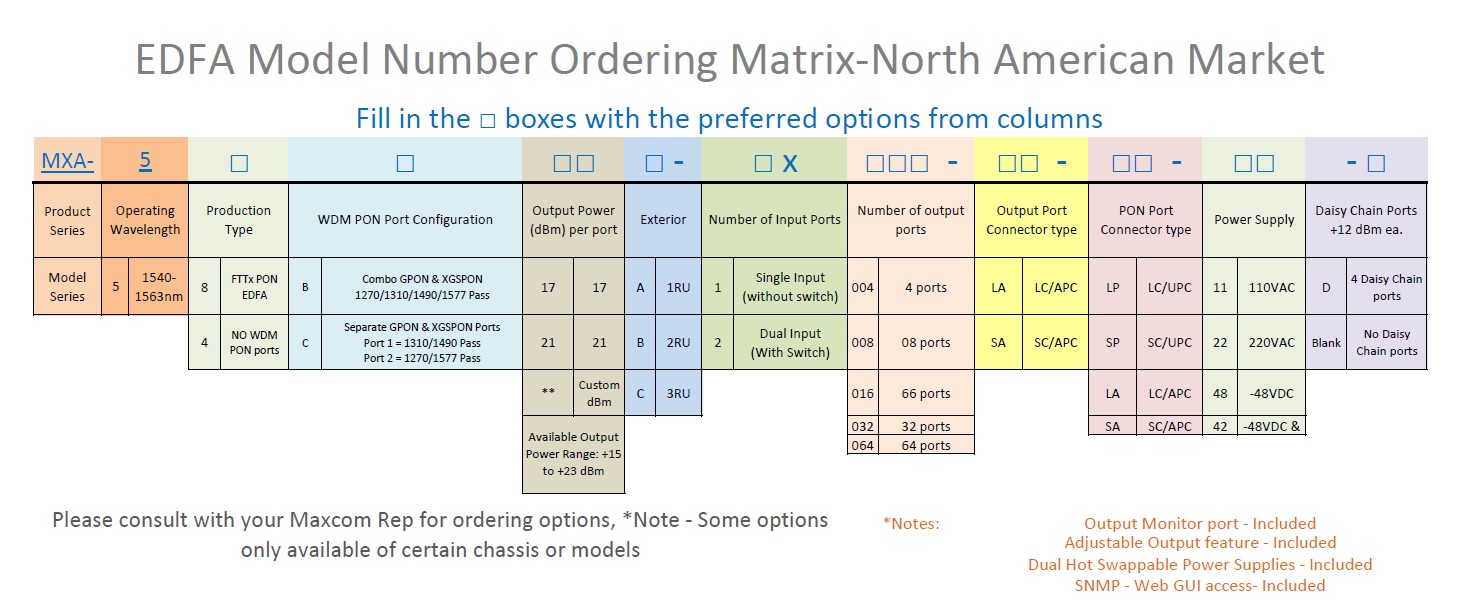

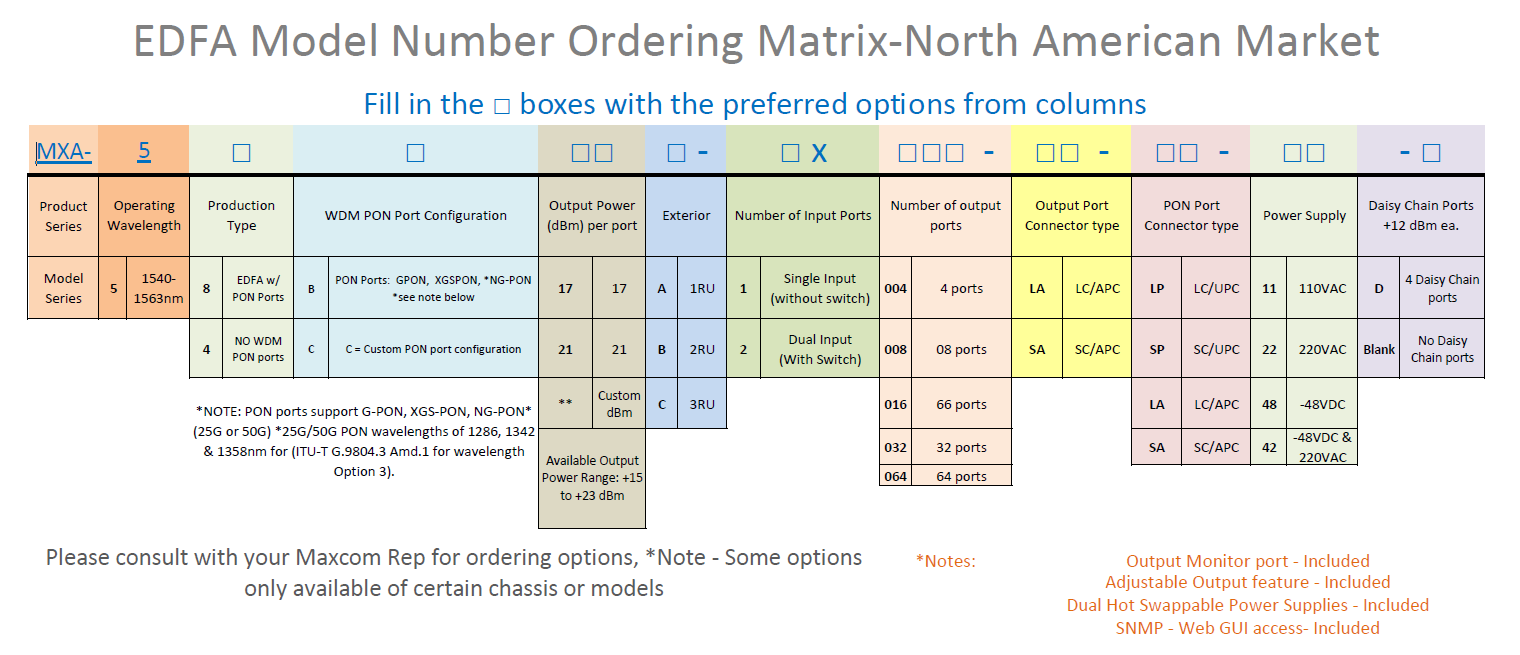

    Ordering Matrix:

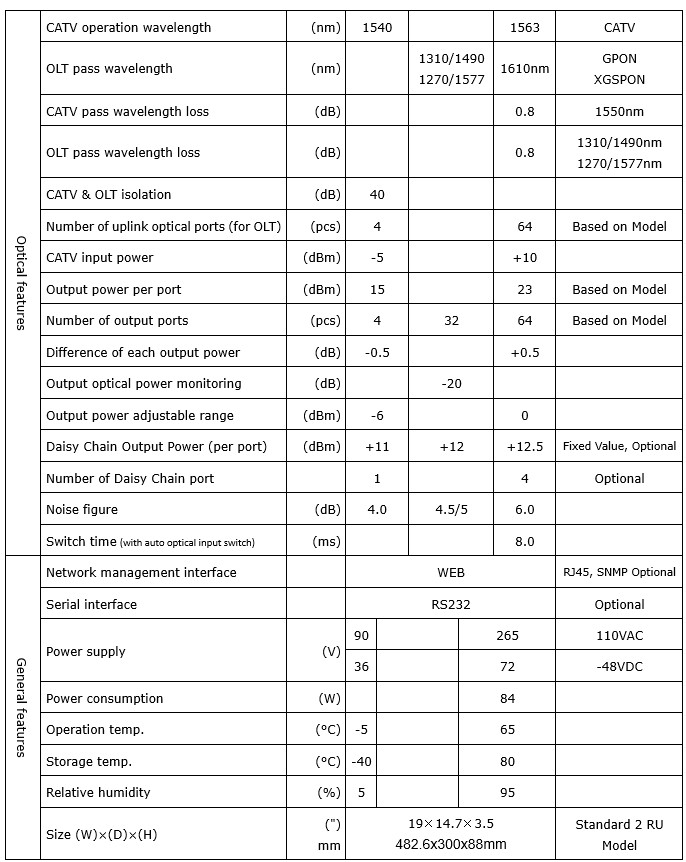

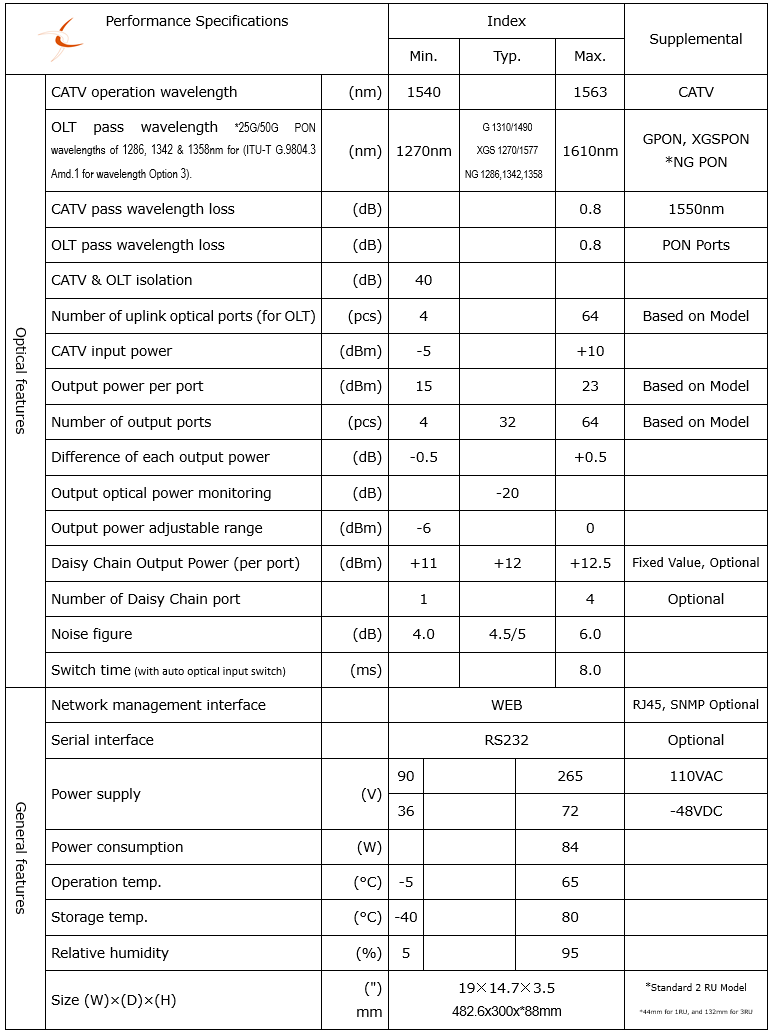

  4. Specifications

    PRODUCT FEATURES

    • 1540~1563nm operating bandwidth for optical amplifier
    • +15 to +23 dBm output per port
    • Low noise figures ( Typ ≤4.5dB, Max ≤5.0dB )
    • Built-in low noise pre-amplifier, substantially decrease the CNR & MER degradation of the system
    • High performance, high reliability

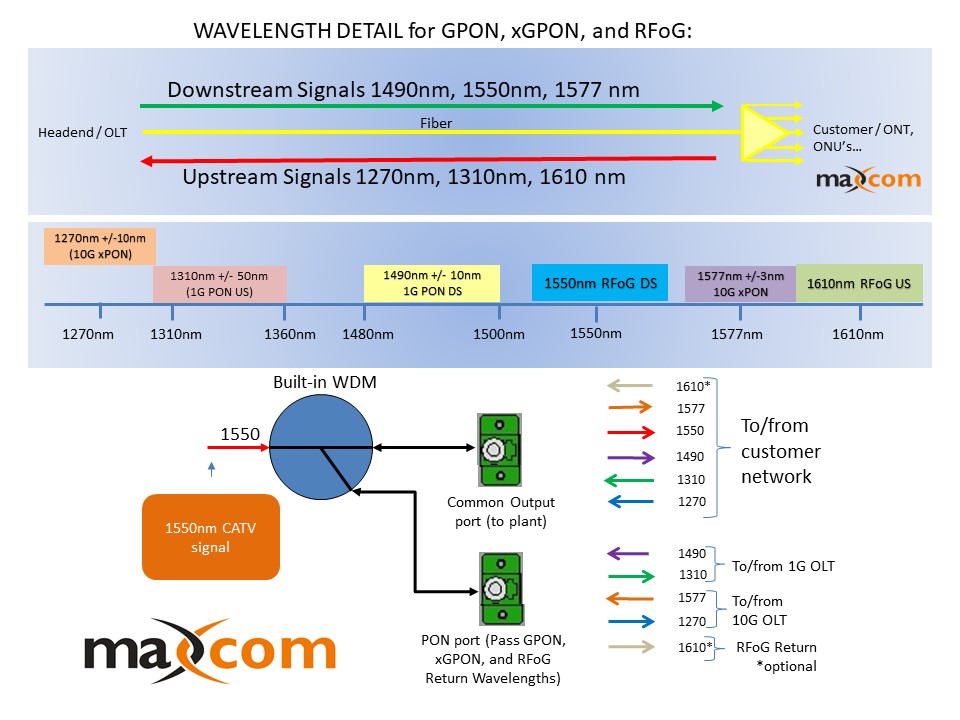

    • Built in PON ports support (pass) both GPON  1310/1490nm wavelengths, and XG(S)PON 1270/1577nm wavelengths
    • 4~64 uplink optical ports, used with OLT
    • 4~64 1550nm output optical ports, multiplexes G and XGS PON data streams
    • Compatible with FTTx PON Technology: EPON/GEPON, GPON, BPON, xPON, XGS 10G PON, RF Overlay
    • Optional dual optical input, built-in 2 x 1 optical switch with auto detect
    • Dual power supplies, 1+1 hot swapable
    • RS232, SNMP, Web access
    • 4, 8, 16, 32, or 64 port
    • Efficient space, flexible installation and simple operation

    MAIN APPLICATIONS

    • RF Overlay
    • FTTx PON
    • FTTx GPON with RF Overlay
    • FTTx XG(S)PON with RF Overlay
    • RFoG
