RF Overlay Mini Optical Receiver with PON pass through port
The Maxcom MX-RFOL mini receivers offer enhanced features such as AGC (Automatic Gain Control), and PON ports to support G and XGS PON, EPON, xPON services. Maxcom offers highly reliable RF and Optical solutions.
- General Details
The Maxcom MX-RFOL-XGSPON-AGC series CATV optical receiver supports a bandwidth of 47~1002MHz. Works well for Residential, Business, Hospitality and Government applications. As an RF/ Cable TV optical receiver unit, it provides a high index, and low power consumption with impressive performance at an exceptionally low cost.
The Maxcom MX-RFOL-XGSPON-AGC series employs a high sensitivity receiving tube and special low noise matching circuit. With a 3.8% OMI, full channel bandwidth, and at -8dBm optical receive power, the CNR will continue to reach a high index 45dB. The MX-RFOL-XGSPON-AGC is equipped with a convenient LED display light that will indicate the optical input power between -10 and +2 dBm. Automatic Gain Control (AGC) provides an average RF output of +17 dBmV

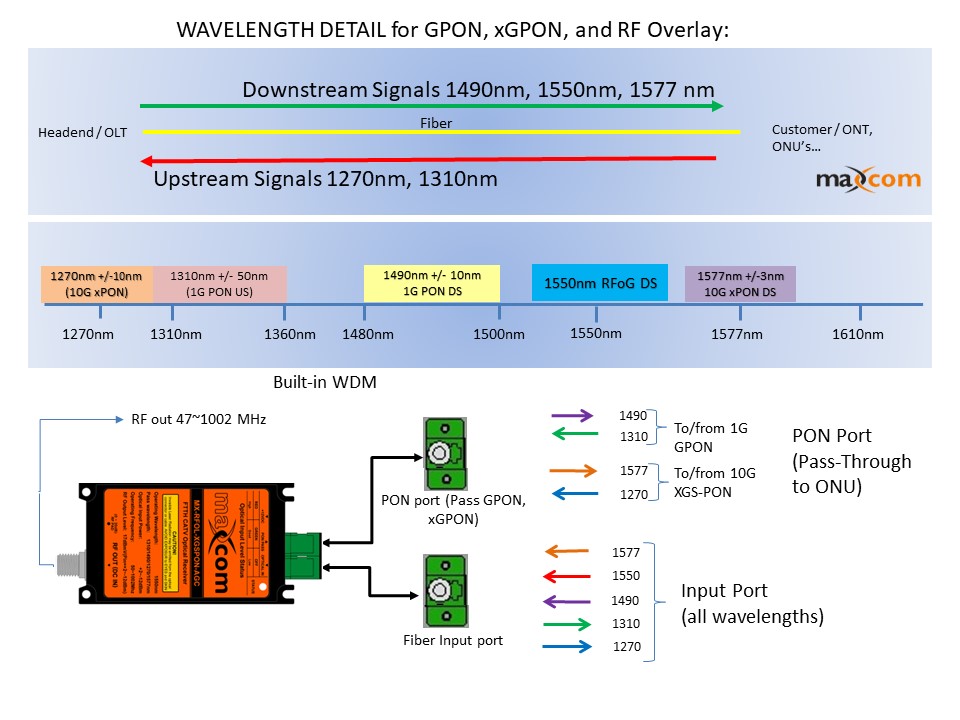

The PON Pass through port supports both GPON and XG(S)PON RF Overlays. PON ports pass GPON wavelengths of 1310 and 1490nm, as well as XG(S)PON wavelengths of 1270 and 1577nm.
The Maxcom MX-RFOL-XGSPON-AGC series provides very flexible powering options by offering standard power adapters and remote powering options for instances where power may not be available at the receiver location.
Receiver Features
- 1550nm Optical to RF receiver
- PON Port passes GPON and XGSPON wavelengths
- Internal WDM to pass PON wavelengths of 1310nm and 1490nm, and 10G XG(S)PON wavelengths of 1270nm and 1577nm
- AGC version for consistent RF level out at 17 dBmV
- Low power consumption, compact in size, built tough, with Max reliability
- Follows industry standards
- 1002 MHz forward w/ AGC
- Convenient LED indicators and accessible test points
- Flexible 12VDC powering options (Standard Power Supply included)
- Optional coax power inserter and remote power supply available
*Additional details under Documents Section below
- Example Application
- Model Selection
- MX-RFOL-XGSPON-AGC – AGC Receiver with PON Pass through Port
- MX700-PS – Optional Remote Power Supply 12VDC with “F” Connector
- MX-IPPIM – Optional Coaxial Power Inserter *used with MX700-PS Remote Power Supply
- Specifications
OPTICAL RF RECEIVER MODULE
RF:
- RF receiver range -50Mhz – 1 GHz design
- RF Output Level : +17 dBmV (with AGC model, non AGC model)
- Based on standard NTSC/ATSC channels loading
Typical Performance:
- CNR Better than: 51 dB typical @ -1 dBm optical input
- CSO Better than: -60 dBc typical @ -1 dBm optical input
- CTB Better than: -65 dBc typical @ -1 dBm optical input
- Impedance: 75 Ù
Optical:
- Optical Receiver Sensitivity – typical (-12 dBm to +2 dBm)
- Output Return Loss: > 45 dB
- Flatness: ± 2 dB
- Connector: SC/APC – Standard
- Insertion Loss of PON port: <.8 dB
ATTENUATOR
- 0 to -20 dB adjustable range (manual control pod)
DC POWER
- Powered through standard direct plug-in 12VDC adaptor which is included
- Optional power inserter for remote powering through F-port (RF output port)
APPLICATION
- FTTx applications
- RF Overlays with GPON and XGSPON Networks
- Residential, businesses, schools /universities, hospitals, parks, and MDUs
