Combo Transmitter and EDFA with built in PON WDM ports
EDFA with built-in Transmitter. RF in, Fiber out. 1550nm Optical Transmitter with integrated EDFA, multi output with built-in PON ports.
- General Details
Integrated 1550 Transmitter and EDFA Combination.

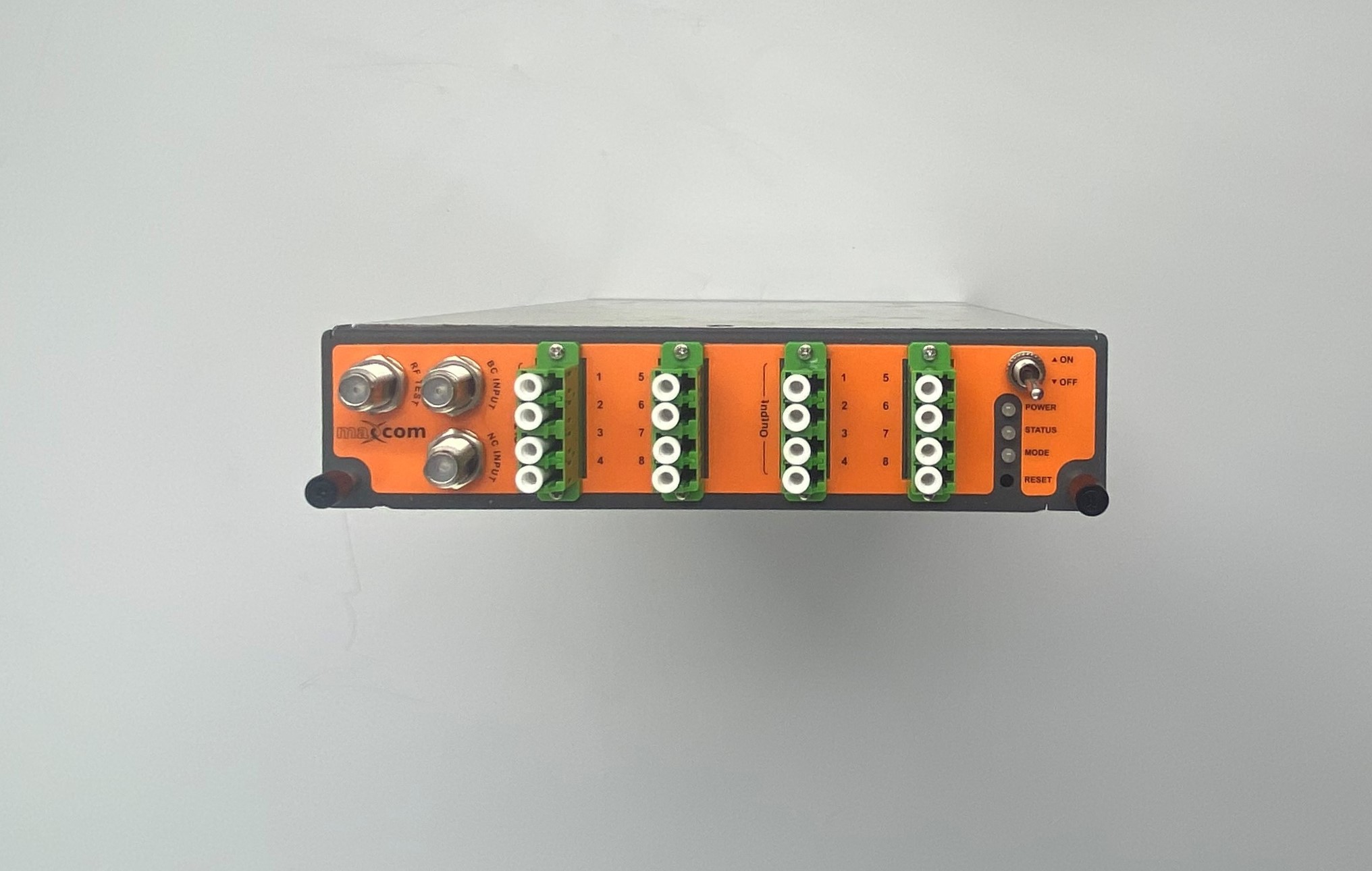

The MX-T-EDFA is a highly integrated, yet simple device specifically designed for Cable Telecommunication Systems deploying RFoG or RF Overlays in the FTTx environment with integrated filters supporting GPON and/or XG(S)PON (10G). Its small size and high density make it the ideal choice, particularly in tightly enclosed environments.

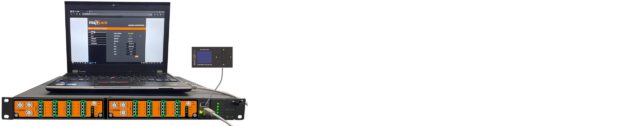

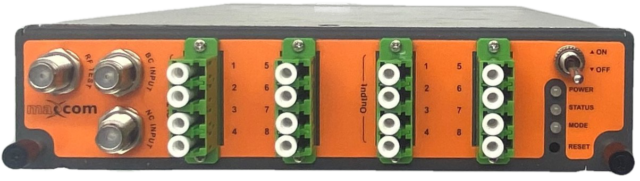

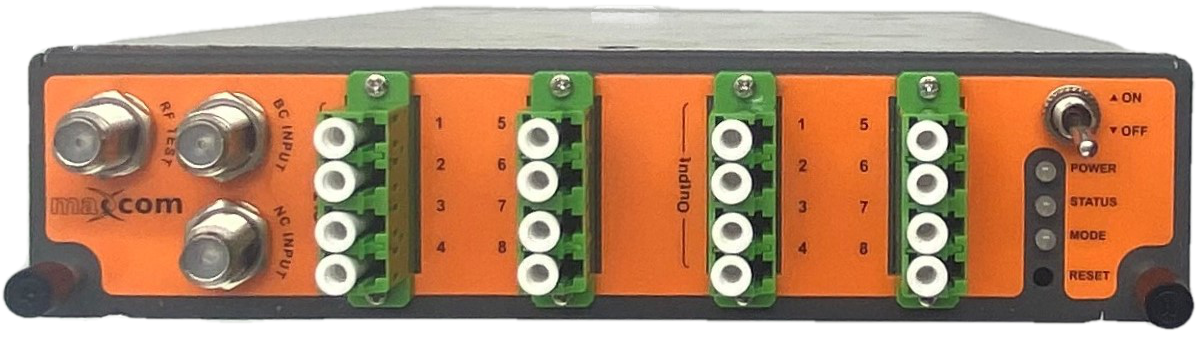

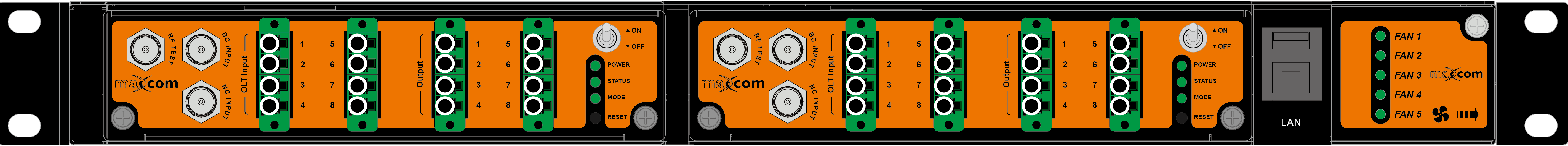

The 1RU 19” Rack Mounted Chassis can hold two modules. Each module has an integrated 1550 Transmitter and EDFA with PON ports. The modules accept a RF input and will provide up to +20 dBm optical power on each output port. Modules are available with 8 or 16 output ports, plus corresponding GPON/XG(S)PON ports. To keep things simple, it is plug and play! For your convenience, an optional External LED Controller/Display may be connected via USB, a laptop may be connected, or the unit may be attached to your network. These connection types provide simple adjustment of the optical output power along with monitoring.

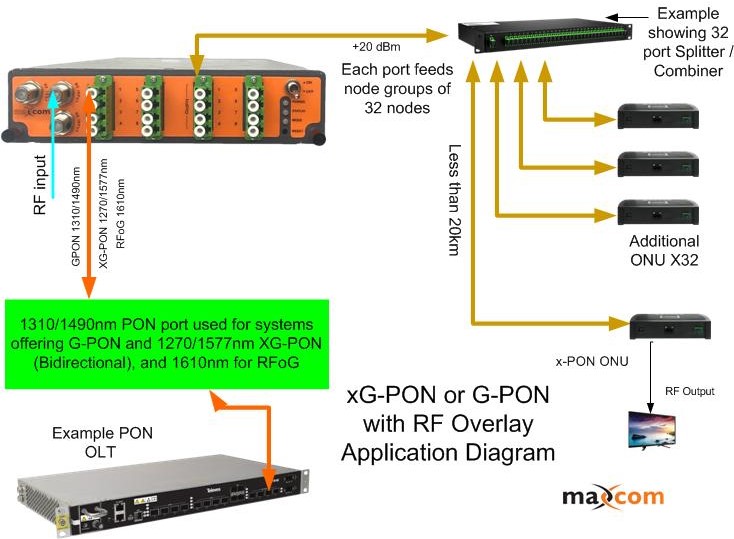

- Example Application
- Model Selection
Part Numbers and Descriptions:
- MX-T-EDFA-8×20-PON – Integrated 1550 transmitter with built in EDFA, broadcast and narrowcast RF input, 8 output ports at 20dBm, plus 8 PON ports, requires chassis & PS
- MX-T-EDFA-16×20-PON – Integrated 1550 transmitter with built in EDFA, broadcast and narrowcast RF input, 16 output ports at 20dBm, plus 16 PON ports, requires chassis & PS
- MX-EDFA-8×20-PON – Module – EDFA only, 8 outputs with +20 dBm each, and 8 x/PON ports, requires chassis & PS
- MX-EDFA-16×20-PON – Module – EDFA only, 16 outputs with +20 dBm each, and 16 x/PON ports, requires chassis & PS
- MX-C-T-EDFA-E – 1RU Chassis (Casing) empty, no PS, or fans
- MX-T-EDFA-PS11 – Accessory, Hot Swappable Power Supply 110 VAC
- MX-T-EDFA-PS48 – Accessory, Hot Swappable Power Supply -48 VDC
- MX-T-EDFA-FAN – Accessory, Hot Swappable Fan Tray
- MX-C-T-EDFA-(/D11 or /D48) – Chassis, 1RU, Tx-EDFA combo, includes dual power supplies, fan tray, and blank face plate. Holds 2 TX-EDFA modules
- MX-T-EDFA-LED – Accessory, External LCD control unit for MX-T-EDFA optical platform. Connects via USB

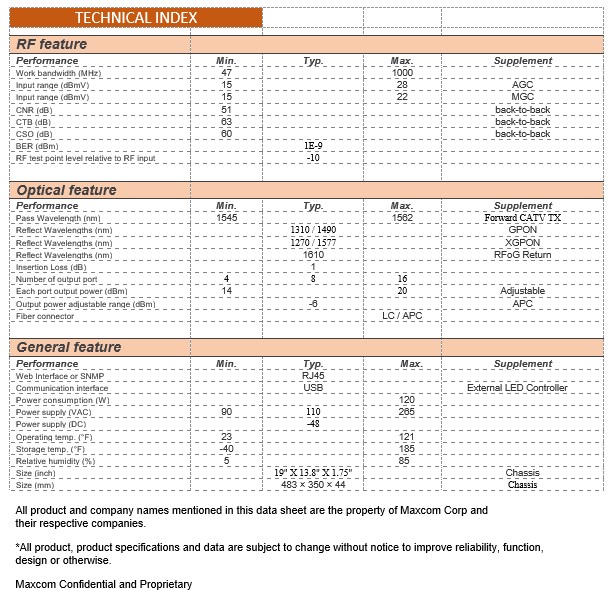

- Specifications
PRODUCT FEATURES
- Integrated Optical Transmitter with Optical Amplifier
- Pluggable Modular Design
- Compatible with any FTTx, PON Technology
- XGPON, GPON, EPON, RFoG, RF Overlay
- Each Output Optical Power up to +20 dBm
- Dual Power Supplies with 1+1 Backup
- Great replacement option for the discontinued InnoTrans ChromaFlex Chromadigm platform
MAIN APPLICATIONS
- RF Overlay
- FTTx PON
- FTTx GPO N with RF Overlay
- FTTx XG(S)PON with RF Overlay
- RFoG
