FWDM blocking filter for Video – 1550nm

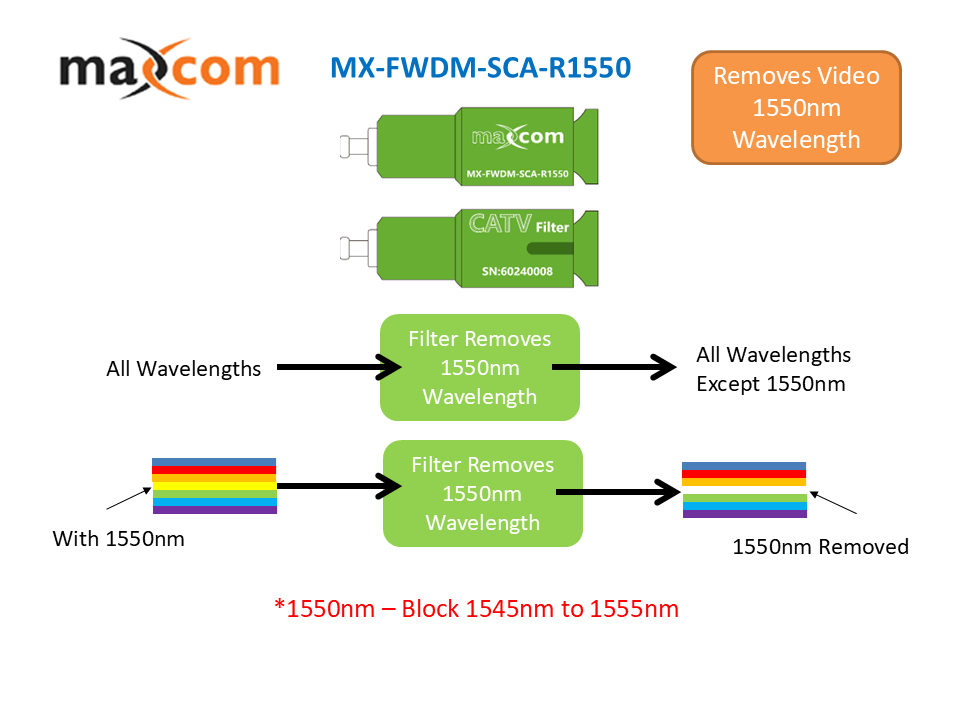

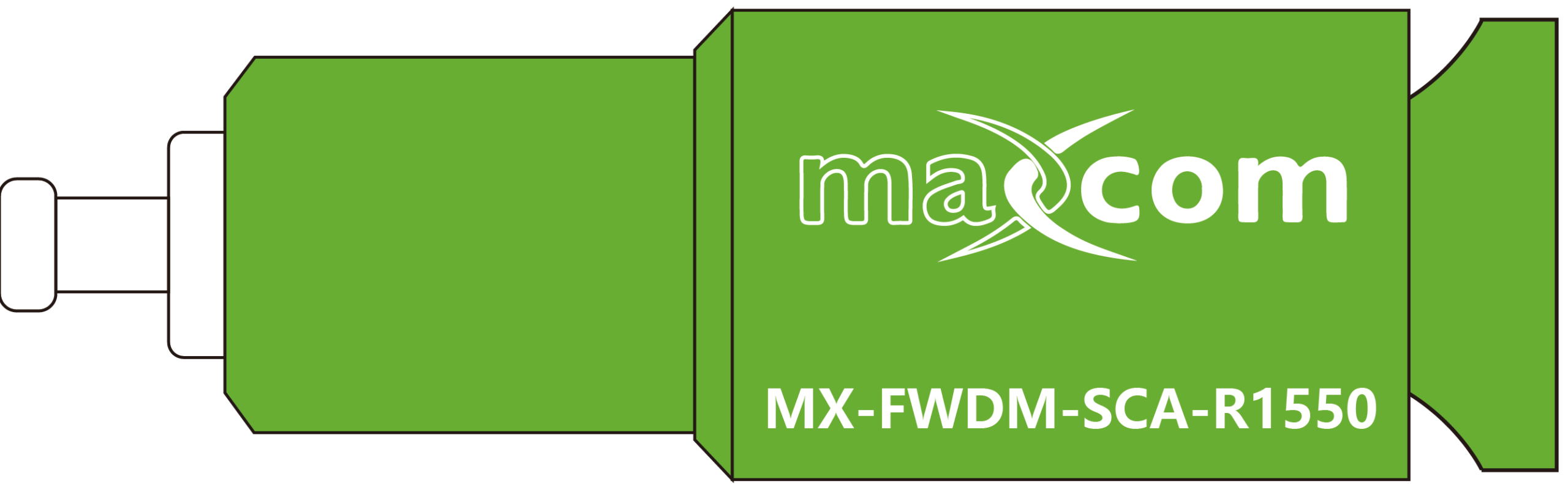

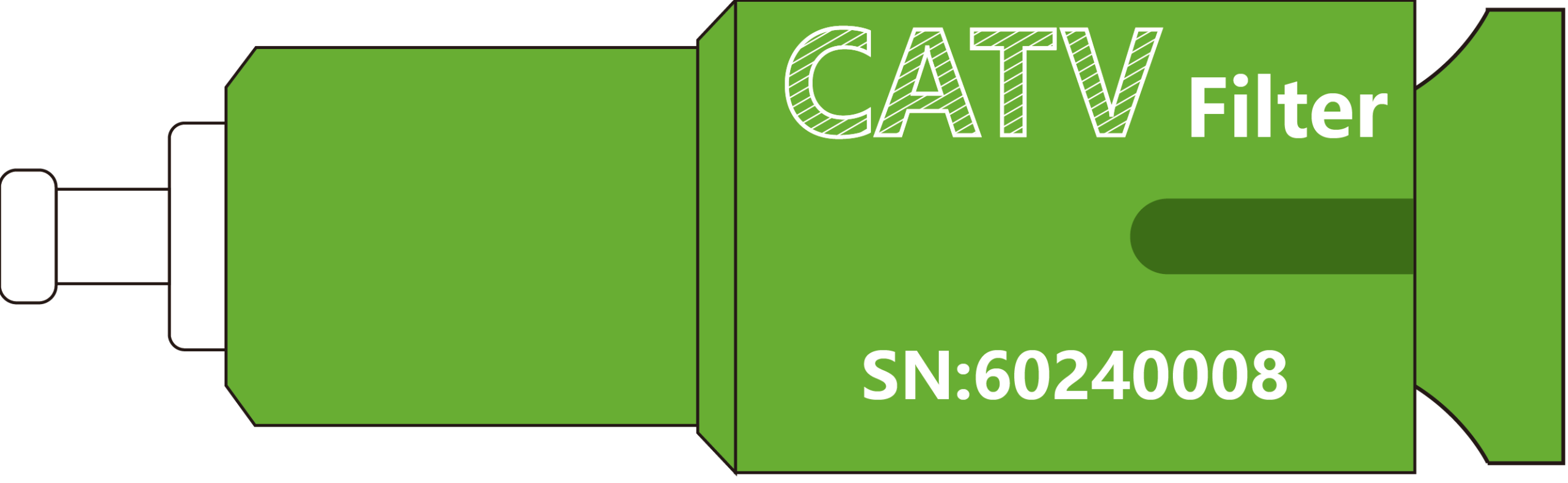

FWDM 1550nm WDM Filter. This SC/APC pluggable filter removes the 1550nm wavelength while allowing all other wavelengths to pass

SKU: MX-FWDM-SCA-R1550 Categories: , ,
  1. General Details

    Maxcom SC Style Pluggable Blocking Filters are made for systems that offer RF Overlays and want to block the 1550nm Video Signal, yet allow G-PON and/or XGS PON (10G/XG-PON) services to pass. This solution is used for fiber to the home/premises (FTTx) with RF Overlay, for a simple, economic, high performance, and compact approach. The blocking filter is easily installed on existing ONU equipment, at the home demark, or elsewhere in the network, to block the 1550nm Video signal RF Overlay from being received by customers.

  2. Example Application

  3. Model Selection

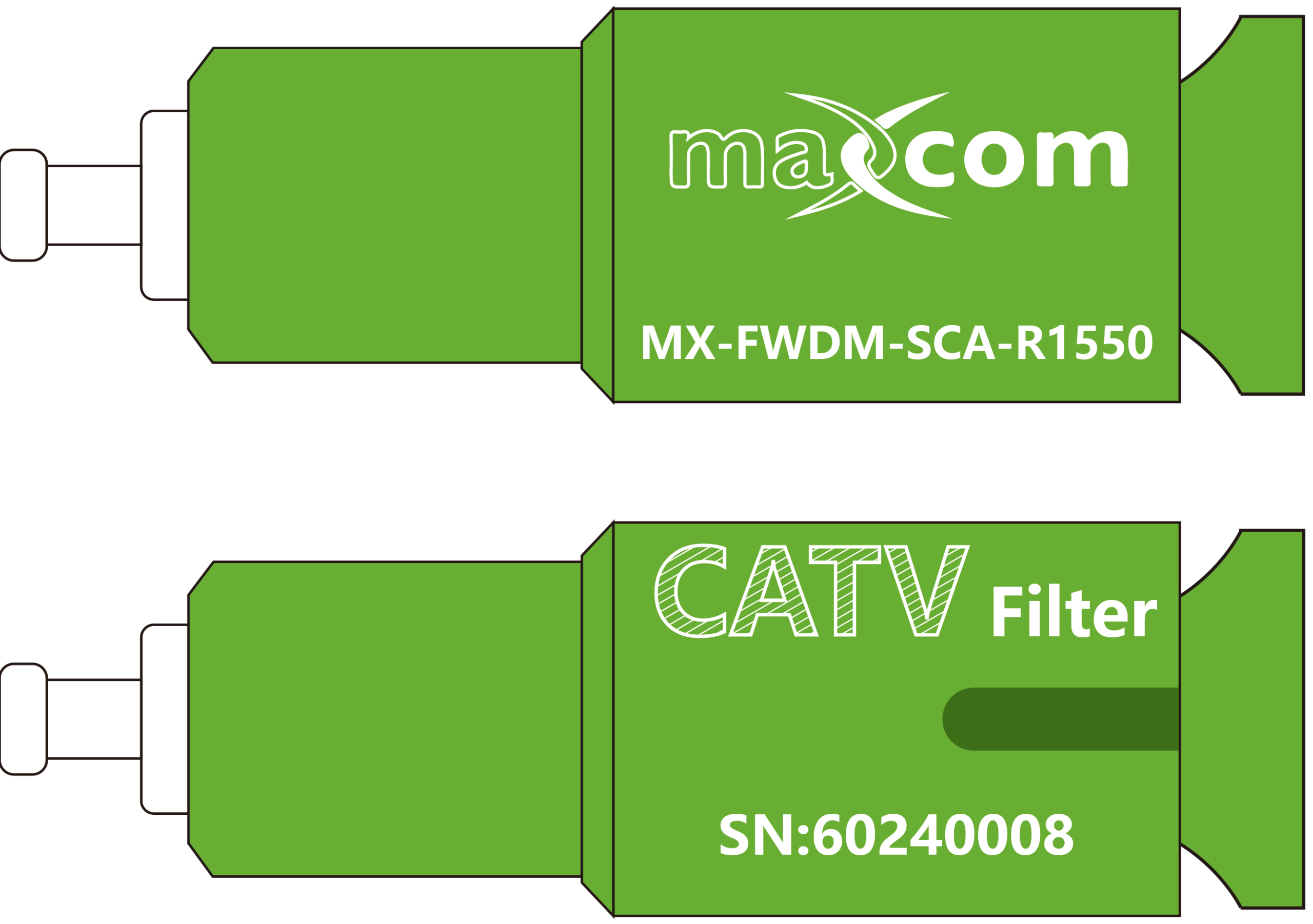

    • MX-FWDM-SCA-R1550 (SC/APC form Factor)
    • *May be customized for any wavelength at customer’s request

    Also available with 1577 XGS-PON filter

  4. Specifications

    Features

    1. Easy to install
    2. Low insertion loss
    3. Environmental stability
    4. Bi-directional

    Applications

    1. FTTx
    2. XG-PON/XS-PON/10G PON
    3. RF Overlays
    4. Block Video 1550nm signals

    Specifications:

    Blocked Wavelength: Block/Filter Center Wavelength    1550 nm     (1545~1555 nm)



    		 Parameter Units Minimum Typical value Maximum Remarks

    Insertion Loss ：

    		 1270nm & 1310nm dB .5 1.2 1.5

    1470nm & 1577nm

    		 dB .5 1.2 1.7
    PDL / PMD dB .2

    0.2 ps

       1550nm Video Signal Attenuation:

    		 1545nm-1555nm dB 25 45
    Maximum Input power：

    		dBm 27



    Durability：

    		 times 500



    Connector :

    SC/APC Male & SC/APC Female
         Application Environment：

    -40℃~+85℃ storage / -5℃~+70℃ operating temperature
