FWDM blocking filter for XGSPON – 1577nm
FWDM 1577nm WDM Filter. This SC/APC pluggable filter removes the 1577nm wavelength while allowing all other wavelengths to pass
- General Details
Maxcom SC Style Pluggable Blocking Filters are made for systems that want to deploy XGSPON (10G/XG-PON) services to their existing GPON network. This solution is used for fiber to the home/premises (FTTx) with a simple, economic, high performance, and compact approach. The blocking filter is easily installed on existing ONU equipment to block the 1577nm XG PON (XGS-PON) signals that could cause interference to their existing GPON or RF Overlay customers.

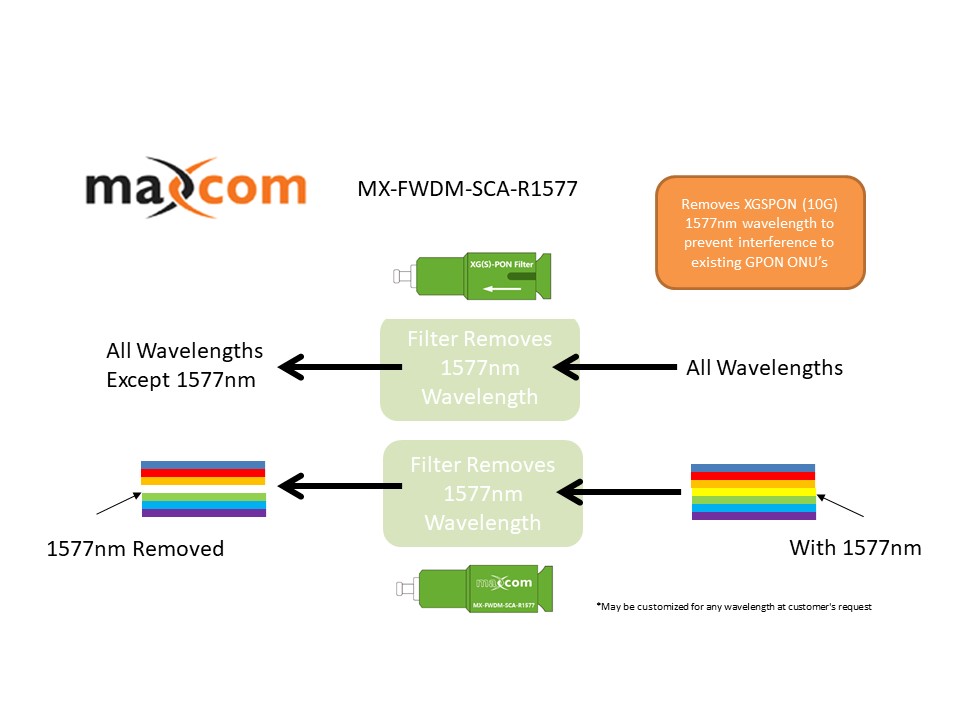

- Example Application
- Model Selection

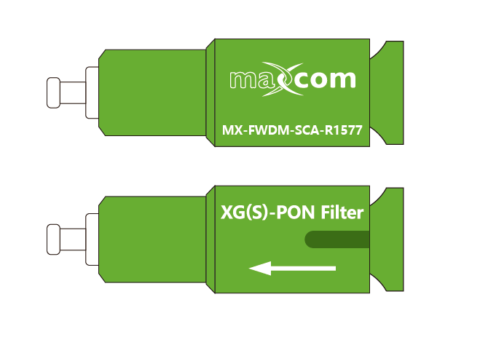

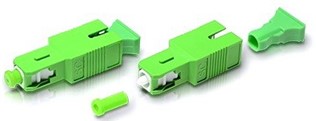

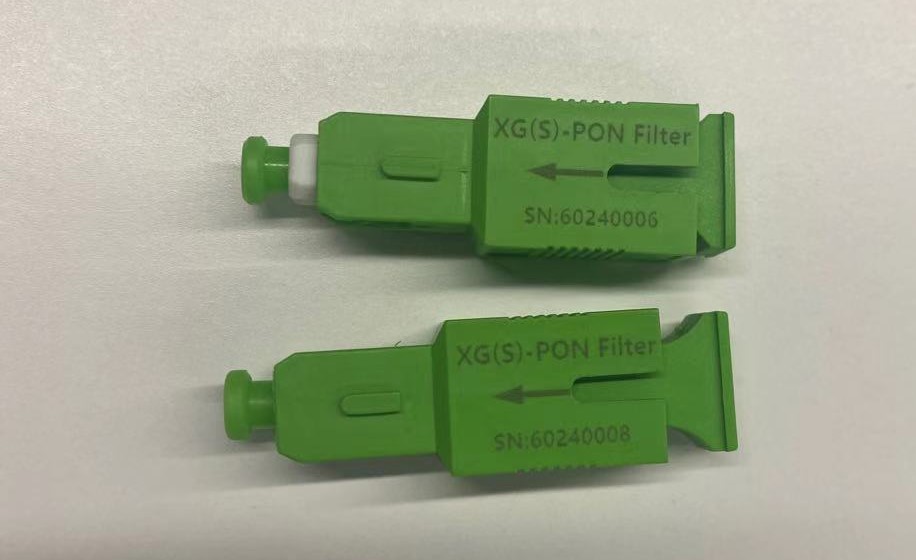

- MX-FWDM-SCA-R1577 (SC/APC form Factor)

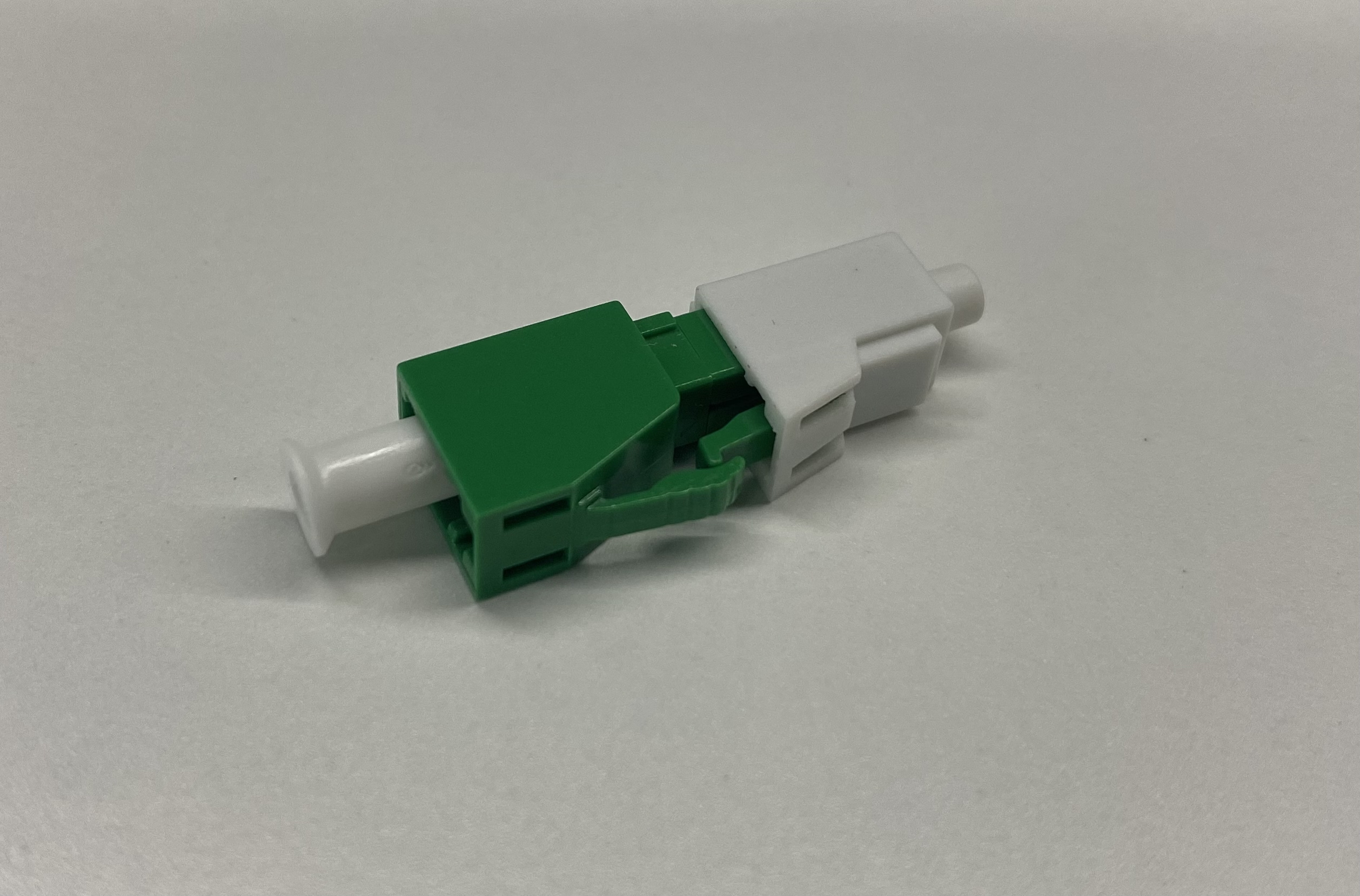

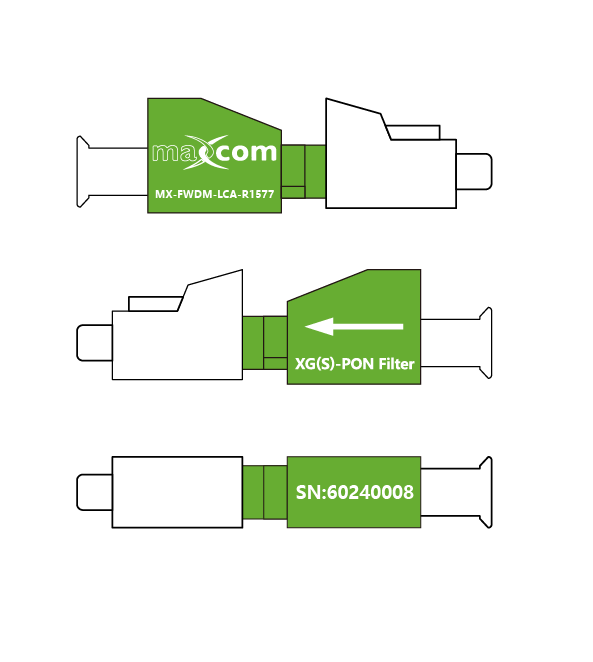

- MX-FWDM-LCA-R1577 (LC/APC form Factor)
- *May be customized for any wavelength at customer’s request
- Specifications
Features
- Easy to install
- Low insertion loss
- Environmental stability
- Bi-directional
- Prevents interference to RF Overlay
Applications
- FTTx
- XG-PON/XGS-PON/10G PON
- Block XG-PON signals
- RF Overlay
Specifications:
Application Wavelength： Block/Filter Center Wavelength 1577 nm 1574~1581 nm
Parameter Units Minimum Typical value Maximum Remarks Insertion Loss ：
1290nm-1310nm dB 0.8 1.2 1.7 1480nm-1550nm dB 0.8 1.5 1.7 1550nm-1560nm dB 0.8 1.5 1.7 PDL / PMD dB .2 0.2 ps Return Loss：
1290nm-1310nm dB 30 1480nm-1550nm dB 30 1550nm-1560nm dB 45 Maximum Input power： dBm 27 Durability： times 500 Connector : SC/APC Male & SC/APC Female (Optional LC/APC) Application Environment： -40℃~+85℃ storage / -5℃~+70℃ operating temp - Order Inquiry
