High Output FTTx Fiber Optic Receiver

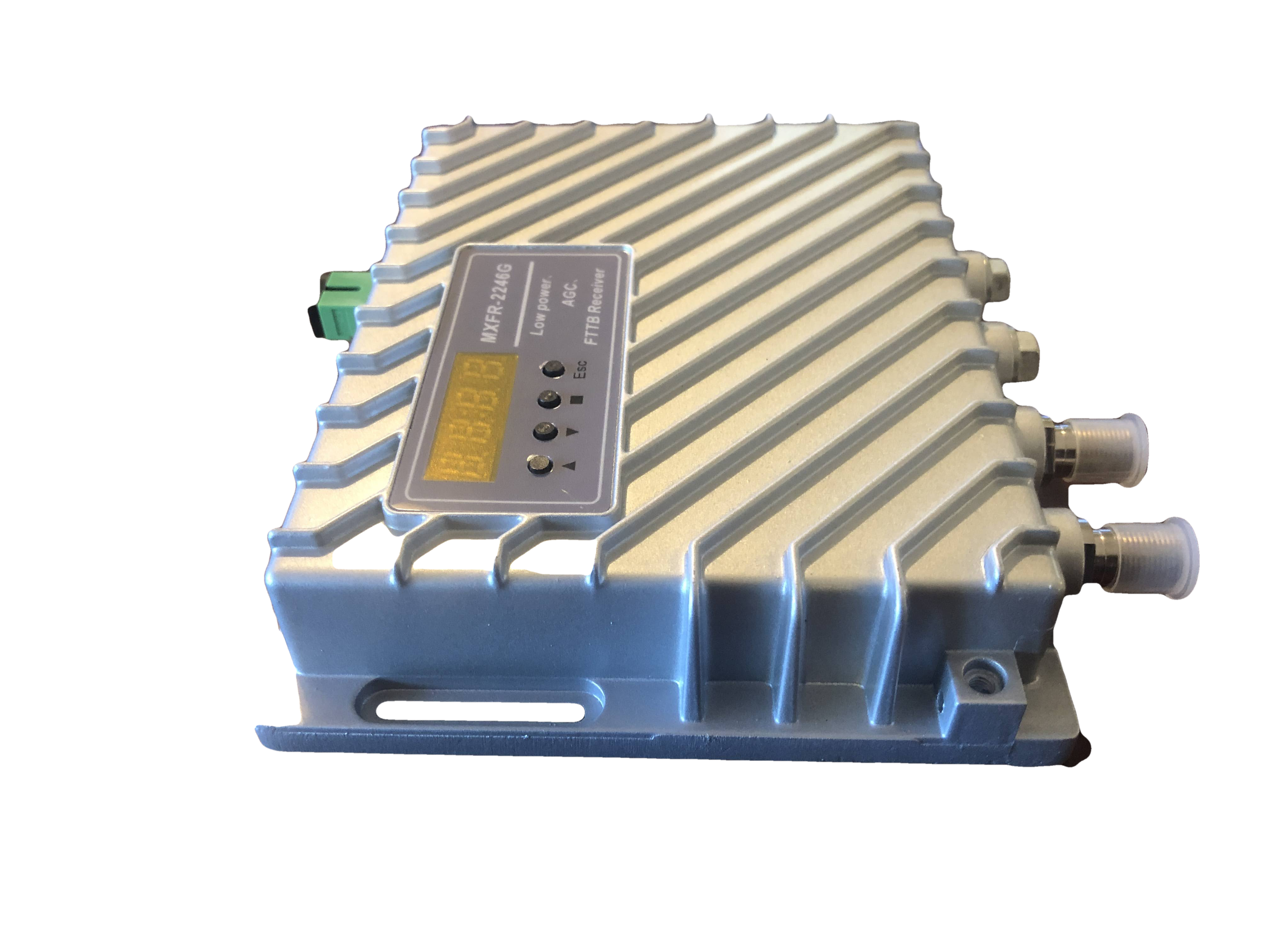

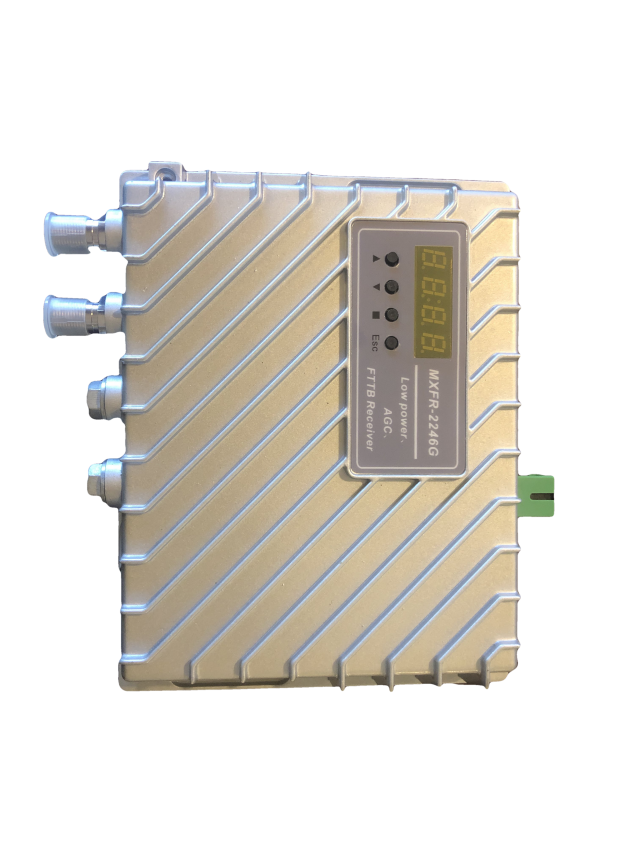

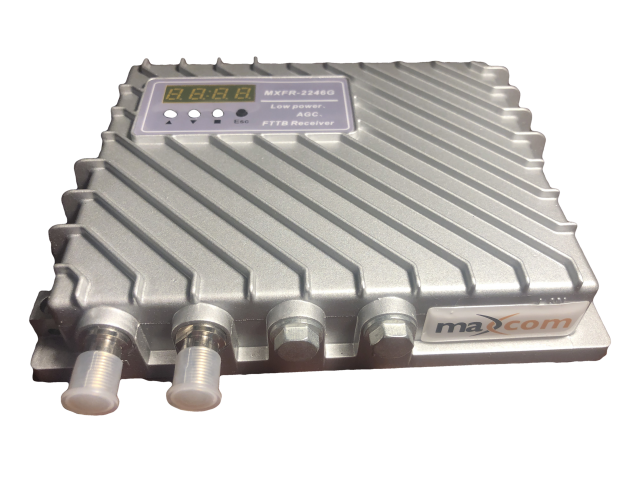

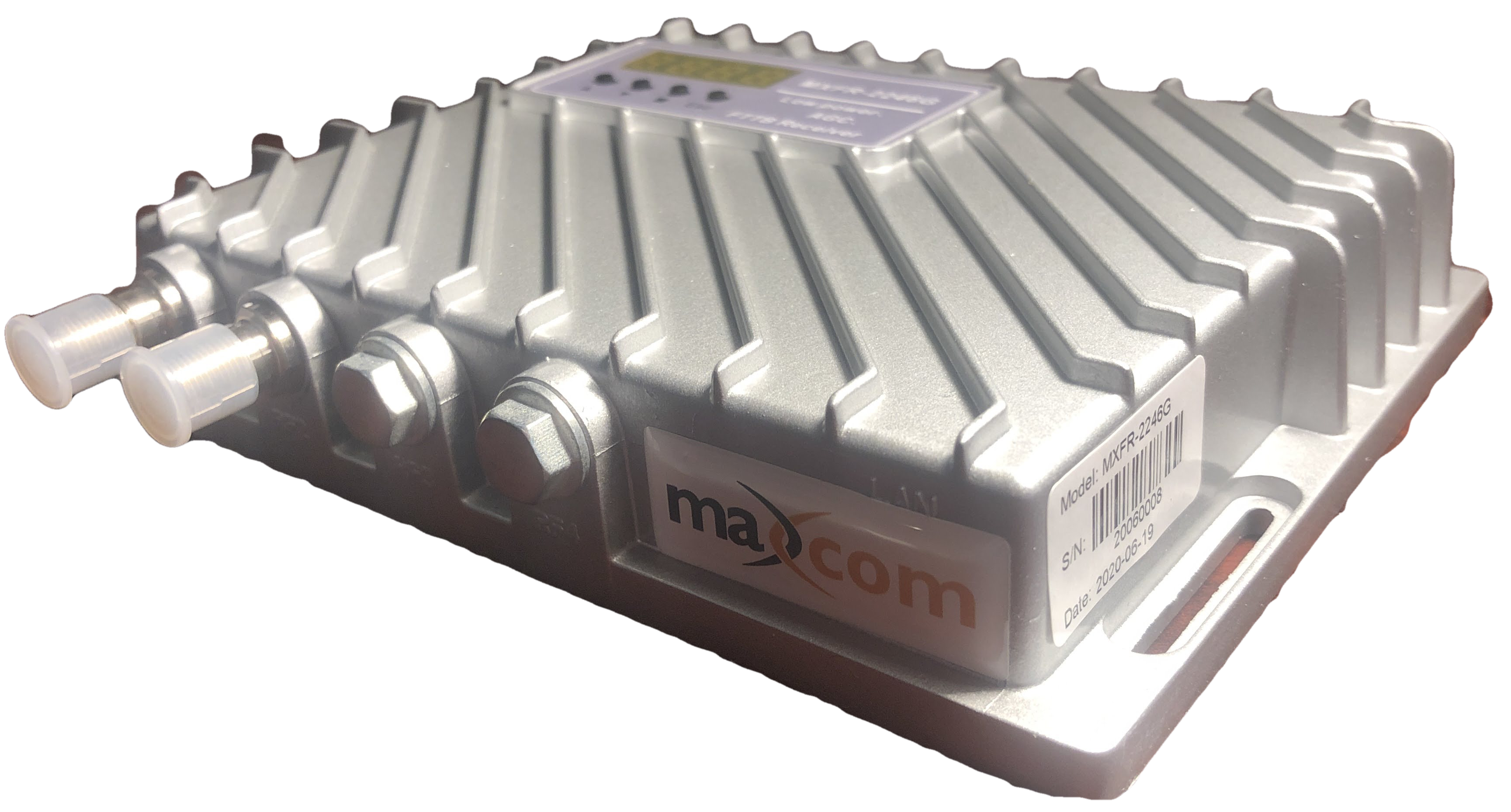

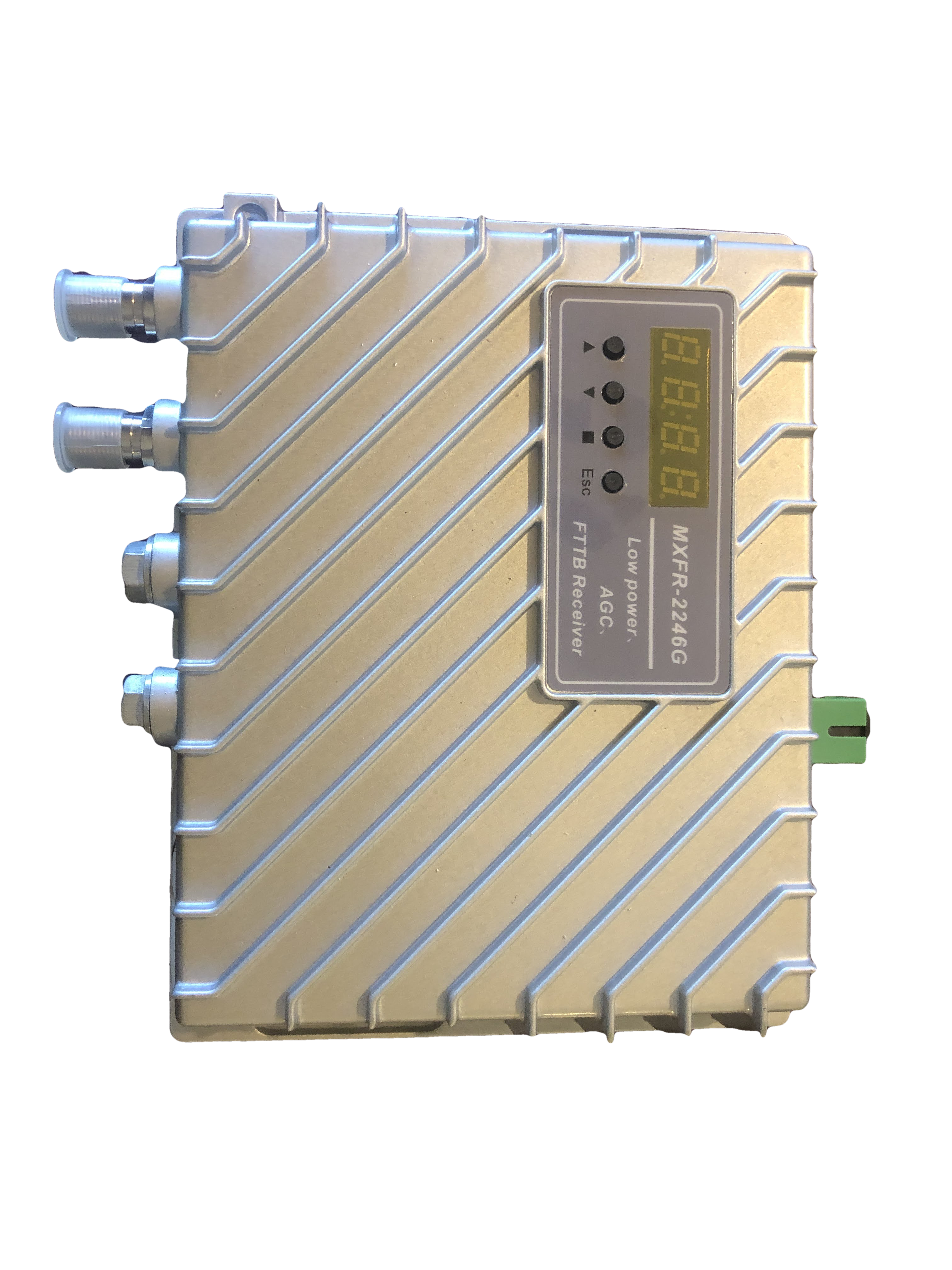

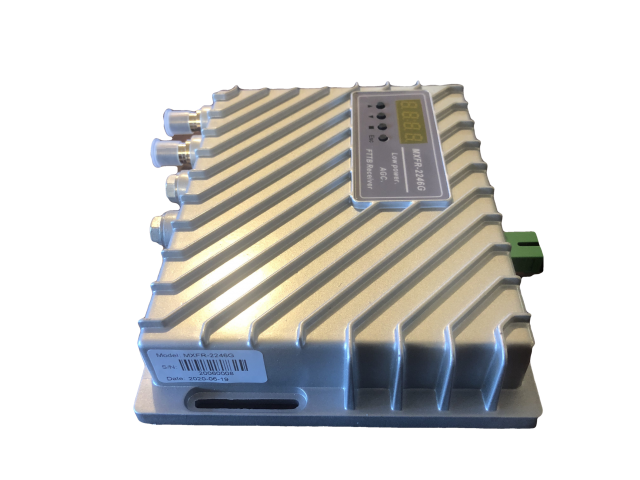

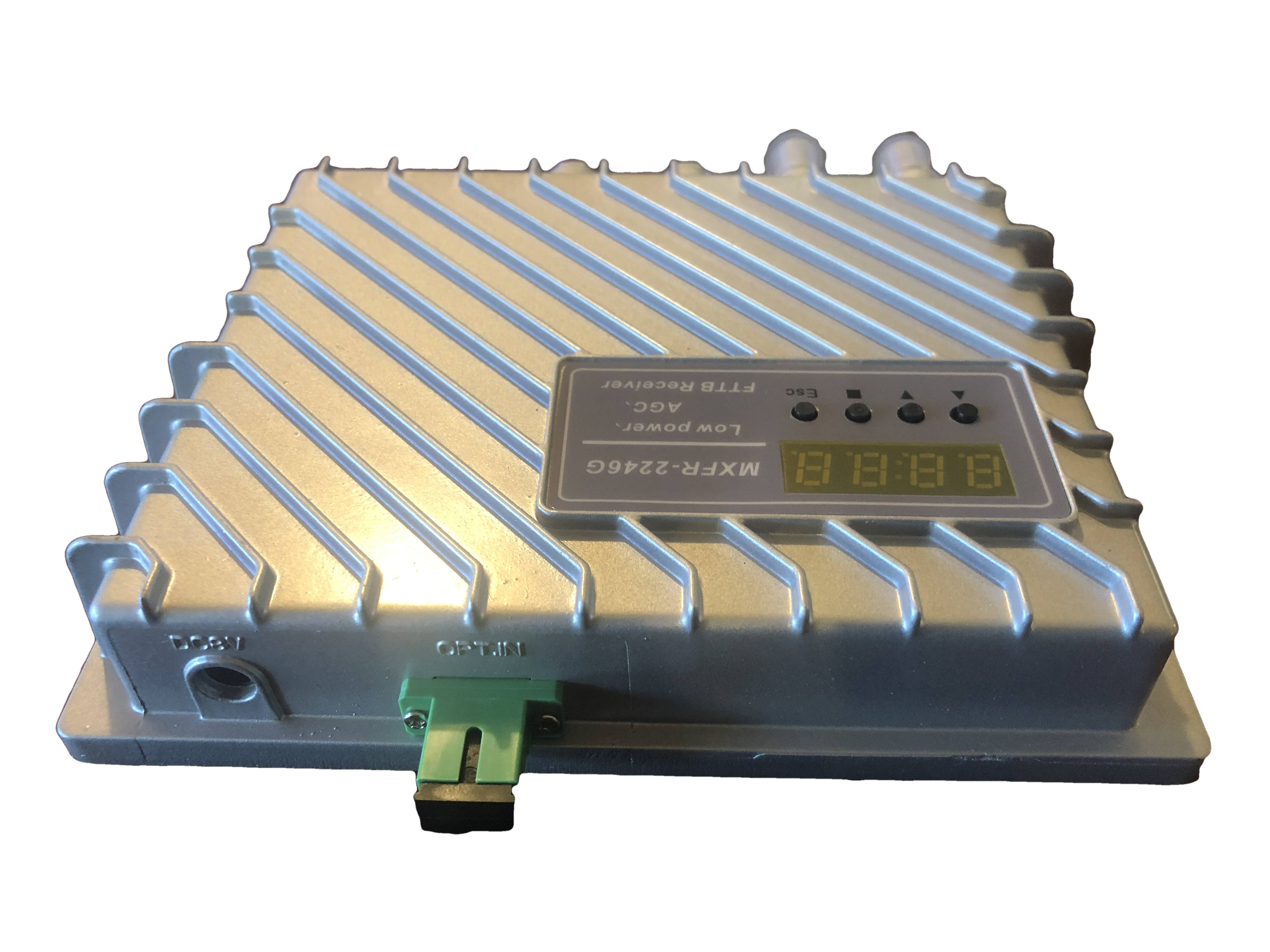

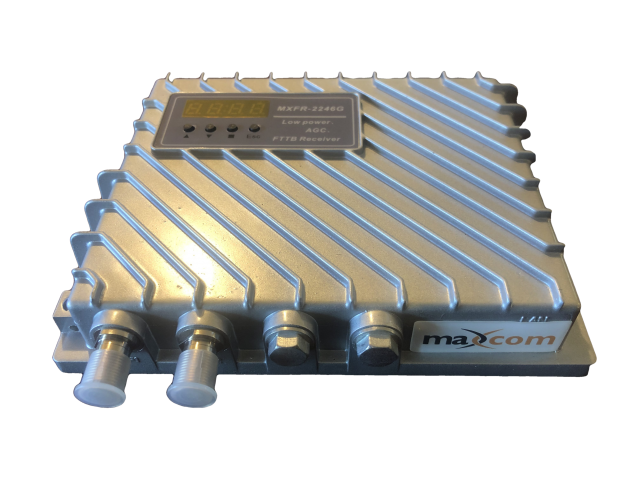

The MXFR-2246G is a Fiber Optics Receiver used to convert a fiber optic connection to RF (coax output).
- General Details
The MXFR-2246G is a Fiber Optics Receiver used to convert a fiber optic connection to RF (coax output). The MXFR-2246G CATV Fiber Optic receivers are designed for high reliability with optical AGC, high level RF output, ease of use, easy to read LED indicators, adjustable gain and EQ from control panel (no need to carry pads and equalizers).

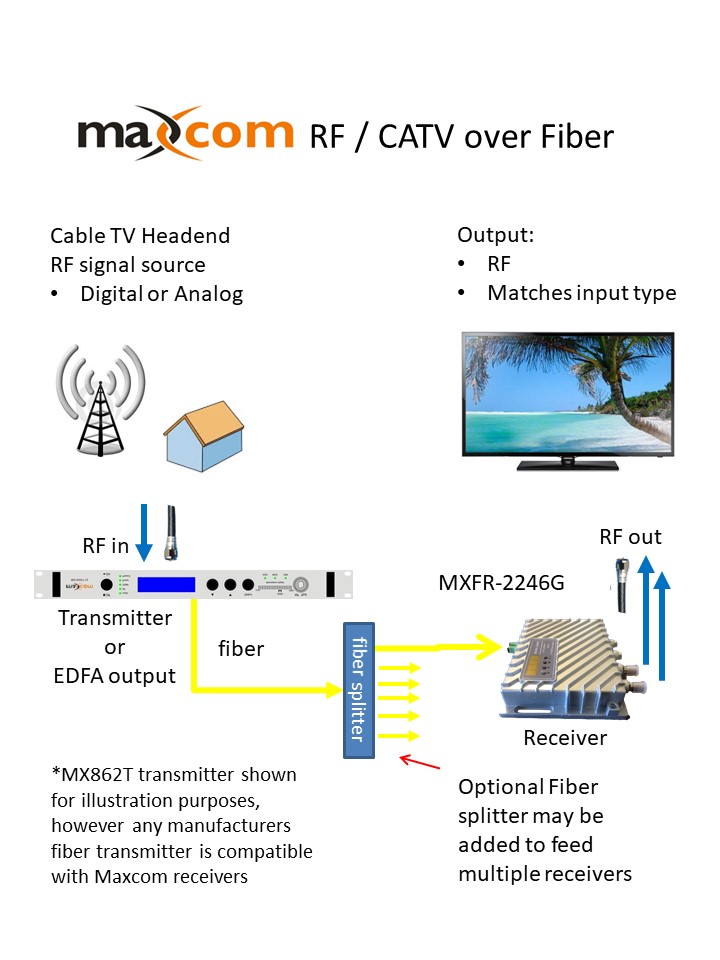

- Example Application
- Model Selection
- MXFR-2246G – Dual High Output FTTx Fiber Optic Receiver +41 dBmV (standard in-stock item)
- MXFR-2150G – Single High Output FTTx Fiber Optic Receiver +45 dBmV
- MXFR-2442G – Quad High Output FTTx Fiber Optic Receiver +38 dBmV
- Specifications
PRODUCT FEATURES
- • RF bandwidth: 47~1050MHz
• AGC feature: Pin:–7.0dBm~+2dBm,ΔVo : ≤±0.5dB
• Low noise(3.8% modulation, -8dBm receive, CNR≥46dB)
• High level output – Dual +41 dBmV (average QAM RF level)
• Output level(Vo)and slope(EQ)may be adjusted (By 1dB step)

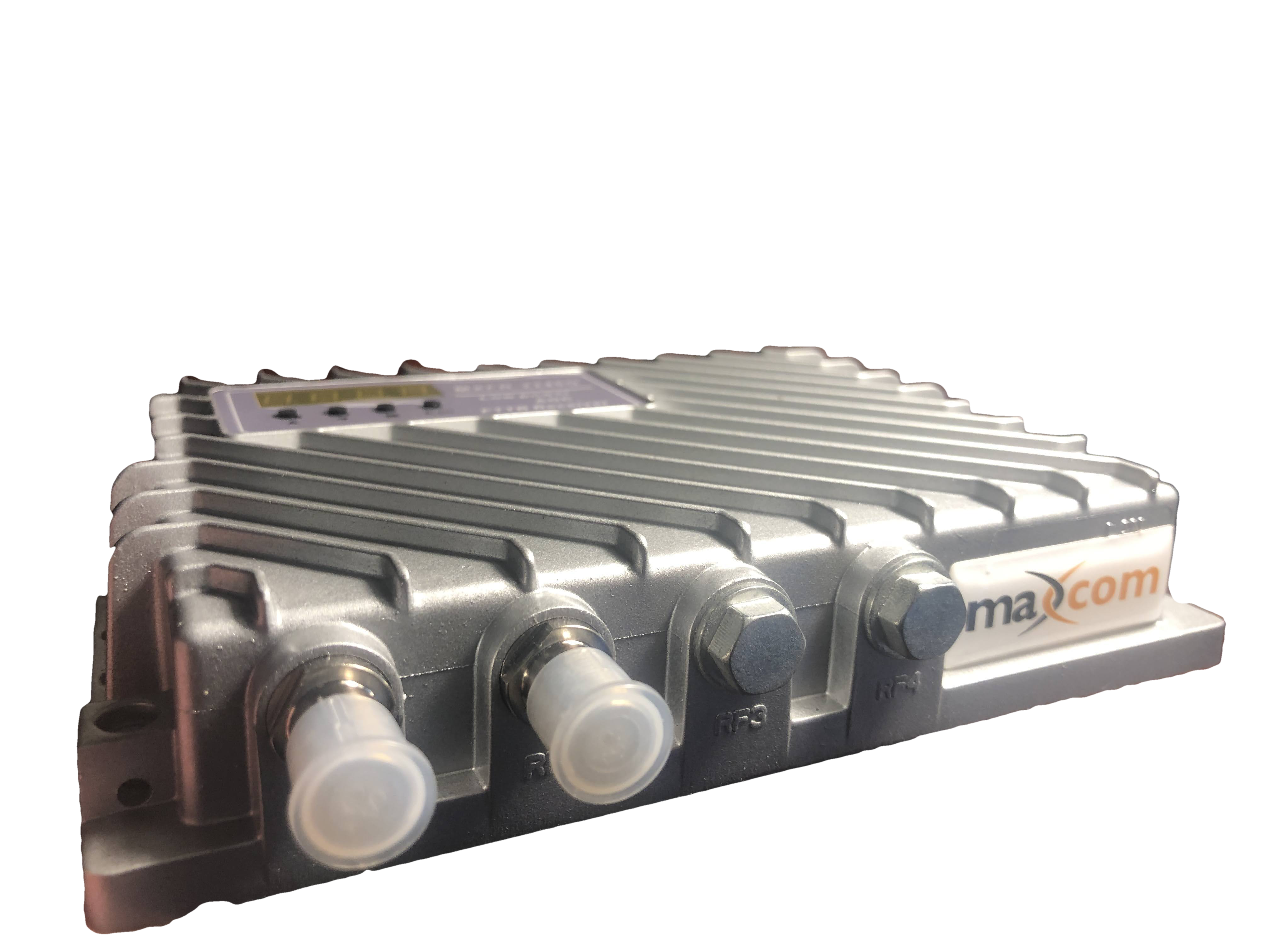

• RF output port: standard 2 output ports, 1 and 4 port models are optional
• SNMP network management is optional, allowing the operator to achieve remote management and control

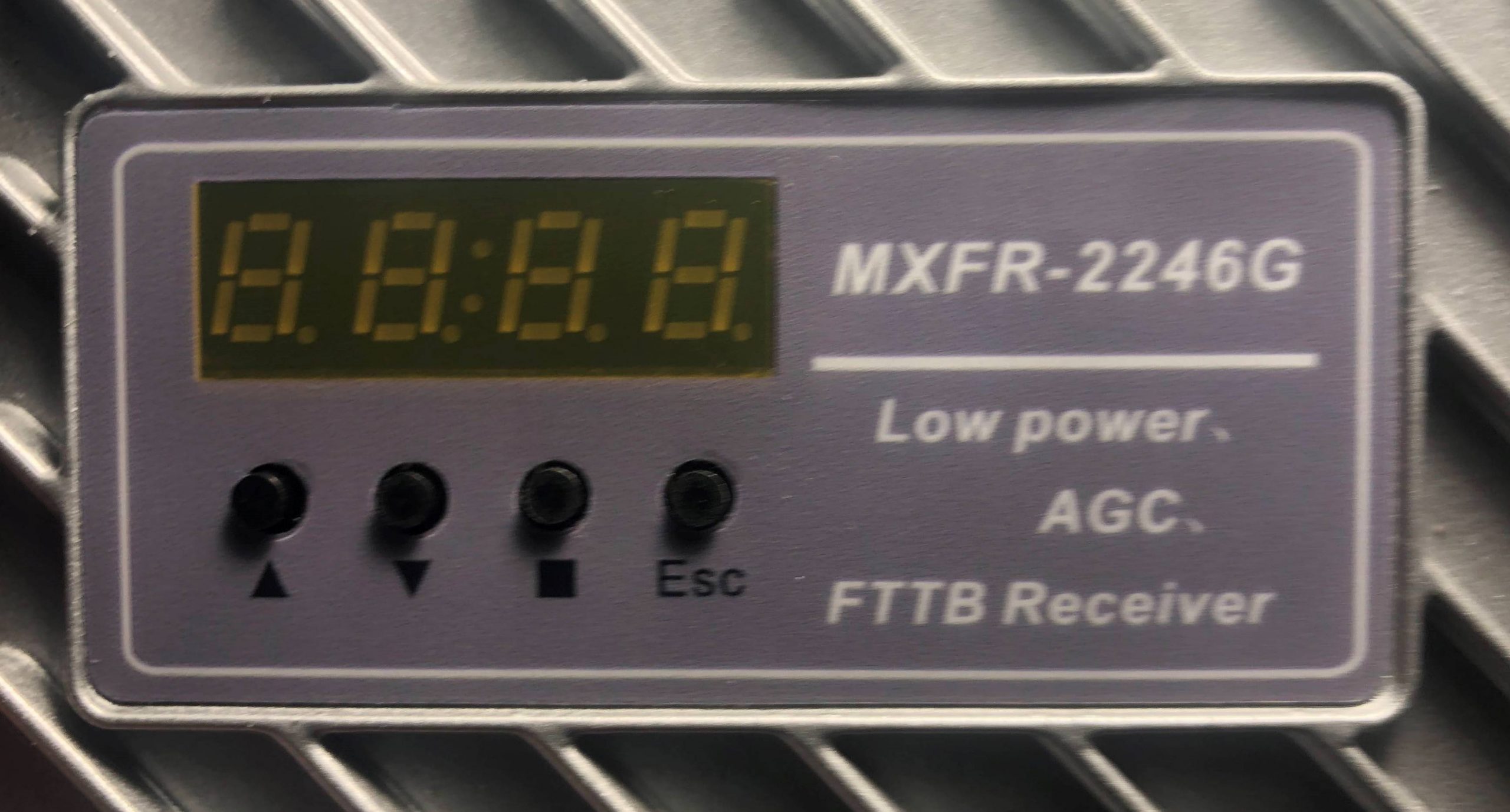

• LED screen display’s technical parameters
• Adapts MMIC Amplifier, low power consumption <6W
The MXFR-2246G is a high performance, and high output optical receiver. The receiver comes equipped with built in RF interstage gain adjustment and equalization/slope control (no pads or EQ’s required). Adjustments may be made via LED display screen and control buttons. The receiver provides great flexibility and may be used in any FTTx application. The receiver offers excellent performance and P/P ratio. Accepts wavelengths between 1260~1620nm Used in CATV system with digital or analog TV channels
Please download the spec sheet for additional details.
- • RF bandwidth: 47~1050MHz
