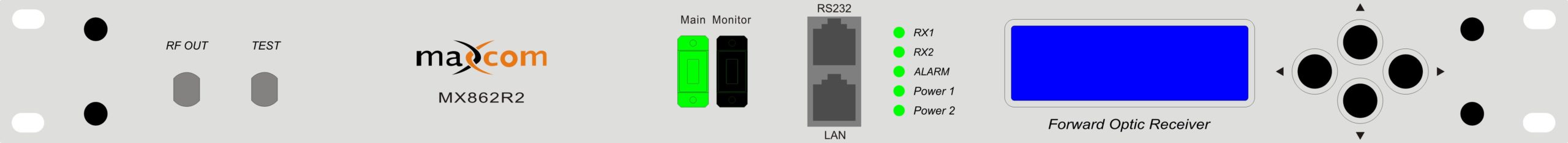

CATV Fiber Optic Receiver
The MX1000R is a Fiber Optics Receiver used to convert a fiber optic connection to RF (coax output).
- General Details
The MX1000R is a Fiber Optics Receiver used to convert a fiber optic connection to RF (coax output). The MX1000R CATV Fiber Optic receivers are designed high reliability with optical AGC, high level RF output, ease of use, easy to read LED indicators, and suitable for high-level applications.
- Example Application
- Model Selection
- MX1000R2 – CATV Fiber Optic Receiver with +53 dBmV RF output
- MX1000R-36 – CATV Fiber Optic Receiver with +36 dBmV RF output
- Specifications
OPTIC FEATURE
- Wavelength: Typical 1310 / 1550 (nm) *will operate with any wavelength between 1270~1650nm
- Input Power: -5~+3 (dBm)
- Operating Mode: Optical AGC
- Return Wave Loss: >=55 (dB)
- Optical Connector: SC/APC
RF FEATURE
- Bandwidth: 45~1000 (Mhz) optional 1200MHz
- Output Level:
- Model MX1000R2: 53 (dBmV) NTSC
- Model MX1000R-36: 36 (dBmV) NTSC
- Flatness: <=+-0.5 (dB)
- Output Level Adjustable: 0~20 (MGC)(dB)
- Reflect Loss: >-16 (750Mhz)(dB)
- Output Impedance: 75 (Ohms)
LINK FEATURE
- Test Channel: NTSC-D/79ch
- CNR: >=52(10Km fiber, -1dBm receive)(dB)
- CTB: <=-70 (dB)
- CSO: <=-63 (dB)
OPTICAL WAVELENGTH
- Any, typical 1310 +/- 20nm : 1550 +/- 20nm
GENERAL FEATURE
- Newtork Management Interface Option: RJ45, RS232 (Supports IE and SNMP)
- Power Supply: 110VAC (V) (Optional -48VDC)
- Power Consume: <-50 (Single Power Work)
- Work Temp.: -5~65 (Automatic Temp Control)
- Storage Temp.: -40~85 (C)
- Relative Humidity: 5~59 (%)
- Size (W)x(D)x(H): 19x10x1.75 (“) or 483x254x44 (mm)
