Line Powering Option for Optical Nodes
CATV Line Powered Converter - Used to Convert Typical CATV Power (60~90 VAC) to a Low DC Voltage allowing the Operator to Power a Small Optical Node with RG-6 Coax up to 450 feet or 150 meters away.
- General Details
The Maxcom RLPS-Series Remote Line Powered Converter is a compact, rugged power supply designed to reuse installed HFC coaxial infrastructure to support new optical devices at the premises. It allows the operator to make use of Cable Line Power from existing coaxial plant by extracting available CATV line power (such as 60 or 90 VAC), and converting it to low DC voltage enabling safe passage of DC power over coax drop cables such as RG-6 to the optical node. Its RF pass-through capability enables efficient deployment while maintaining dependable power delivery in demanding environments.
Features
- Rugged enclosure: Die-cast waterproof housing for field reliability
- Supports Long Distance: Nodes can be powered over RG-6 from 300 feet (100 meters)
- Efficient integration: Designed for reuse of existing coaxial infrastructure, avoids high costs of electrical connections to the utility network
- Optional RF pass-through: Supports combined power and RF distribution applications
- Strand or Ped mountable: Provides flexibility for outdoor mounting to Strand or Ped

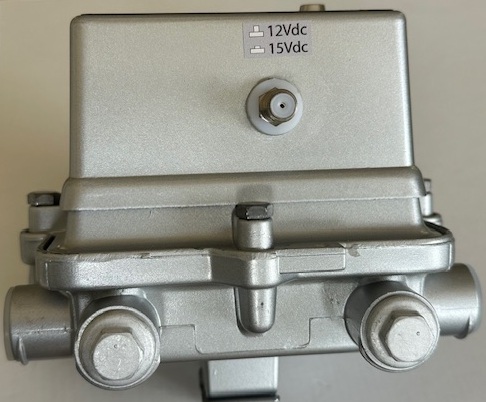

- Galvanic Isolated DC output F-port: Provides electrical ground isolation between HFC coaxial networks and the premises location

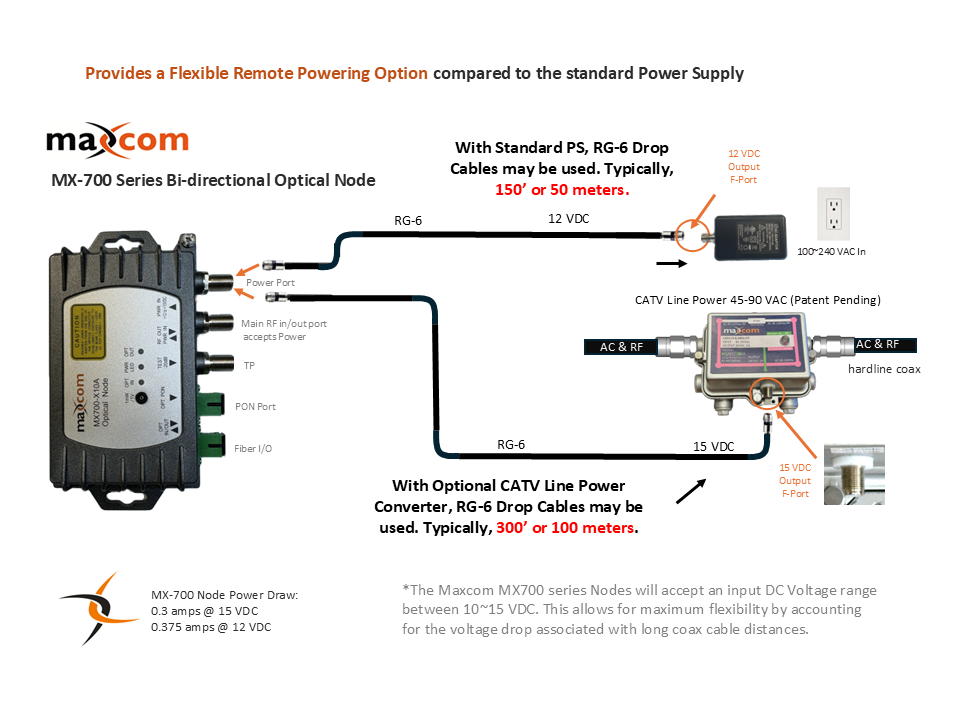

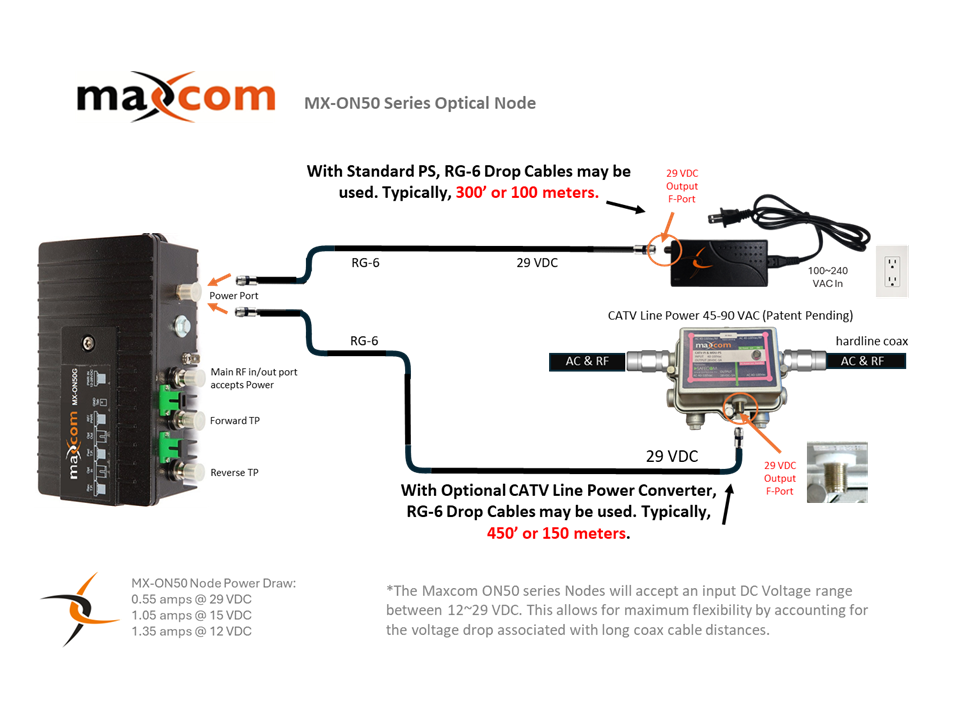

- Example Application
- Model Selection
2 Models available. Choice of Model is based on Optical Node Model:

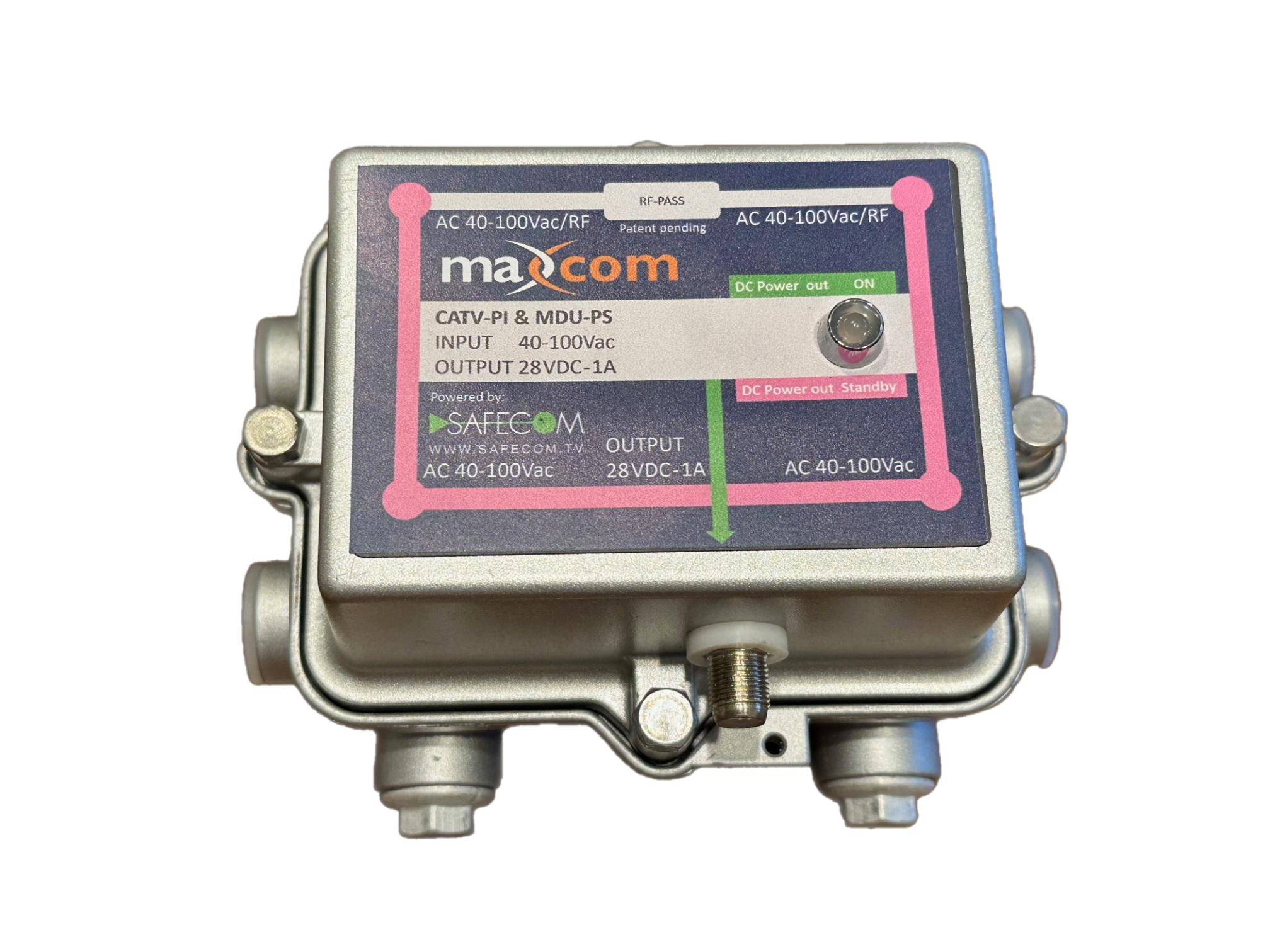

- MXON50-RLPS-29-R (Used to remotely power the Maxcom MXON50 Series Optical Node)

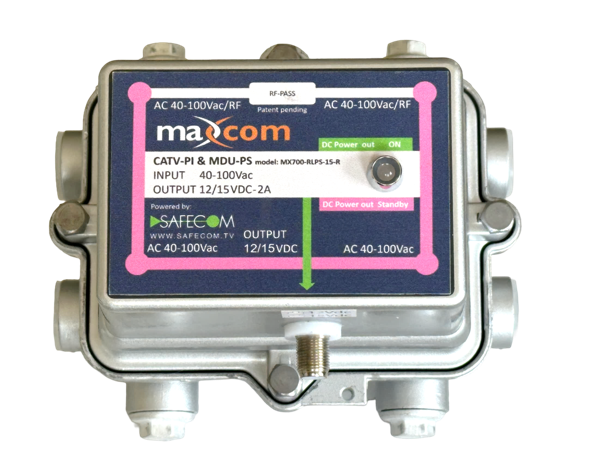

- MX700-RLPS-15-R (Used to remotely power the Maxcom MX700 Series Optical Node)

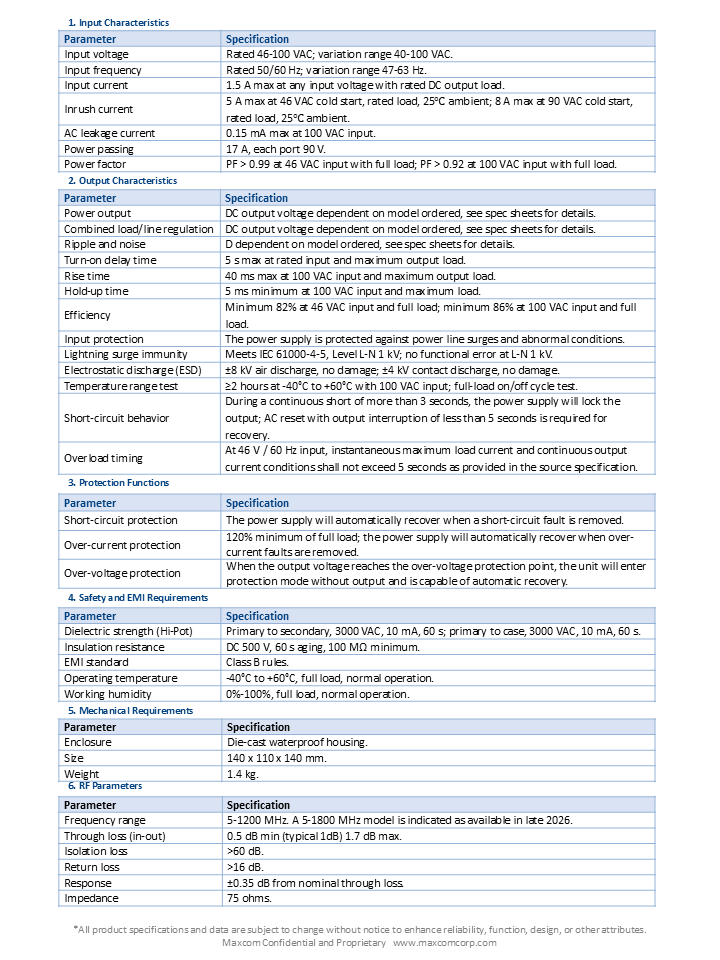

- Specifications
- Order Inquiry
- Documents
