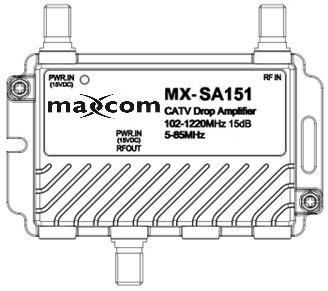

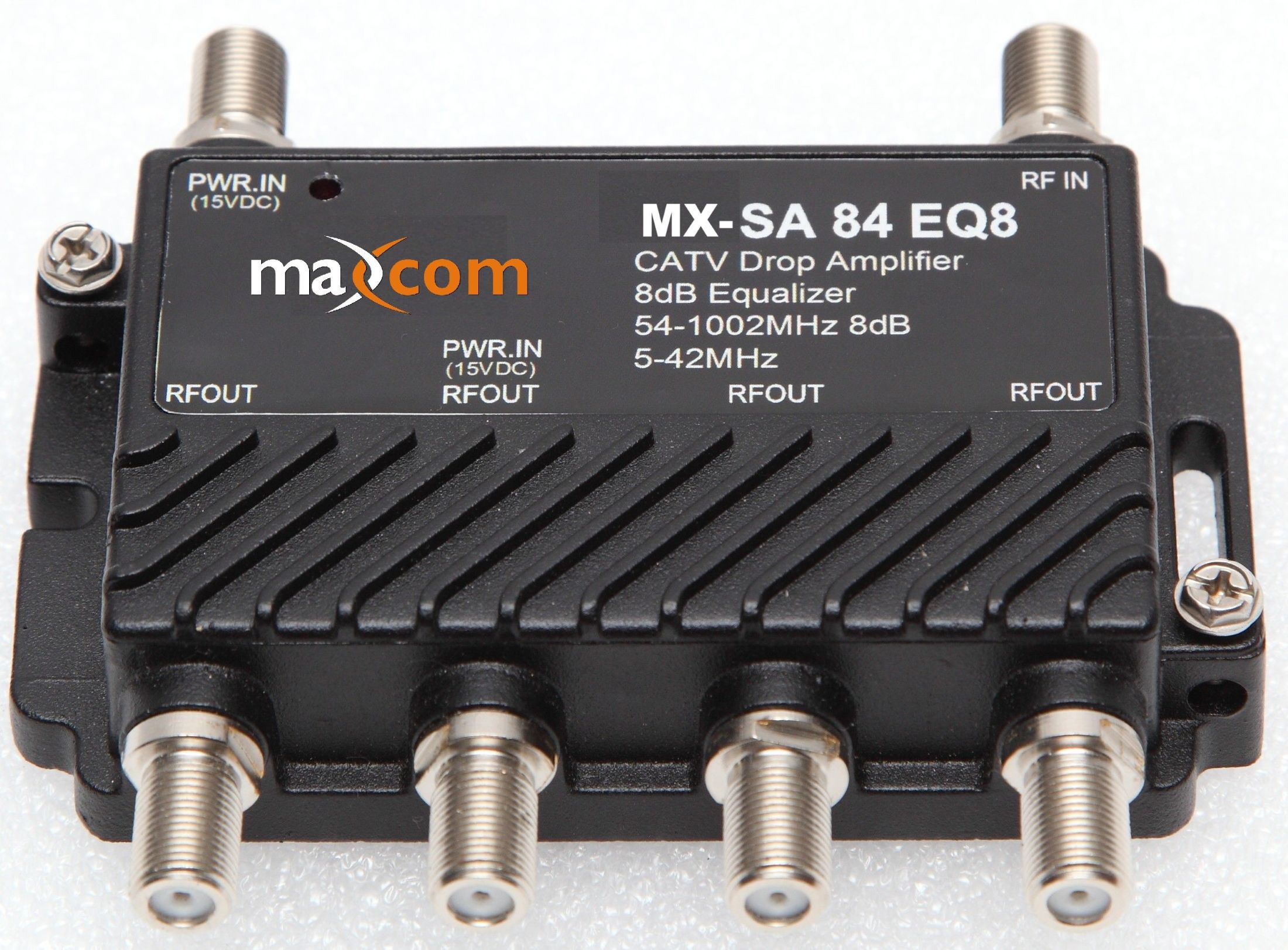

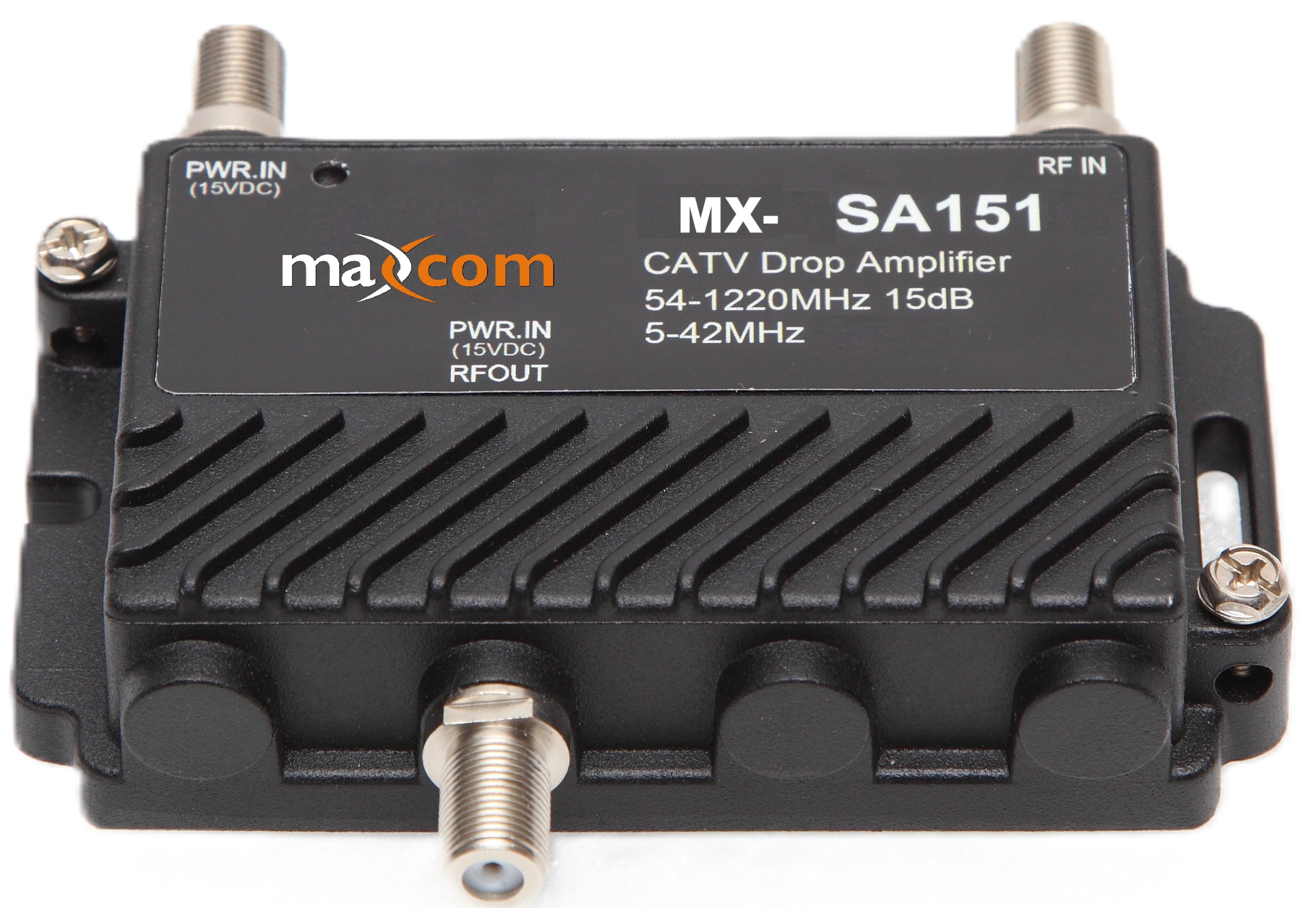

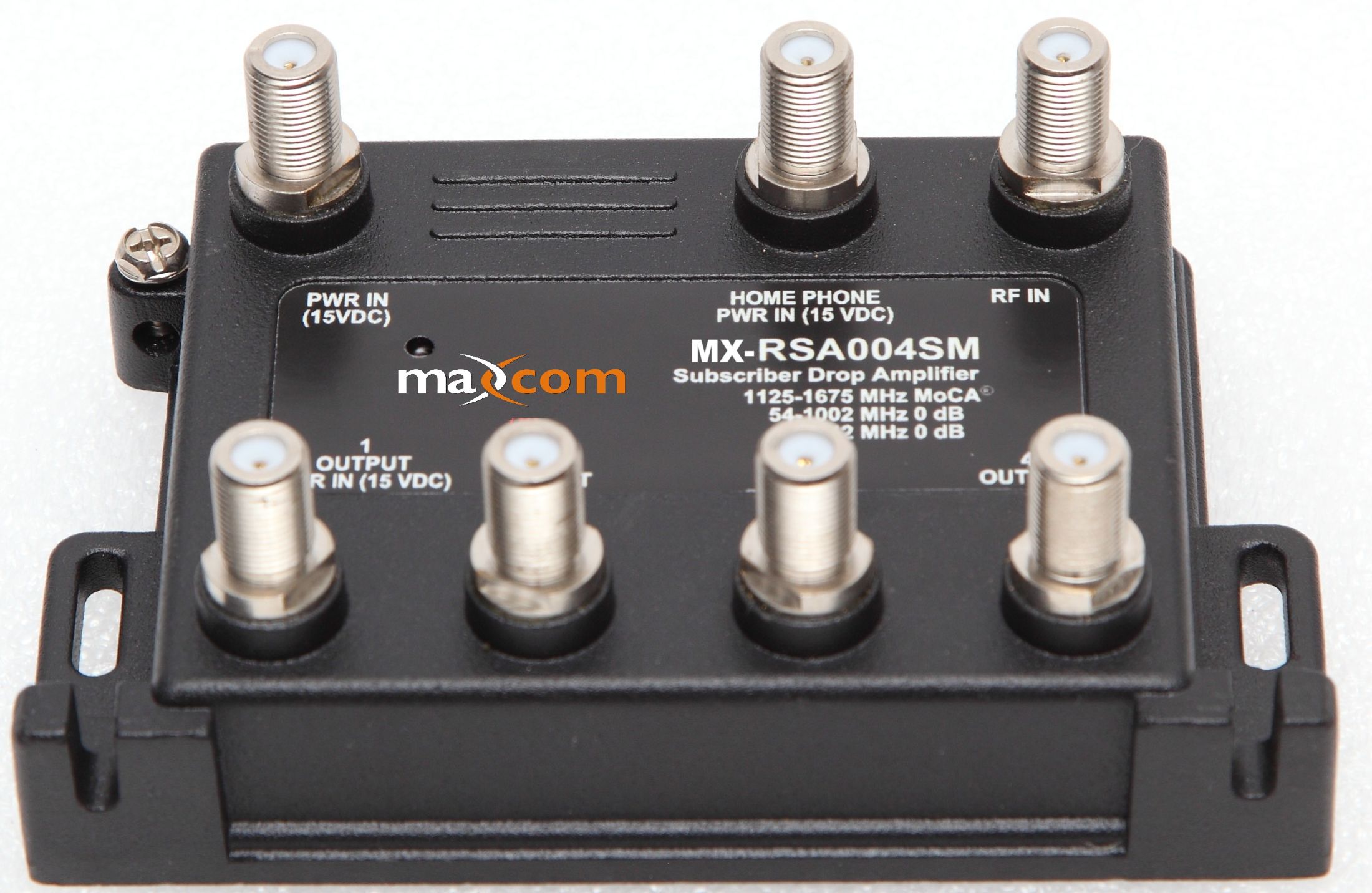

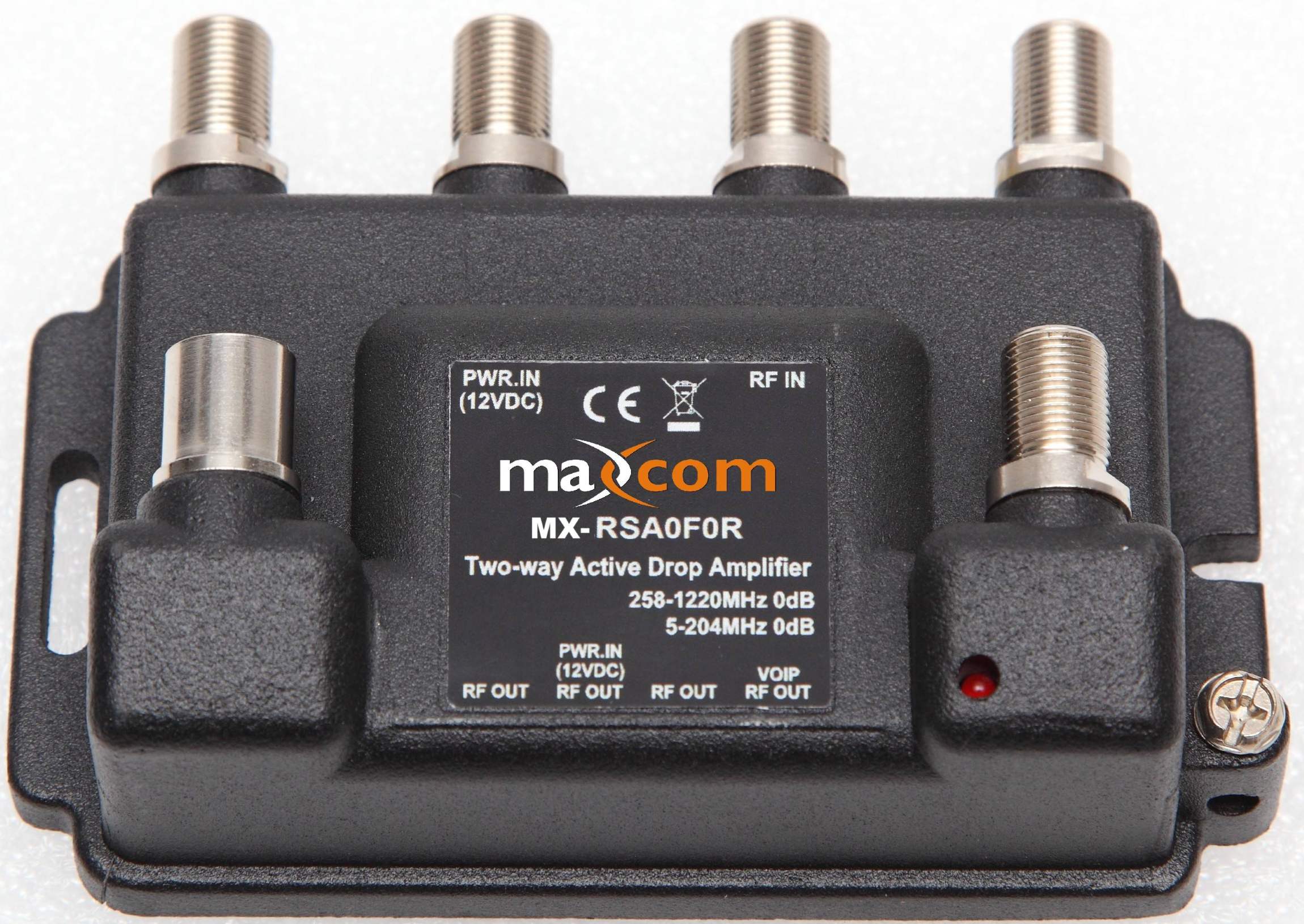

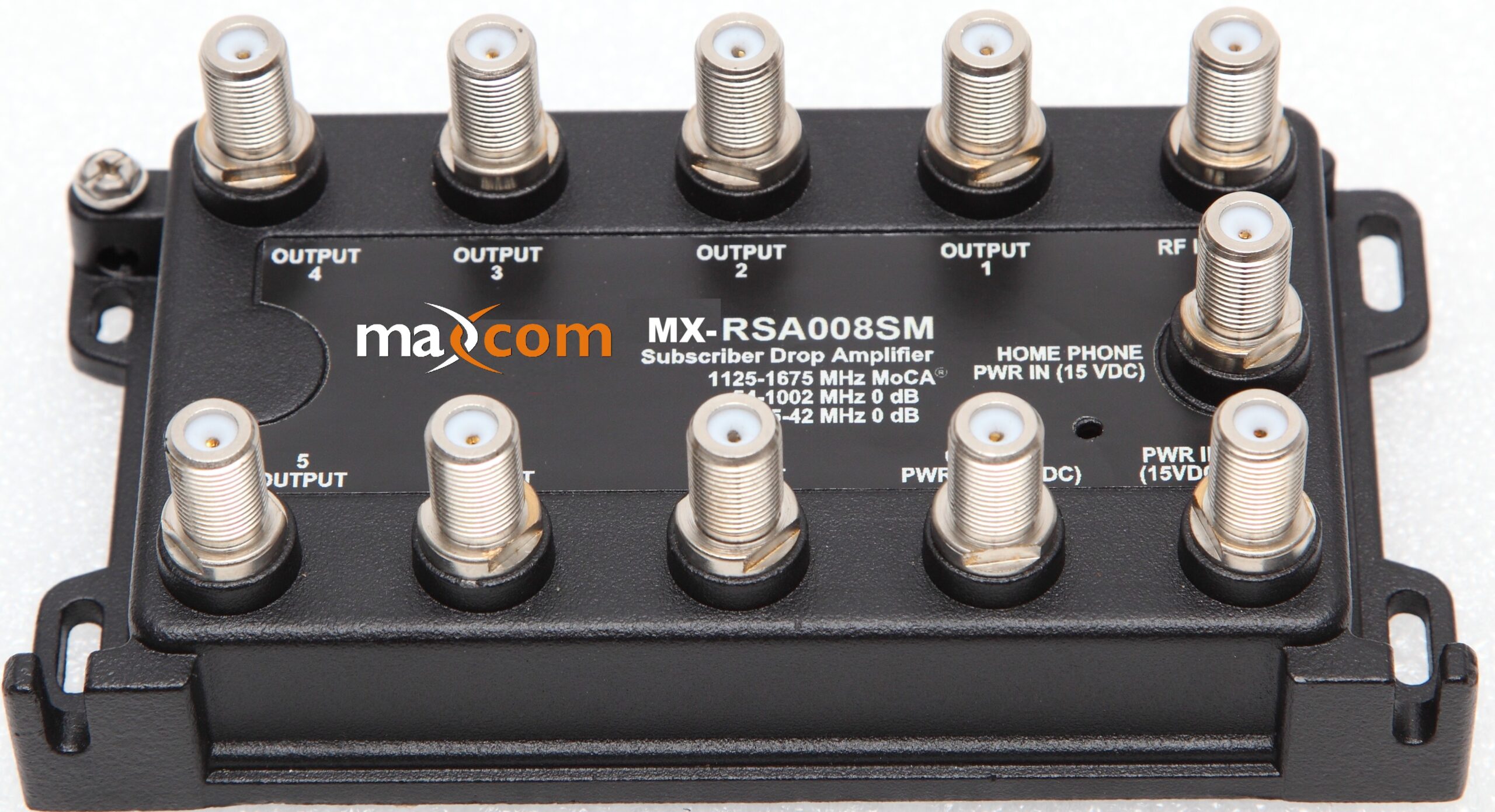

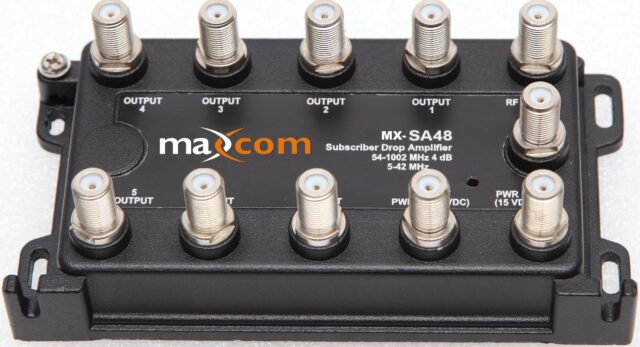

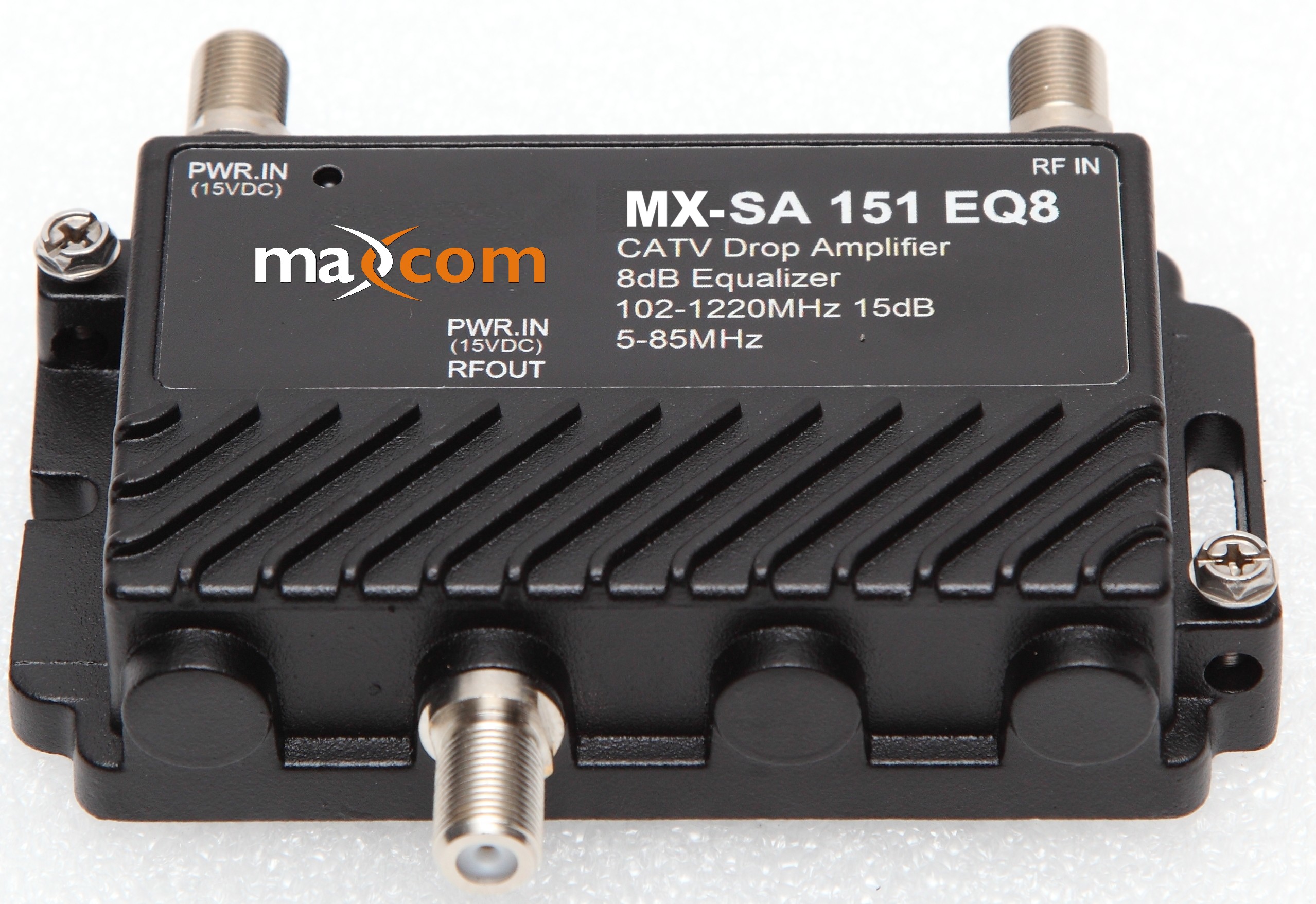

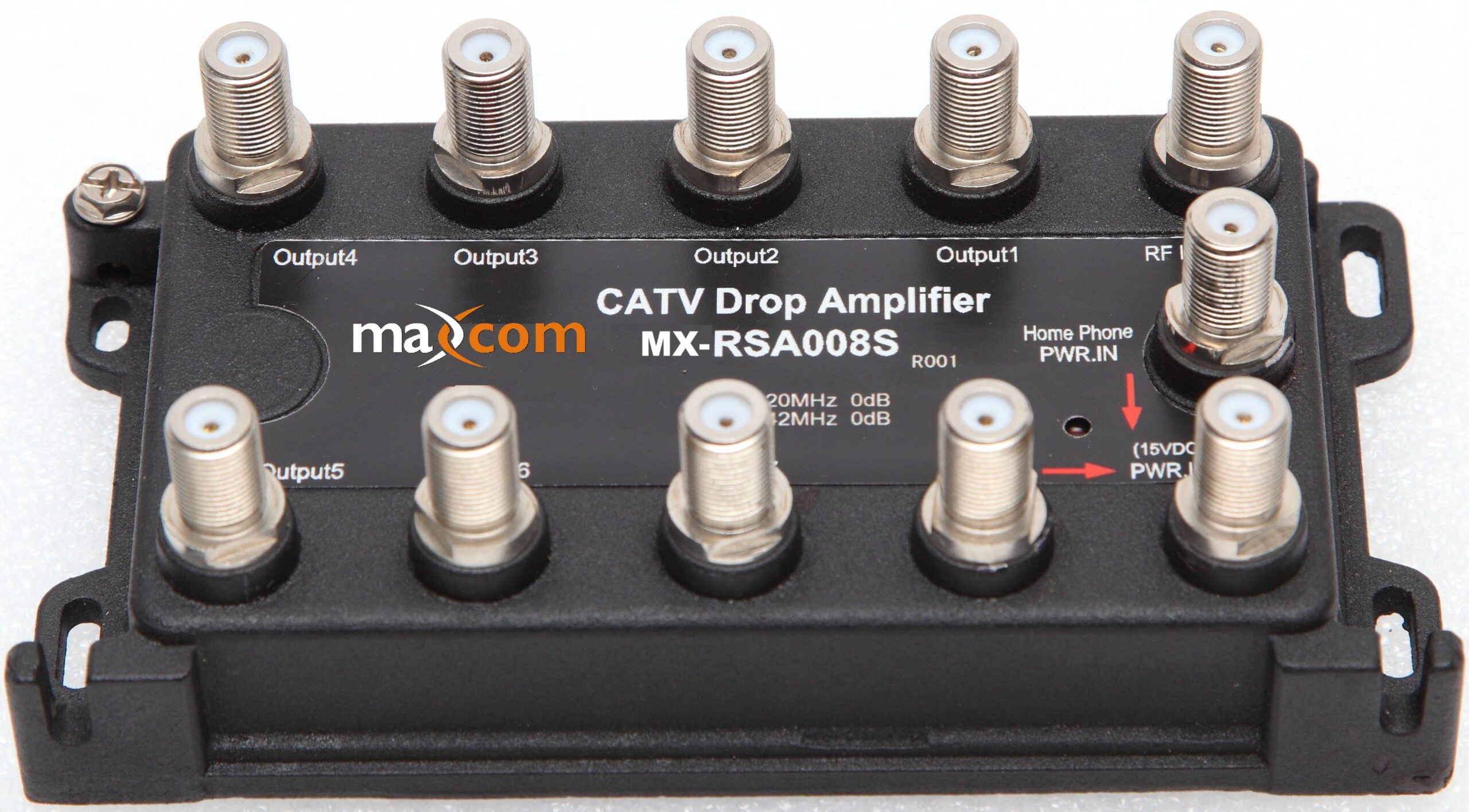

Drop Amplifiers

Bi-Directional multimedia amplifiers for today's broadband services provide durability and flexibility. Options include available modem port that is passive allowing a battery back-up Moden to operate when power to the amplifier is lost. Available with optional MoCA compatibility, and with optional diplexer (Choose 42/54, 85/102, & 204/258 MHz Mid-Splits). Flexible remote powering options over coax. Water resistant ports to 15PSI with hardened Epoxy and sealed Aluminum case.

SKU: MX-Drop Amp Category:
  1. General Details

    Flexible Features

    Bi-Directional multimedia Drop Amplifiers for today’s broadband services provide durability and flexibility. Options include available modem port that is passive allowing a battery back-up Moden to operate when power to the amplifier is lost. Available with optional MoCA compatibility, and with optional diplexer (Choose 42/54, 85/102, & 204/258 MHz Mid-Splits). Flexible remote powering options over coax. Water resistant ports to 15PSI with hardened Epoxy and sealed Aluminum case. Environmentally hardened and built with maximum toughness and the best in class warranty.

    RF Amplifier Features

    • F Connector: 75-ohm
    • Bandwidth 54 up to 1220 MHz, some models with 1.8GHz
    • Multiple Diplex Configs Available
    • Extended MoCa Freq Range Options
    • ANSI/SCTE 81 2003 Compliant
    • Follows SCTE115
    • 6kV Surge Protection with Power Supply Included
    • Operating Temp Range -40 to +140 °F (-40 to +60 °C)
    • Hardened Features, Watertight to 15 PSI
    • Warranty: 2 years

    *Additional details under Documents Section below

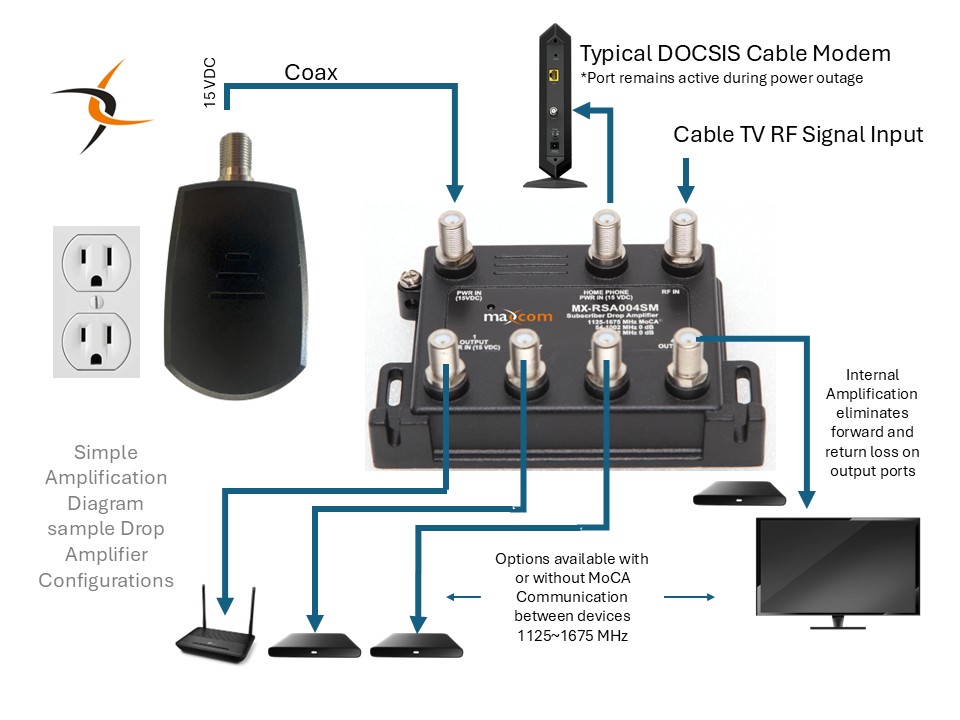

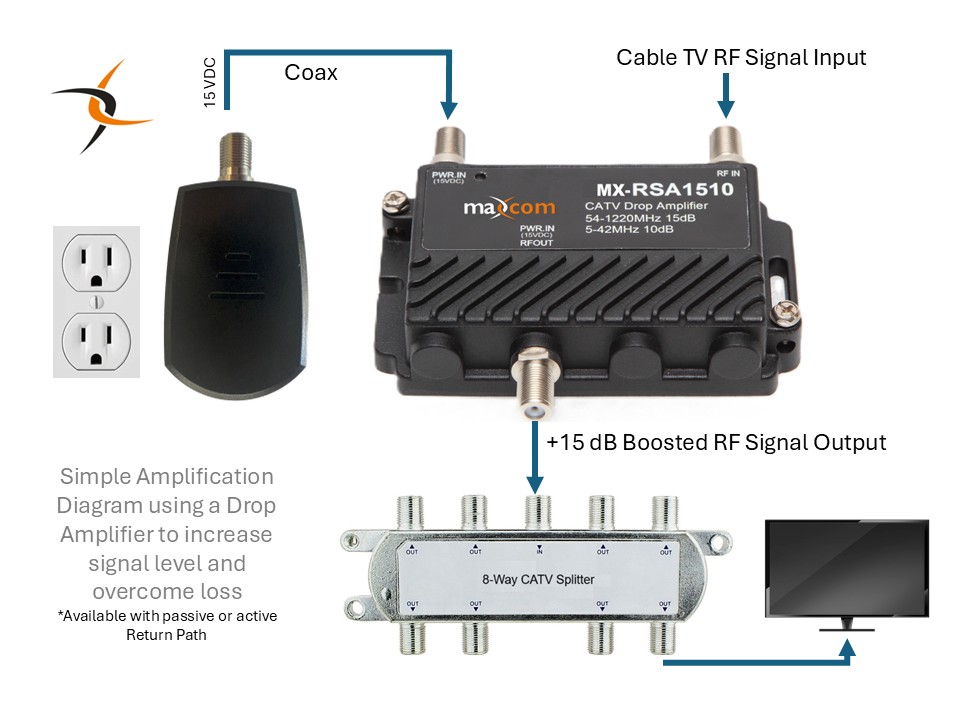

  2. Example Application

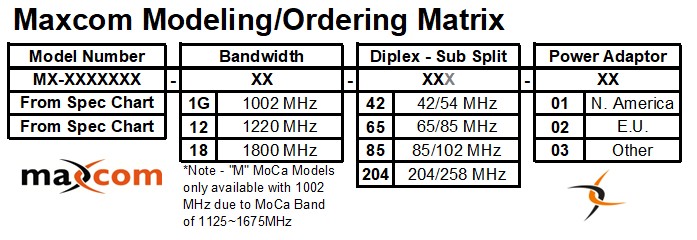

  3. Model Selection

    Please refer to Documents section for the Spec Sheet. This document describes the various models available.

  4. Specifications

    General Specifications

    • F Connector: 75-ohm
    • Bandwidth 54 up to 1220 MHz, some models with 1.8GHz
    • Multiple Diplex Configs Available
    • Extended MoCa Freq Range Options
    • ANSI/SCTE 81 2003 Compliant
    • Follows SCTE115, 13 & 19 MHz channels at 55 dBmV/CH output, w/c of DSO at 6/32 MHz & DTO at 7/25 MHz
    • 6kV Surge Protection with Power Supply Included
    • Operating Temp Range -40 to +140 °F (-40 to +60 °C)
    • Hardened Features, Watertight to 15 PSI
    • Warranty: 2 years

    Please refer to the Documents section. The Spec Sheet will provide detailed RF specifications for each of the available options.

  5. Order Inquiry

  6. Documents
