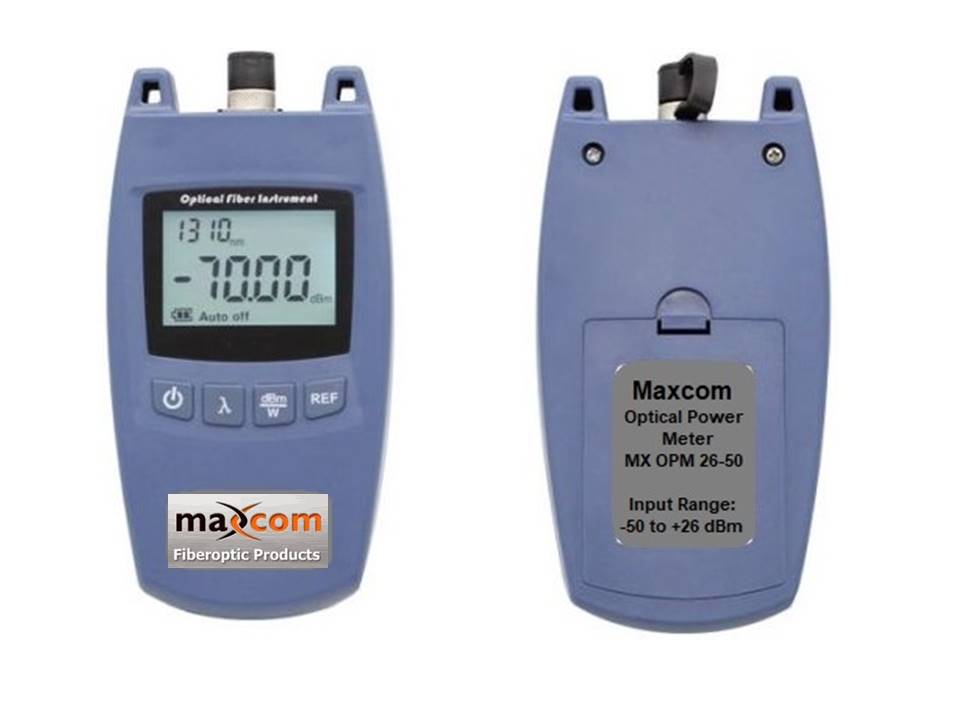

Optical Power Meter w/6 Wavelength Calibrating Spots
With six wavelength calibrating spots, the MXOPM26-50 hand-held optical power meter can be used for direct optical power measurement as well as relative measurement of optical link loss.
- General Details
With six wavelength calibrating spots (980nm, 1310nm, 1490nm, 1550nm, 1590nm and 1610nm), refined design, easy operation, linearity or non-linearity display, SC connector, the MXOPM26-50 hand-held optical power meter can be used for direct optical power measurement as well as relative measurement of optical link loss. It’s an essential test instrument in Optical Communication systems, CATV systems, construction and maintenance applications and more.
- Model Selection
- MXOPM26-50 – Optical Power Meter w/6 Wavelength Calibrating Spots
- Specifications
WAVELENGTH
- Six wavelength calibrating spots (980nm, 1310nm, 1490nm, 1550nm, 1590nm, and 1610nm)
PRODUCT FEATURES
- Display maintenance function
- Easy operation, high reliability
- Power shortage alarm
- Unique FC/SC/ST all-purpose connector
MAIN APPLICATIONS
- Various CATV applications where the measurement of optical power levels are required
- Optical fiber sensing and research
- Teaching and experimenting of optical communications
- Optical fiber communication engineering
CONNECTOR
- FC connector (FC to LC adapter supplied as option)
WAVELENGTH RANGE
- 980nm, 1310nm, 1490nm, 1550nm, 1590nm, 1610nm
PROBE TYPE
- InGaAs
POWER MEASUREMENT RANGE
- -50dBm to +26dBm
CALIBRATION WAVELENGTH NO
- 6
ACCURACY
- +-5%
DISPLAY RESOLUTION
- Logarithmic display 0.01dBm
PREHEATED TIME
- 0
DISPLAY UNIT
- dB/dBm/W
DISPLAY REFRESH FREQUENCY
- 3Hz
AUTO POWER OFF TIME
- Optional (in minutes)
BATTERY OPERATING ENDURANCE TIME
- 240 hours
WORK TEMPERATURE
- -10C ~ 50C
STORAGE TEMPERATURE
- -25C ~ +70C
RELATIVE HUMIDITY
- 0~95% without condensation
SIZE
- 130x66x27mm / 5.07×2.57×1.05 inch
WEIGHT
- 160g
POWER SUPPLY
- (3) AAA 1.5V batteries
