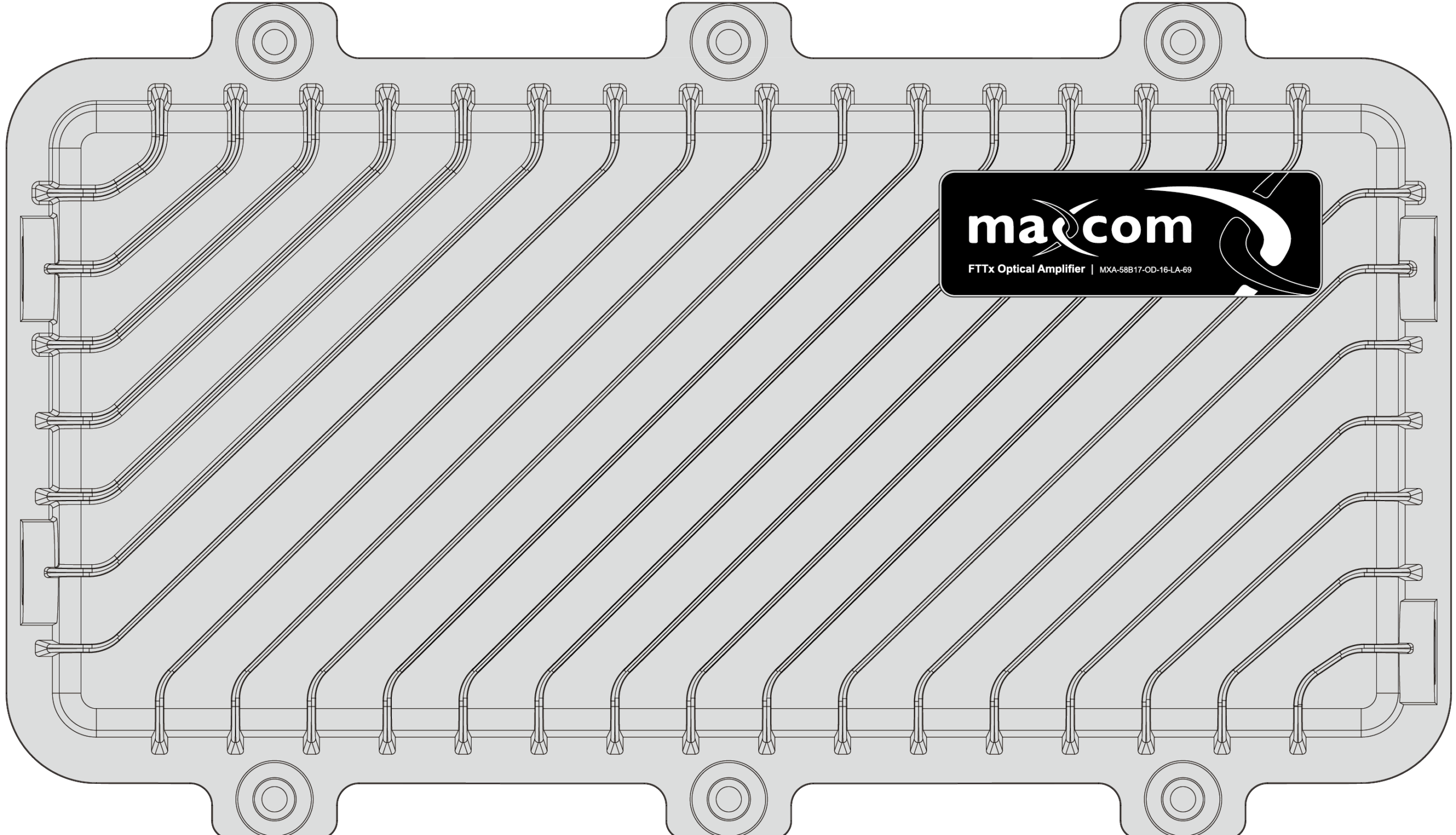

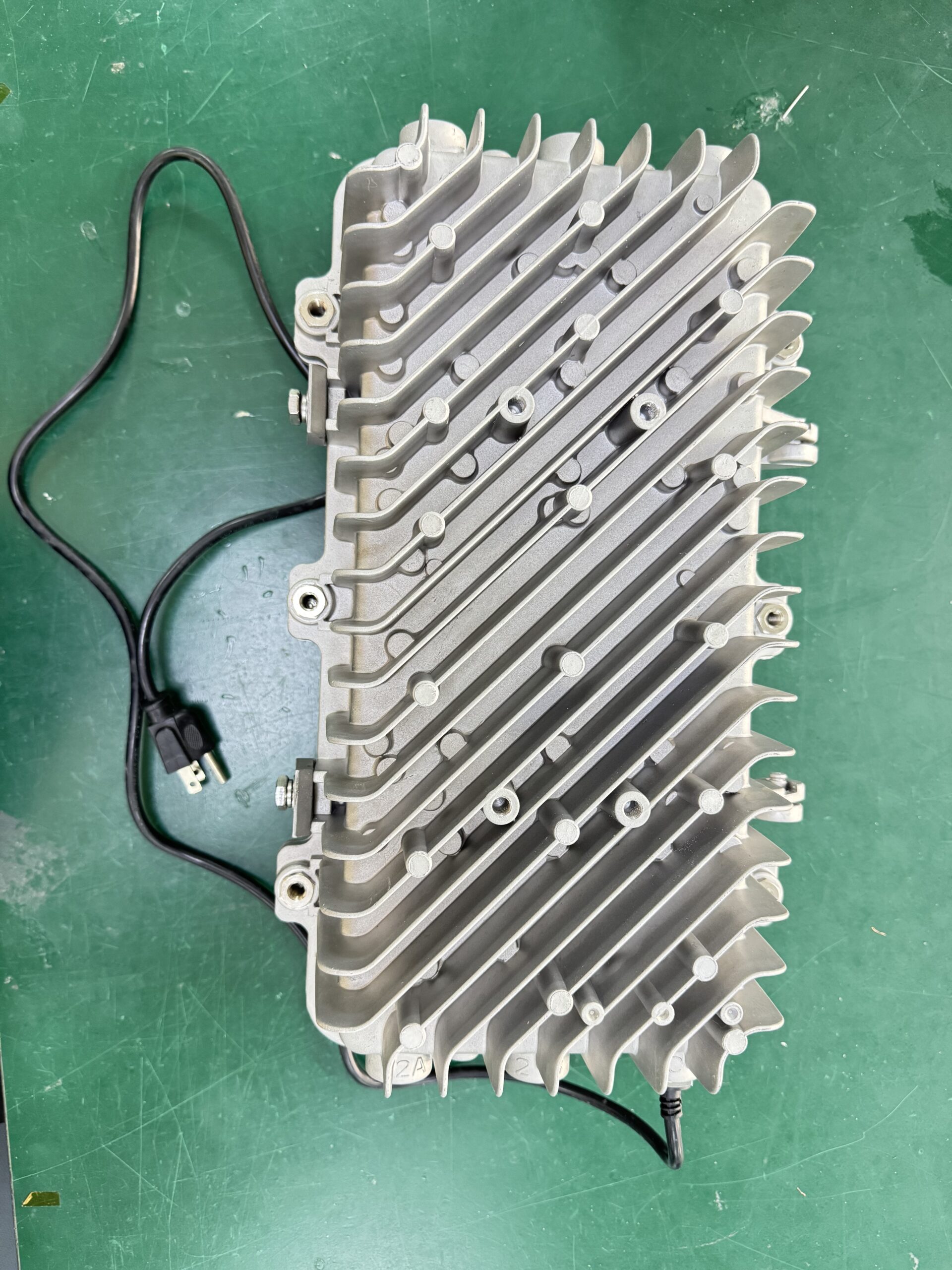

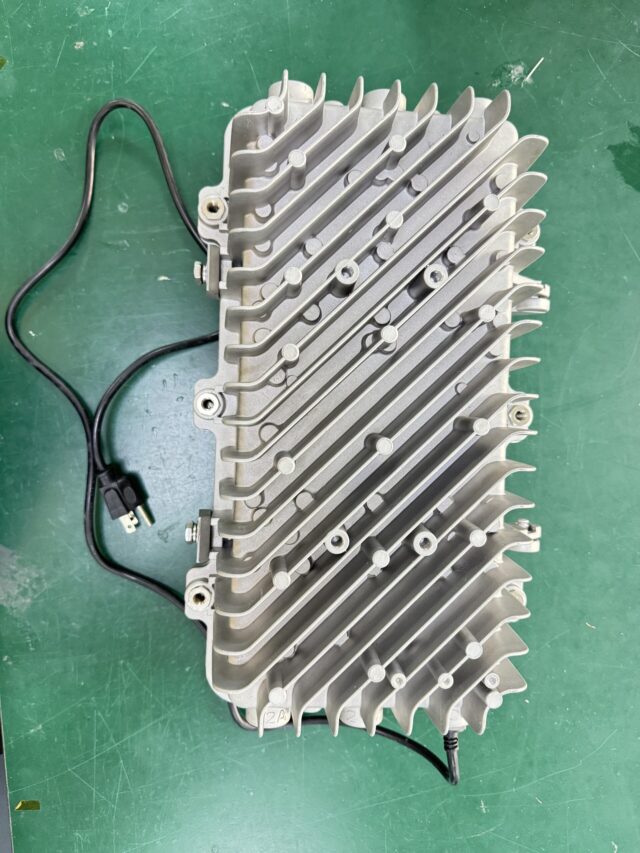

Outdoor EDFA with optional built in PON WDM ports

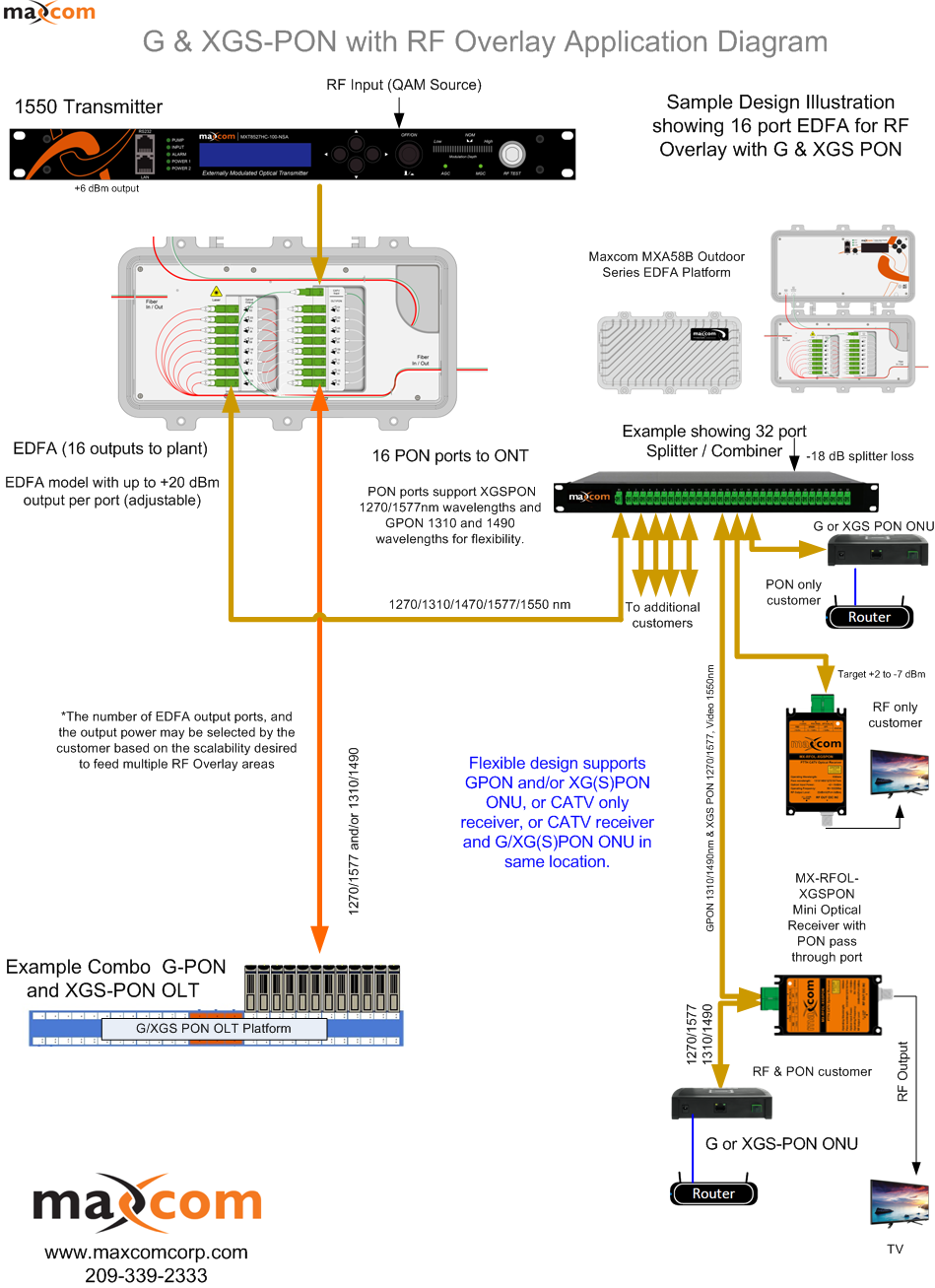

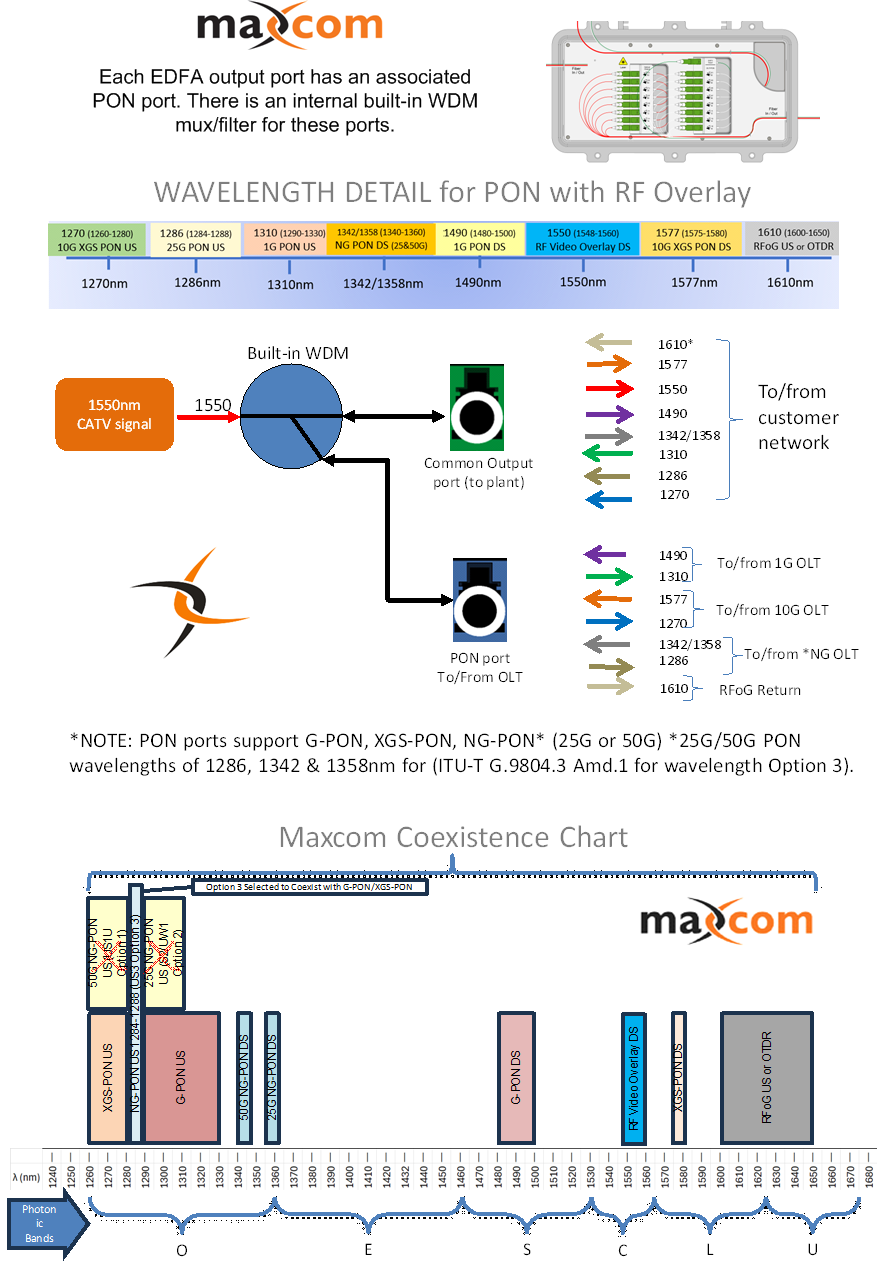

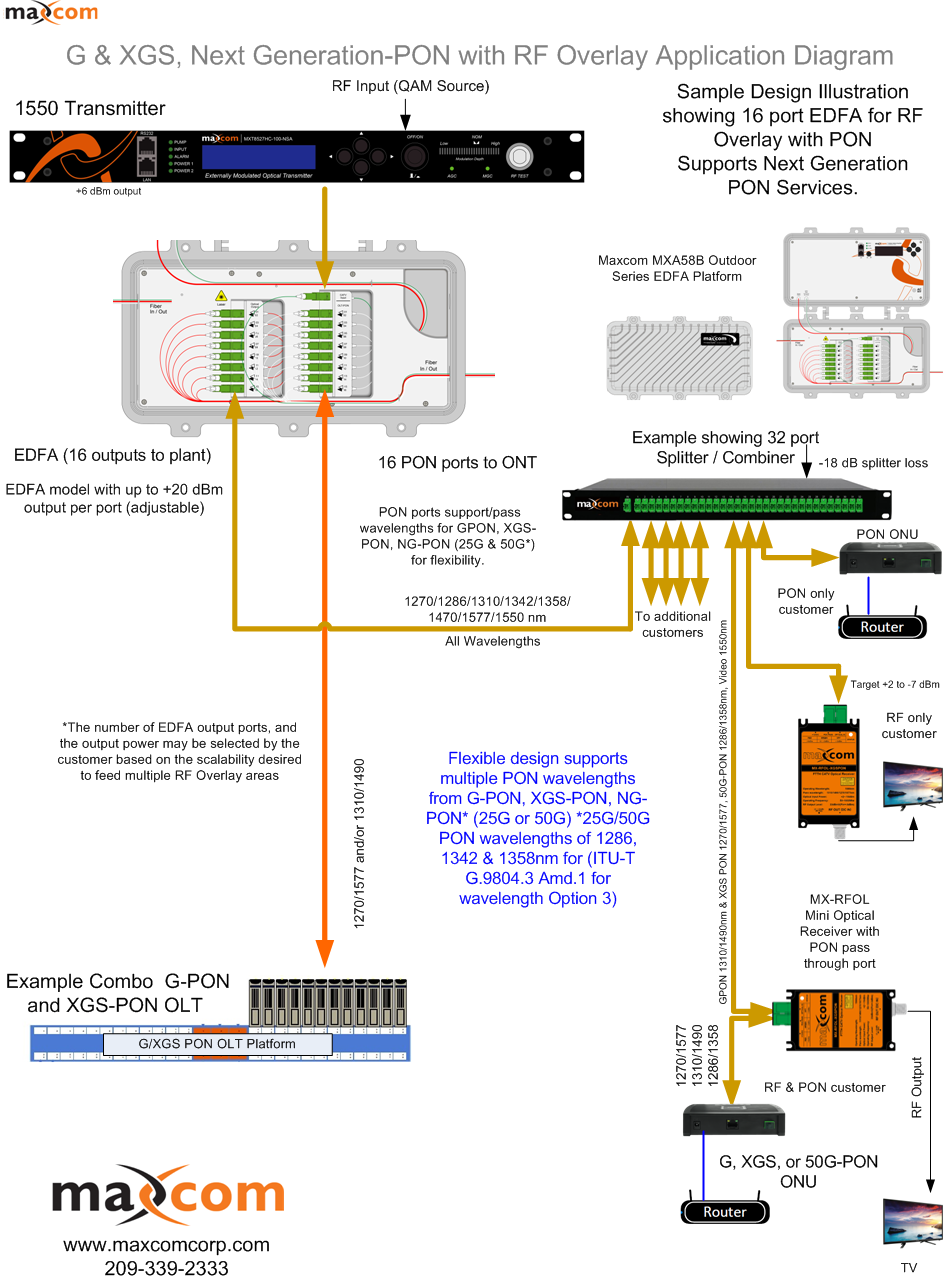

The MXA5 series Outdoor EDFA is a low noise, high performance, FTTx high power multi-port optical amplifier with a gain spectrum band within 1540~1563nm. Each output port for the optical amplifier has built-in high performance CWDM PON port to conveniently connect with an OLT. Each of the 1550nm (CATV)’s output optical ports will multiplex 1310/1490nm and 1270/1577nm wavelengths from an external OLT, reducing the quantity of the components and improving the performance and reliability of the system. Models are also available with an option to pass 1610nm RFoG wavelengths.

The MXA5 Series has an extremely low noise figure. The unit adopts twin-stage amplification, the pre-amplifier adopts a low noise EDFA, and the output cascade adopts high power EYDFA technology. When the input optical power PIN is 0dBm, the noise figure of the unit is: Typ ≤4.5dB, Max ≤5.0dB unlike other manufactures which need higher optical power input to maintain lower noise figures.

The MXA5 Series optical amplifier incorporates world class pump lasers and American made OFS erbium-doped optical fiber. Superb APC, ACC, and ATC control, coupled with excellent design in the ventilation and heat-dissipation ensure a long life and exceptionally reliable operation of the pump laser. RS232 and RJ45 offer serial communication and SNMP network management ports.

The MXA5 Series LCD located inside the housing on the front panel offers access to all equipment indexes and warning alarms.  A WEB GUI interface is also available for operators preferring remote access and visibility.

Maxcom EDFA’s offer a flexible wide range optical input between -5 to +10 dBm.

For safety and protection of the laser components, the laser will automatically switch off if input optical power is interrupted.

The MXA5 Series offers carrier-class reliability and network security management, high quality, superb reliability, and excellent cost performance are ideal for system integrators and system operators.

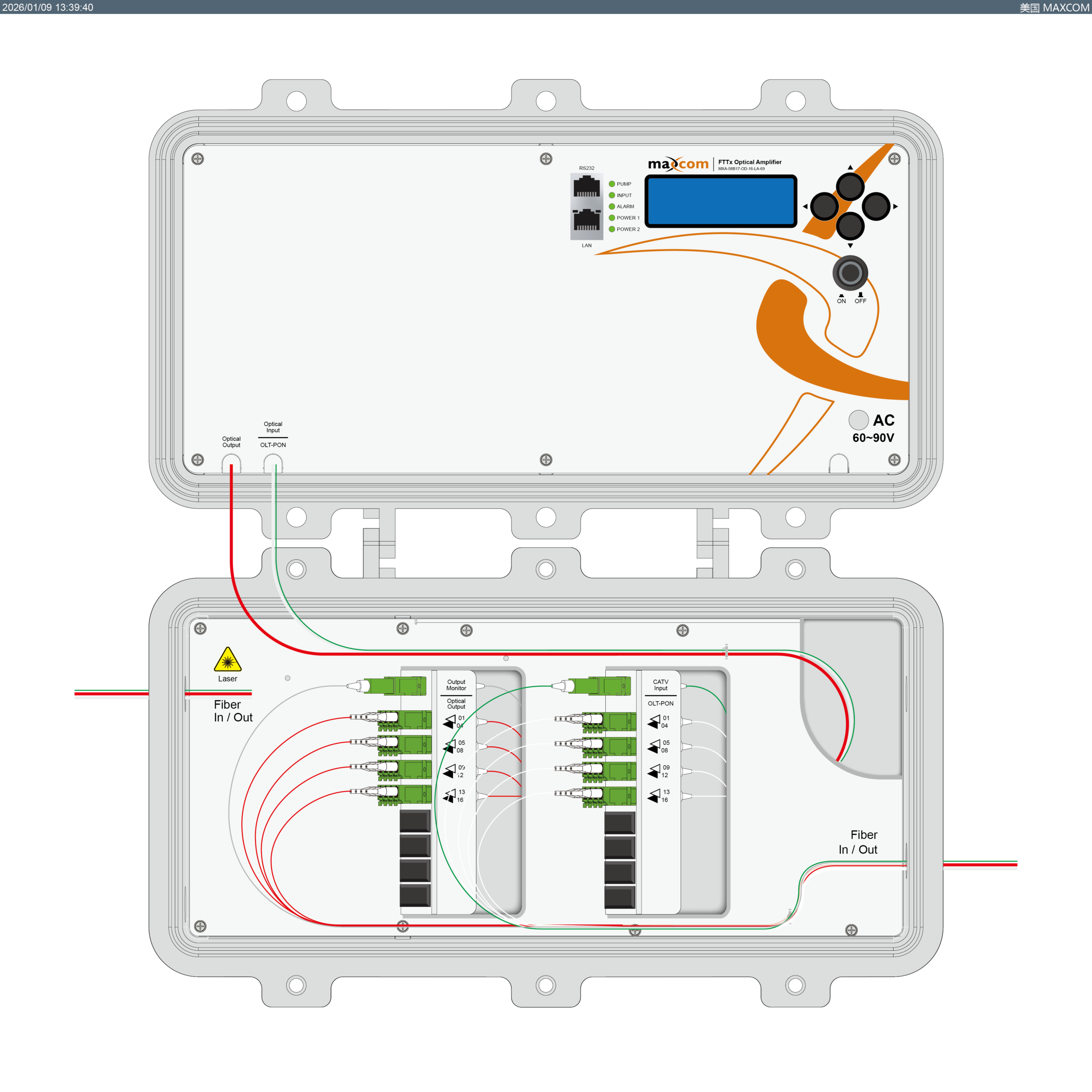

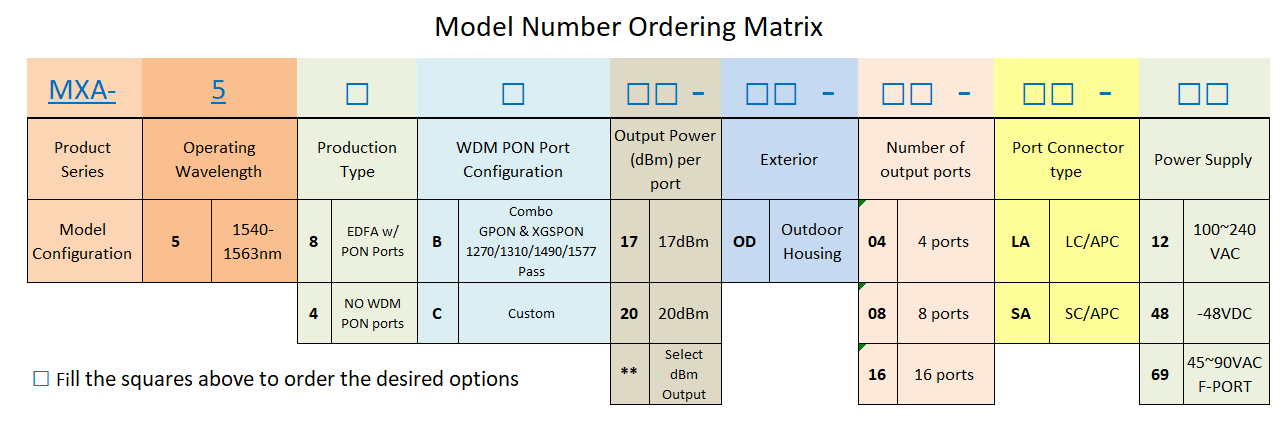

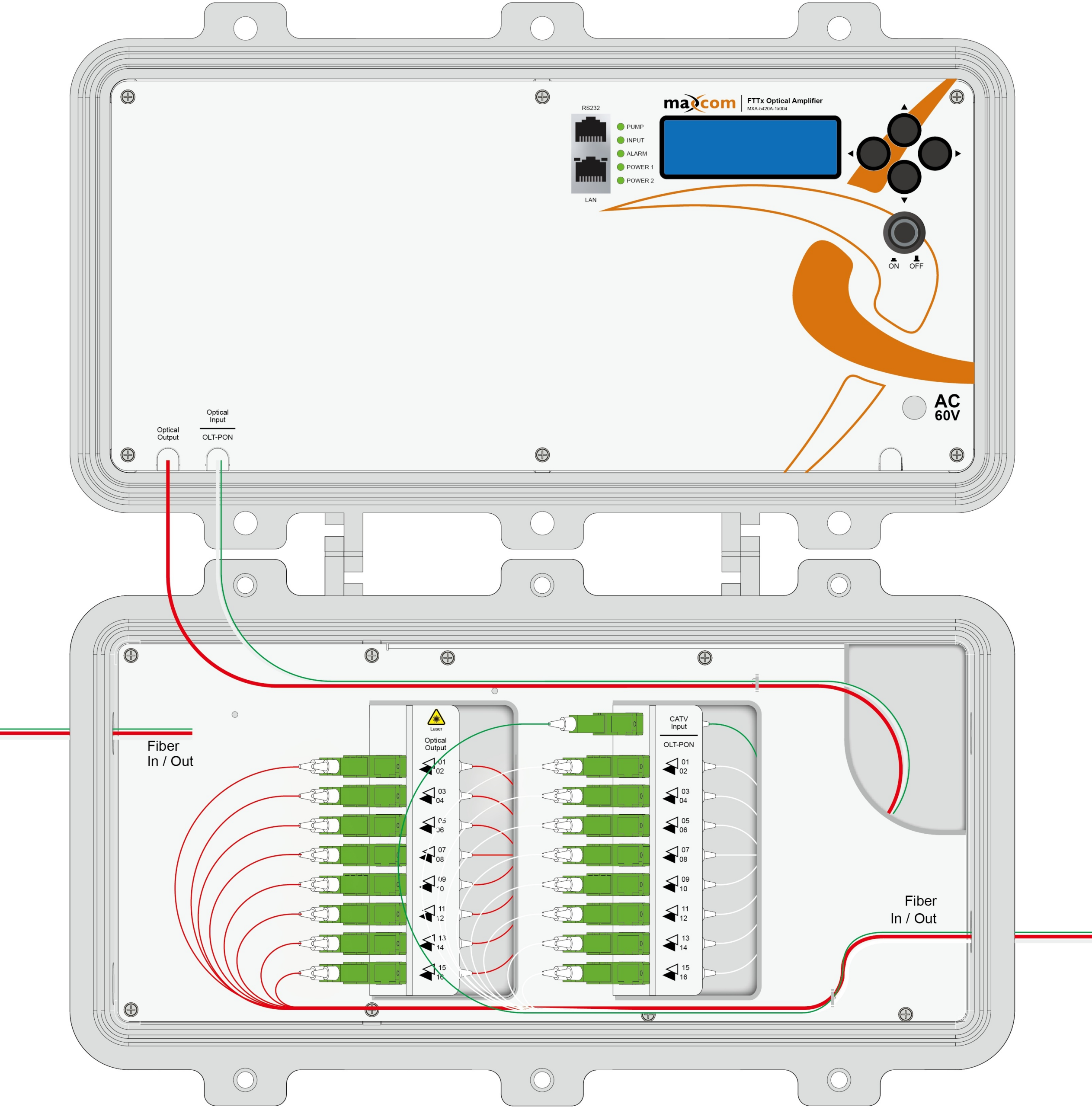

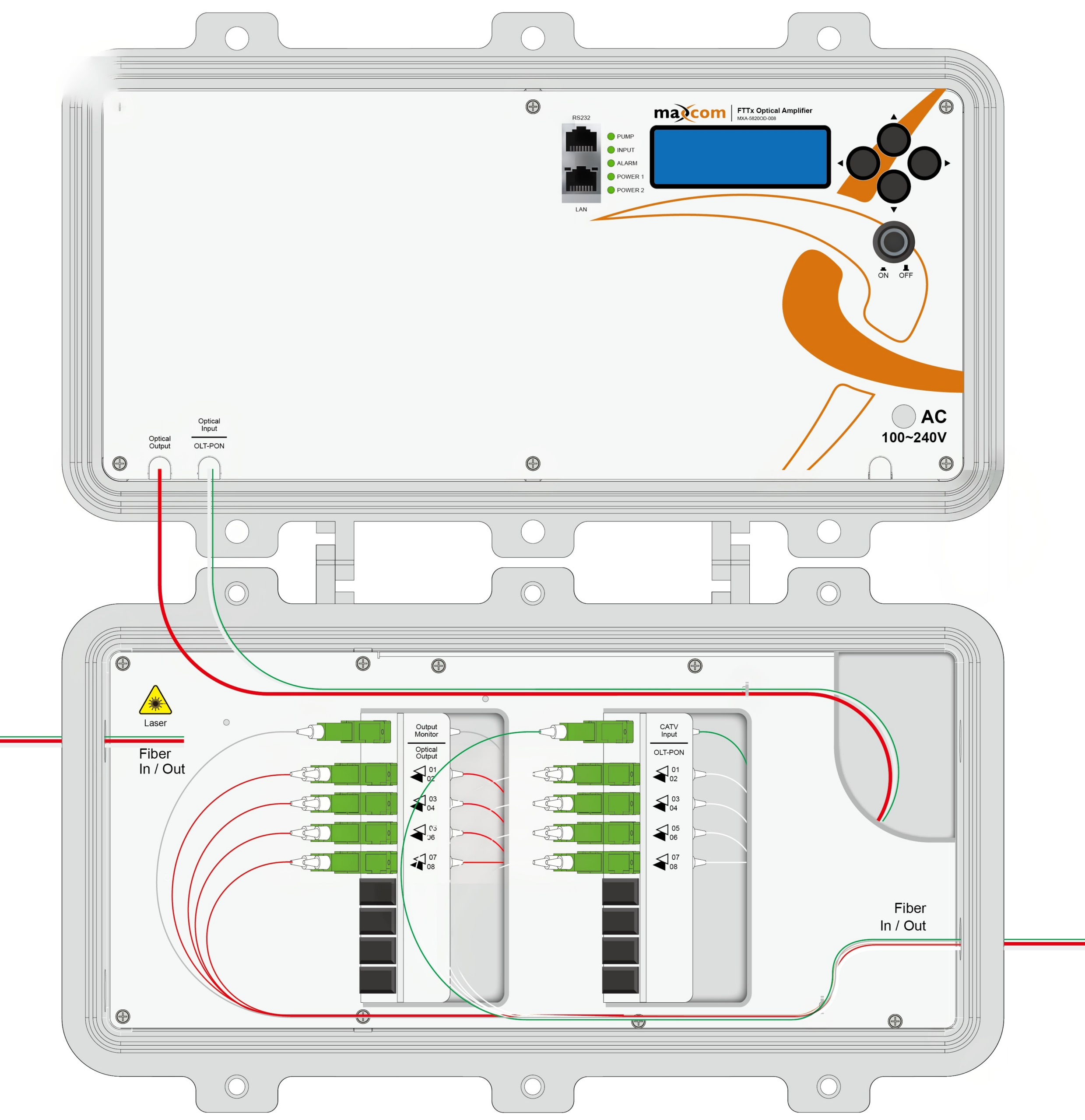

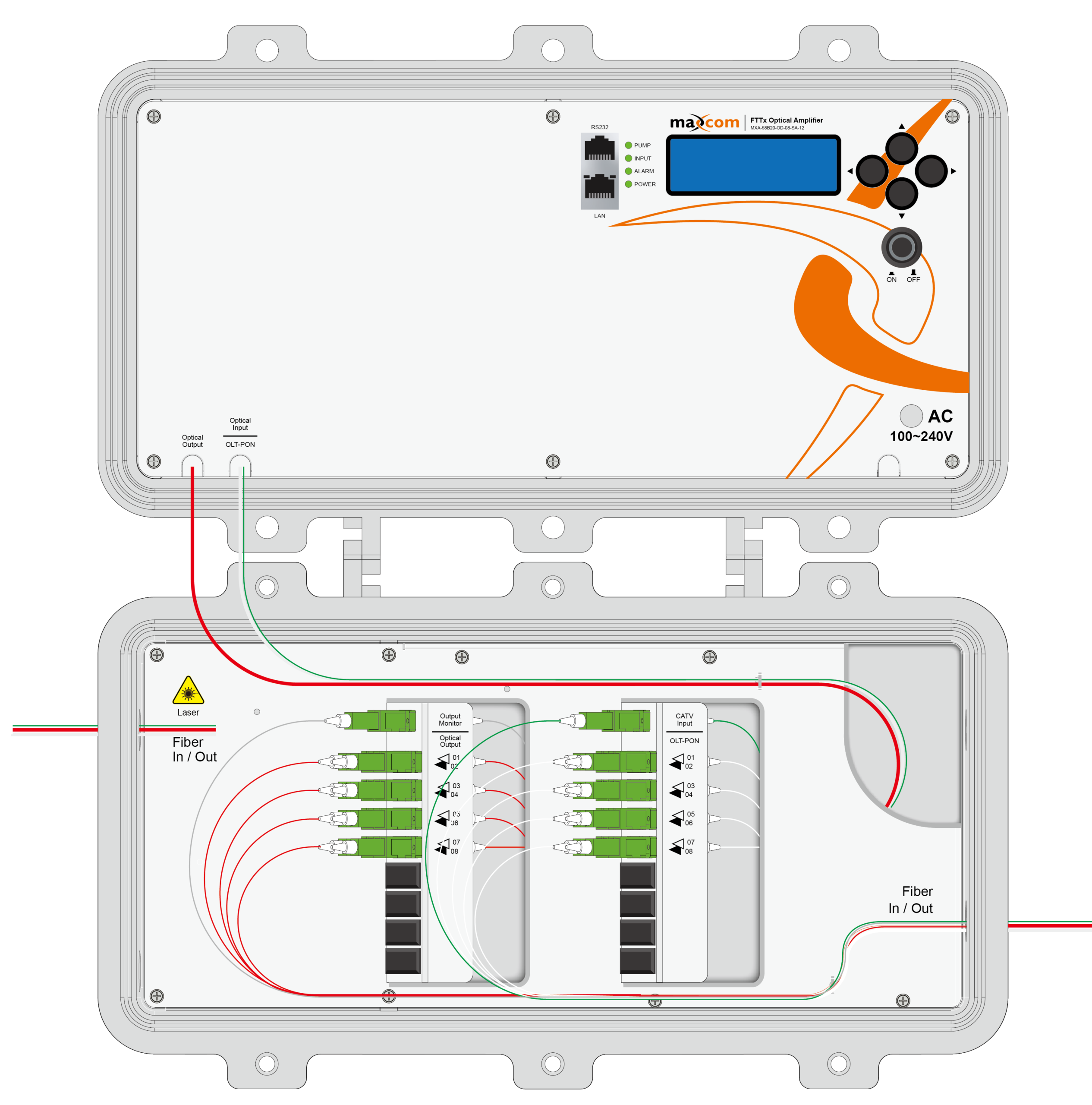

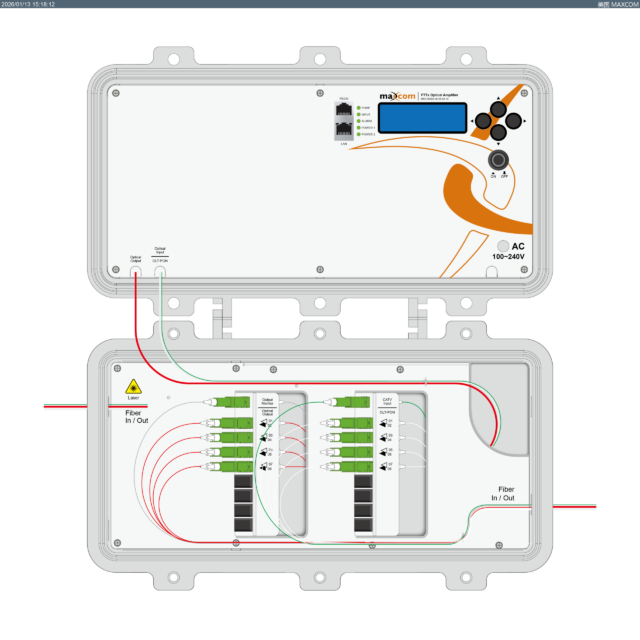

The MXA5 Outdoor EDFA Series optical amplifiers are available with standard output power of +17 or +20 dBm per output port. Standard units come in 4, 8, and 16 port configurations. Units come with xPON ports to match the number of output ports. Optional daisy chain ports are also available providing for simple scalability as your network grows.

Fiber connector types come in standard SC/APC and may be customized for operator requirements using SC/APC, SC/UPC, LC/APC, and LC/UPC

All MXA5 Outdoor Series EDFA’s are available with AC or DC power supplies. Choose coax F-port line power between 45~90 VAC, or optional 100~240VAC power supply, or optional -48 VDC PS.
