Gigabit Ethernet DWDM Fiber Optic Transceiver

MX5000GD is a DWDM Gigabit Ethernet Transmitter that repeats Gigabit Ethernet signals using DWDM technology.

SKU: MX5000GD Category: Archived Past Products

General Details
MX5000GD is a DWDM Gigabit Ethernet Transmitter that repeats Gigabit Ethernet signals using DWDM technology. The MX5000GD employs 100 GHz wavelength lasers. The MX5000GD version includes SNMP management. MX5000 chassis holds up to 4 MX5000GD Gigabit Ethernet DWDM cards. It expands network data transmission distances beyond 2km limitation of multimode optical fiber to maximum of 110km by transmitting over singlemode fiber optic cable in full duplex mode. The MX5000GD has easy-to-read link status LED’s for continuous status reports on LAN and WAN link status. It uses standard SC/APC fiber optic connectors and is IEEE 802.3z 1000BASE-FX compliant and operates with all devices that adhere to this standard.
Example Application
Model Selection
- MX5000GD-MM-850-SCA– DWDM Gigabit Ethernet Fiber Optic Transceiver, LAN=Multimode Fiber, SC/APC
- MX5000GD-RJ45-SCA – DWDM Gigabit Ethernet Fiber Optic Transceiver, LAN=1000BASE-TX, SC/APC
- MX5000GDM-MM-850-SCA – Dual Gigabit Ethernet Fiber Optic Transceiver, SNMP, LAN=Multimode Fiber, SC/APC
- MX5000GDM-RJ45-SCA – Dual Gigabit Ethernet Fiber Optic Transceiver, SNMP, LAN=1000BASE-TX, SC/APC
Specifications
FEATURES
- 1000 Mbps Full Duplex Gigabit Ethernet Transceiver
- 1 x 1000BASE-FX LAN Fiber Port or One 1000BASE-TX RJ-45 port
- 1 x 1000BASE-FX WAN Fiber Port singlemode, DWDM, 100 GHz
- 110km Transmission Range
- 2 Fiber Strand Transmission
- Provide full wire-rate 2000 Mbps Duplex Transmission for greater network performance
- SNMP Management available
- IEEE 802.3z compliant
- Guaranteed switch performance and hardware compatibility with other switches, hubs and adapters
STANDARDS
- IEEE 802.3z 1000BASE-FX Gigabit Ethernet
- DWDM: ITU-T G.957, ITU-T G.958
CONNECTION PORTS
- 1000BASE-FX: 2 Fiber Port Transceiver, SC/APC
- 1000BASE-TX: RJ-45, 1000BASEFX; SC/APC
DIMENSIONS
- 17″ x 10″ x 5.75″, 3U
ENVIRONMENT
- Operating temperature: 0oC to 50oC
- Storage temperature: -20oC to 70oC
- Operating humidity: 10% to 90% RH
- Storage humidity: 5% to 90% RH
POWER REQUIREMENTS
- Voltage: 110/240V Auto-sense Internal Power

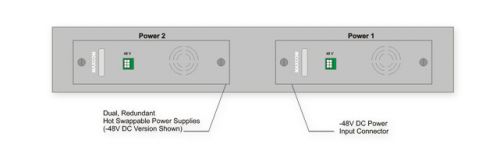

- Redundant, Load Sharing 48V DC Supplies
NETWORK MEDIA
- 1000BASE-SX: 62.5/125 microns multimode fiber cable
- 1000BASE-LX: 9/125 micron singlemode cable
- 1000BASE-TX: RJ-45, CAT5/CAT6
- DWDM: 9/125 micron singlemode fiber cable
LED INDICATORS
- Power, Link, DWDM Laser Status
- SNMP Indicators: Link, DWDM Laser Status
