Mini Fiber Optic Return Path Receiver

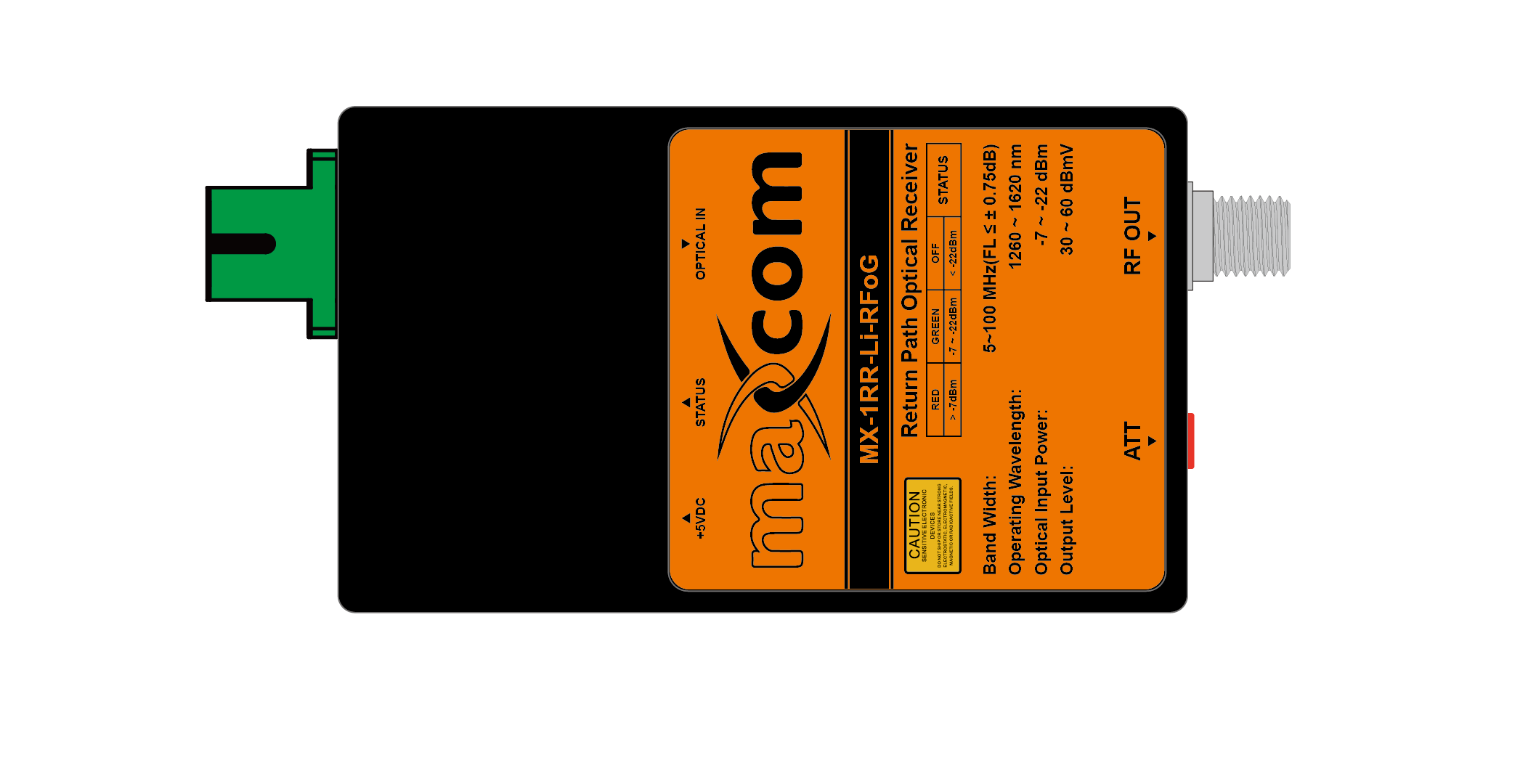

The MX 1RR-LI transforms return optical signals to RF signal. The standard mini receiver module can receive return optical signals from burst mode mini-nodes or RFoG optical network units (ONU)-Mini-Nodes.
- General Details
The MX -1RR-LI-RFoG transforms return optical signals to RF signal output. The standard mini receiver module can receive return optical signals from burst mode mini-nodes or RFoG optical network units (ONU)-Mini-Nodes.
High sensitivity for low optical input (to -22dBm) , provides flexibility for your optical link design. Complies with SCTE-HMS and IEC standards.
- Example Application
- Model Selection
- MX1RR-LI – Mini single Fiber Optic Return Path Receiver
Additional versions available:
- MX4RR-LI – 4 Way Fiber Optic Return Path Receiver (low optical input)
- MX8RR-LI – 8 Way Fiber Optic Return Path Receiver (low optical input)
- Specifications
OPTICAL
- Wavelength: 1260~1620 (nm)
- Input Power Range: -17~ -7 (dBm) * Recommended range, reveiver will operate to -22dBm
- Return Loss: >50.0 (dB)
RF
- RF Passband: 5 MHz up to 100 MHz
- Output Level: >=30~60 (dBmV)
- Flatness: <=+-0.75 (dB)
- Output Return Loss: >=16 (dB)
USER INTERFACE
- PIN
USER INTERFACE
- Optical Connector: SC / APC
- Optical Fiber Type: Single-Mode Fiber
- RF Output Port Type: Metric F Head
- Power Interface: AC 110V plug-in (5 VDC ouput)
GENERAL
- Dimension (W)x(H)x(L): 2.3″x3.9″x.9″ (inch)
- Power Supply: AC 60Hz 110/220V with 5VDC output (included)
