DVB-ASI to E1 Converter

MX-ASI –E1 and MX E1-ASI is a DVB-ASI to E1 converter. Network adapters work in pairs MX ASI –E1 as a transmitter MX E1 – ASI as a receiver.

SKU: MX ASI - E1 Category: Archived Past Products

General Details
MX-ASI –E1 and MX E1-ASI is a DVB-ASI to E1 converter. Network adapters work in pairs MX ASI –E1 as a transmitter MX E1 – ASI as a receiver. It enable transmission format conversion and reverse conversion between DVB standard interface and SDH/PDH/ATM network interfaces.

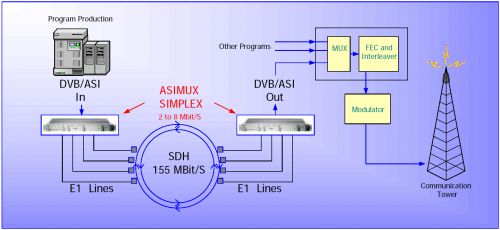

Example Application
Model Selection
- MX ASI – E1 -xx – DVB-ASI to E1 converter (transmitter) (xx-1-4 E1)
- MX E1- ASI -xx -E1 to DVB-ASI converter (receiver) (xx-1-4 E1)
Specifications
FEATURES
- Transmission format conversion and reverse conversion from DVB ASI to SDH/PDH/ATM
- Reverse multiplexing of DVB ASI high bit rate over multi-E1 lines (1~4 E1 optional)
- Modularized design, support multiple combination options
- Expandable to three models, each operating independently
- Output/input status indication, easy to operate
INTERFACE
- E1 BNC：G.703，1.92Mbps
- 1~4 channel E1 SMB：1.5~7.6Mbps
OPTIONAL
- DS3 (default)/E3 (optional) (1-channel ASI loop out) BNC：ANSIT1.107/G.703；
  DS3：< 43Mbps；
  E3：< 33Mbps
ENVIRONMENTAL CONDITIONS
- Working temperature: 0℃~ 40℃
- Storage temperature: －20℃~ 80℃
- Comparative humidity: 10℃~ 90℃ (no-condensing)
ELECTRICAL FEATURES
- Power: 85V~132V/60Hz (default) or 170V~264V/50Hz (optional)
- Power consumption: <30W
