CATV Fiber Optic Economical 1550nm Transmitter – Direct Modulated
The MX-T1500E series Economical Direct Modulated Transmitter delivers high performance signal transmission of digital QAM signals from 50-1000 MHz for CATV applications. It maintains good MER performance up to 20km.
- General Details

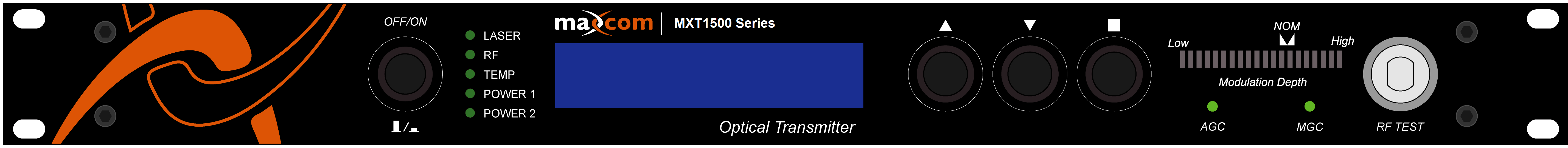

The Maxcom MX-T1500E is an Economical 1550nm Direct Modulation optical transmitter with high index and AGC function. Maxcom incorporates a high linearity and a low chirp DFB laser, built-in pre-distortion compensation and AGC, APC, ATC closed loop control, which improve the performance index. It may be used in a FTTx application for transmitting Digital QAM CATV and DOCSIS RF signals over fiber. Optimized for networks under 20km using an EDFA. MX-T1500E optical transmitter: Standard CATV wavelength
PRODUCT FEATURES
• Low chirp, high linearity DFB laser, chirp compensation.
• Dual module RF driver, highly efficient laser pre-distortion adjustment.
• Dual Power Supplies (AC or -48VDC)
• Full-automatic OMI control, AGC & MGC.
• Modulation status display.
• Standard optical output is +6 dBm
• Auto temperature control to ensure long laser life.
• Commonly used in RFoG or RF Overlay networks 20km or less, while maintaining good MER

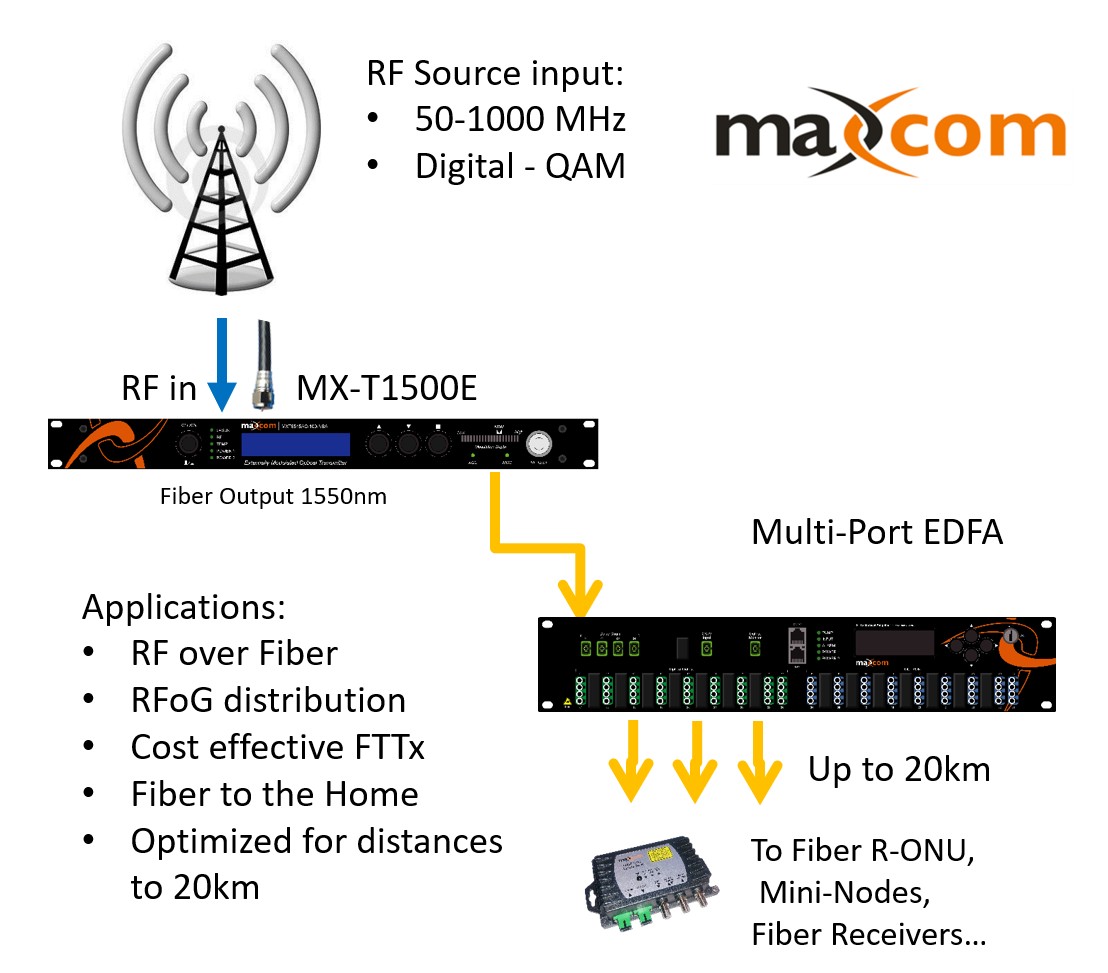

• Designed for All Digital (QAM) RF Signal Transmission• Part Numbers:
• MX-T1506E-AC (Transmitter with +6 dBm output and Dual AC Power Supplies)
• MX-T1506E-DC48 (Transmitter with +6 dBm output and Dual -48VDC Power Supplies) - Example Application
- Model Selection
Part Numbers:
• MX-T1506E-AC (Transmitter with +6 dBm output and Dual AC Power Supplies)
• MX-T1506E-DC48 (Transmitter with +6 dBm output and Dual -48VDC Power Supplies)Various output powers may be ordered as a custom option.
- Specifications
FEATURES
- • Low chirp, high linearity DFB laser, chirp compensation.
• Dual module RF driver, highly efficient laser pre-distortion adjustment.
• Dual Power Supplies (AC or -48VDC)
• Full-automatic OMI control, AGC & MGC.
• Modulation status display.
• Standard optical output is +6 dBm
• Auto temperature control to ensure long laser life.
• Commonly used in RFoG or RF Overlay networks 20km or less, while maintaining good MER
• Designed for All Digital (QAM) RF Signal Transmission
*Additional Specification details are listed in the technical datasheet (downloadable PDF)
