2 Baseband Video / 4 Audio Fiber Optic Video Multiplexer
The rack-mountable MVX24 fiber optic baseband video multiplexer is ideal for transmitting 2 channels of baseband video and up to 4 channels of audio on one fiber optic cable.
- General Details
The rack-mountable MVX24 fiber optic baseband video multiplexer is ideal for transmitting 2 channels of baseband video and up to 4 channels of audio on one fiber optic cable. The MVX24 operates by digitising and multiplexing baseband video and audio onto a fiber optic cable. Because the system employs 10-bit digital transmission techniques, performance characteristics are consistent and maintained over the specified distance with no degradation of signal. There are no FM carriers that need to be tuned or that can drift over time. The low component count and use of custom ASICs increase system reliability and performance. The MVX24 is designed to work with standard singlemode or multimode fiber optic cable and can be wall mounted or rack mounted. Both transmitter and receiver come equipped with internal power supplies. Built-in diagnostics LEDs for each channel are LINK status facilitates continuous monitoring of equipment status.

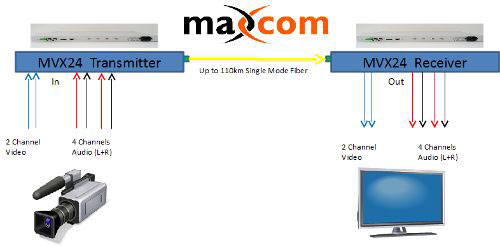

- Example Application
- Model Selection
- MVX24 – Fiber Optic Baseband Video Multiplexer, 2 Video, 4 Audio, Singlemode, 1 Fiber, SC/APC Connector, 40km
- MVX24/80 – Fiber Optic Baseband Video Multiplexer, 2 Video, 4 Audio, Singlemode, 1 Fiber, SC/APC Connector, 80km
- MVX24/110 – Fiber Optic Baseband Video Multiplexer, 2 Video, 4 Audio, Singlemode, 1 Fiber, SC/APC Connector, 110km
- Specifications
FEATURES
- High Quality 10-bit Digital Sampling of Video Inputs
- Uncompressed Digital Transmission
- 2 Channel Baseband Video Transmission
- 4 Channel Audio Transmission
- Audio Compatible with Unbalanced Audio Formats
- Transmit up to 110km over one strand of fiber optic cable
- High Quality Uncompressed Digital Transmission
- 67 dB SNR
- 6.5MHz Bandwidth per Video Channel
- Bidirectional Transmission available
STANDARDS
- NTSC, PAL, SECAM
CHANNELS
- 2 Baseband Video, 4 Audio
VIDEO BANDWIDTH
- 10 Hz to 6.5 Mhz
SNR/dP/dG
- 67 dB, < 1 deg / < .5%
VIDEO I/O
- BNC, 1V p-p, 75 ohm
AUDIO
- RCA unbalanced
DIMENSIONS
- 480mm x 225mm x 44mm
ENVIRONMENT
- Operating temperature: 0oC to 50oC
- Storage temperature: -20oC to 70oC
- Operating humidity: 10% to 90% RH
- Storage humidity: 5% to 90% RH
POWER REQUIREMENTS
- Voltage: 110/240V Auto-sense Internal Power
