16 Baseband Video / 32 Audio Fiber Optic Multiplexer
The rack-mountable MVX1632 fiber optic baseband video multiplexer is ideal for transmitting up to 16 channels of baseband video and 32 channels of audio on fiber optic cable.
- General Details
This rack-mountable MVX12 fiber optic baseband video multiplexer is ideal for transmitting 1 channel of baseband video and 2 channels of audio over one strand of fiber optic cable. The MVX12 operates by digitizing and multiplexing baseband video and audio onto a high speed serial cable. Because the system employs 10-bit digital transmission techniques, performance characteristics are consistent and maintained over the specified distance with no degradation of signal. There are no FM carriers that need to be tuned or that can drift over time.
The low component count and use of custom ASICs increase system reliability and performance. The MVX12 is designed to work with standard singlemode or multimode fiberoptic cable and can be wall mounted or rack mounted. Both transmitter and receiver come equipped with internal power supplies. Built-in diagnostic LEDs for each channel; loss of link facilitate the continuous monitoring of all phases of operation.

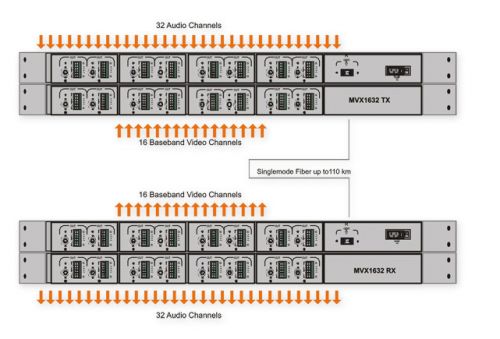

- Example Application
- Model Selection
MVX1632 – Fiber Optic 16 Channel Baseband Video Multiplexer, Singlemode, 1 Fiber, SC/APC, 40km
MVX1632/80 – Fiber Optic 16 Channel Baseband Video Multiplexer, Singlemode, 1 Fiber, SC/APC, 80km
MVX1632/110 – Fiber Optic 16 Channel Baseband Video Multiplexer, Singlemode, 1 Fiber, SC/APC, 110km
- Specifications
FEATURES
- 16 Channel Baseband Video and 32 Channel Audio Transmission
- Transmit up to 110km over one strand of fiber optic cable
- High Quality Uncompressed Digital Transmission
- 62 dB SNR
- Compatible with Composite Video and Audio Signals
- Built in Cable Equalizer for up to 100m of RG-59 cable
- Bidirectional Transmission available
STANDARDS
- NTSC, PAL, SECAM
CHANNELS
- 16 Baseband Video / 32 Audio
VIDEO BANDWIDTH
- 10 Hz to 6.5 Mhz
SNR/dP/dG
- 62 dB, < 2 deg / < 2%
VIDEO INPUT
- 1V p-p, 75 ohm
INPUT CABLE EQUALIZATION
- 0 to 100m
ENVIRONMENT
- Operating temperature: 0oC to 50oC
- Storage temperature: -20oC to 70oC
- Operating humidity: 10% to 90% RH
- Storage humidity: 5% to 90% RH
POWER REQUIREMENTS
- Voltage: 110/240V Auto-sense Internal Power
REGISTRATION
- FCC Part 15 Class A, CE, UL, CUL, TUV
