Transmit HD-SDI-3G-ASI Signals over Fiber

Transmit HD-SDI-3G-ASI signals over Fiber. The MX/HD-SDI-3G-ASI Transmitters and Receivers are used to transport High Definition HD-SDI and ASI signal.

Product ID: MXHD-SDI-3G-ASI Categories: ,
  1. General Details

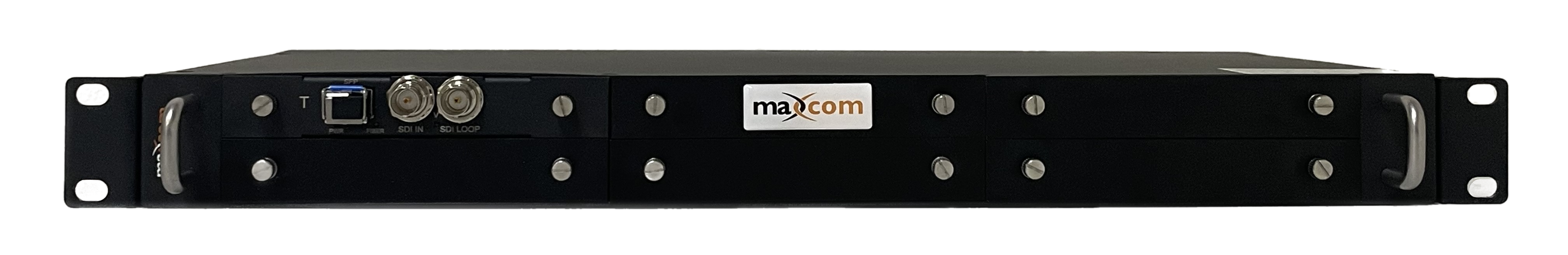

    The MX/HD-SDI-3G-ASI Transmitters and Receivers are used to transport High Definition HD-SDI and ASI signal.

    Transmit HD-SDI-3G-ASI signals over Fiber. The MX/HD-SDI-3G-ASI Transmitters and Receivers are used to transport High Definition HD-SDI signals over fiber optic cable. These units support DVB-ASI, SD-SDI, and HD-SDI signals with nominal data rates up to 3 Gbps. All units have SFP based optics, and come standard with SFP’s supporting 40km fiber distances. Optional CWDM SFP’s are available as well.

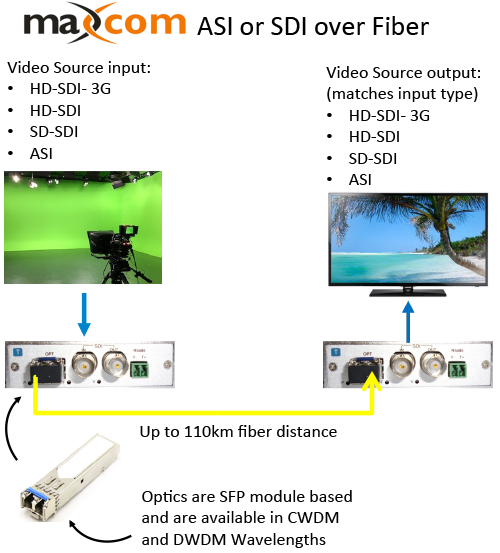

  2. Example Application

  3. Model Selection
    • MX/HD-SDI-3G-ASI – 40km standard fiber distance; 80km also available
  4. Specifications

    FEATURES

    • Transmit ASI or HD-SDI signal over one single-mode Fiber
    • Support data rate from 19.4Mb/s to 3Gb/s
    • SMPTE 424M, SMPTE 292M, SMPTE 344M and SMPTE 259M compliant
    • Support SMPTE 259M, SMPTE297M, SMPTE305M, SMPTE310M format and up to 1.485Gbps, and DVB-ASI (270Mb/s) formats for HD-SDI
    • Transmitter and Receiver link status LED indicators
    • Plug and Play, Easy to use, no configuration needed

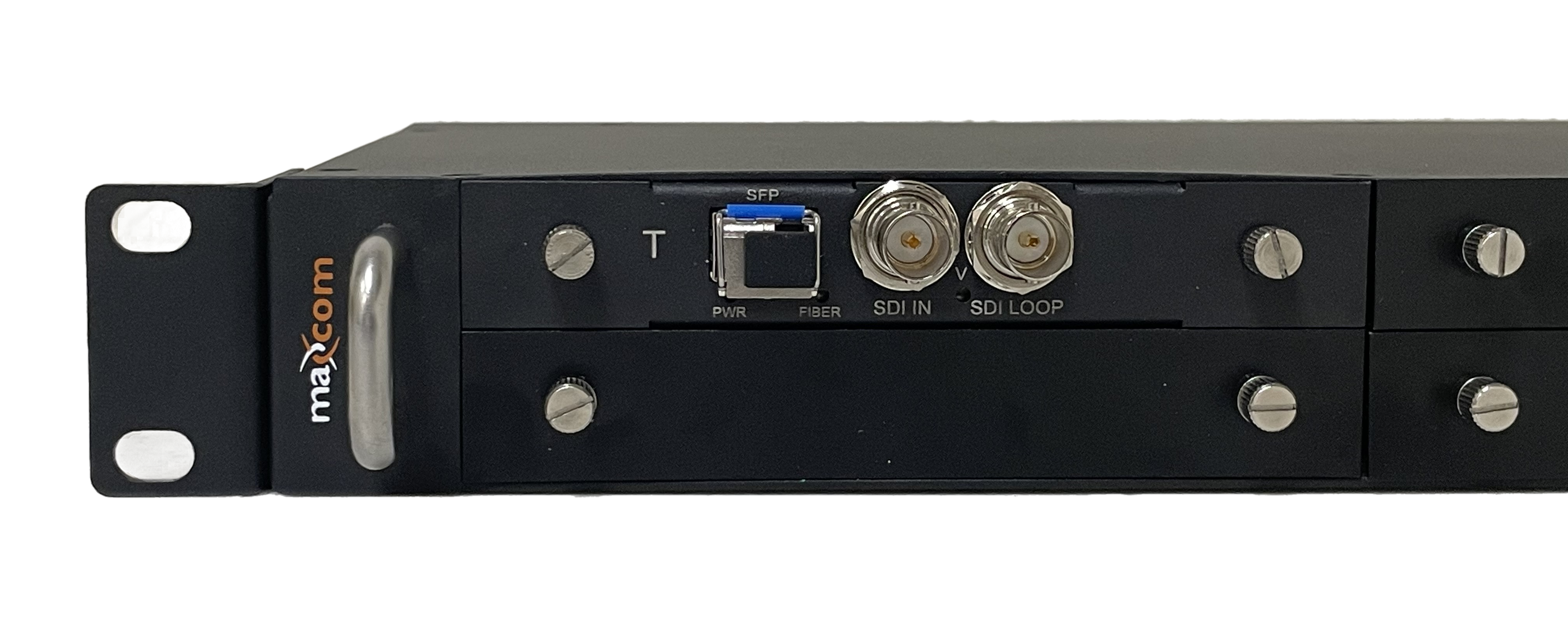

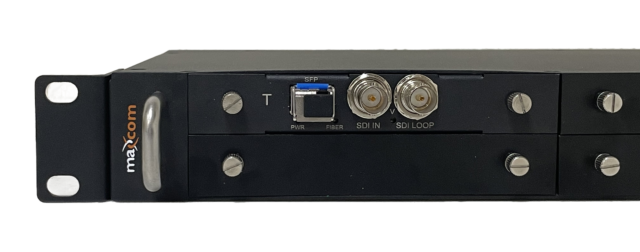

    • Loop Through SDI connector included for monitoring
    • Available in 1550nm and standard ITU CWDM optional wavelengths providing efficient use of space
    • 40km standard fiber distance supported, 80km available
  5. Order Inquiry
  6. Documents
