L-Band Fiber Optic Transmitter/Receiver
The L-Band Transmitter and Receiver pair is used for transporting L-Band over fiber from the antenna to the satellite receiver.
- General Details
The L-Band Transmitter and Receiver pair is used for transporting L-Band over fiber from the antenna to the satellite receiver. L-band RF signals have a very limited range over coaxial cable, typically no more than a few hundred feet. By transporting the L-Band over fiber this range can be extended from several hundred feet to over 75 miles. Transmitters provide optional 13/18V LNB power as well as Automatic Gain Control (AGC) to manage RF input level. Fiber optic transport of satellite signals is useful in many applications, such as transportation of signals from a remote satellite farm to a broadcaster or cable company’s Headend, uplink and downlink applications, and DBS services.

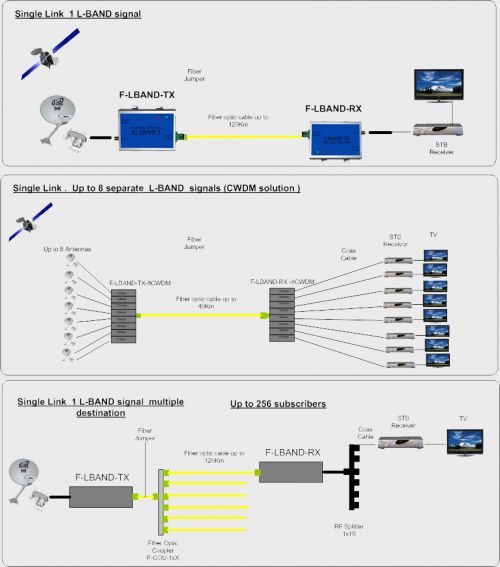

- Example Application
- Model Selection
- MX-LBAND-Tx – L-Band Fiber Optic Transmitter
- MX-LBAND-Rx – L-Band Fiber Optic Receiver
- Specifications
FEATURES
- Optical Solution for MDU
- 950 – 2600 MHz Bandwidth
- >0 dB System Gain ( Including 13 dB Optical Link Budget )
- Optional Automatic Gain Control ( AGC ) In Transmitter
- Supply + 12 or + 18 DC to LNB
OPTICAL PARAMETERS
Wavelength (nm)
- Transmitter: 1550 +/- 20nm
- Receiver: 1200 – 1600nm
Optical Output/Input Power
- Transmitter: +6 dBm
- Receiver: > -13dBm
Connector
- Transmitter: SC/APC
- Receiver: SC/APC
Operating Bandwidth
- Transmitter: 950 to 2600 MHz
- Receiver: 950 to 2600 MHz
Nominal Composite RF Output
- Receiver:
-10 dBm (@ 13dB optical link budget)
Output/Input Impedance
- Transmitter: 75 ohm
- Receiver: 75 ohm
AGC Range (optional)
- Transmitter: 10dB
RF Return Loss
- Transmitter: 13dB
- Receiver: 13dB
RF Connector
- Transmitter: F Type
- Receiver: F Type
