Video to IP Converter Encoder Basic

Converts video and audio HD-SDI or composite video with left and right audio input to high rate MPEG-2 IP format.

SKU: PEG-NE24-IP-C Category:
  1. General Details

    These MPEG encoders provide a simple solution for transporting video signals to your site. The PEG-NE24-IP is a stand-alone MPEG-2 and H.264 digital encoder with a single digital SD/HD-SDI input. For applications requiring an analog input, the PEG-NE24-IP-C offers both composite video and audio inputs as well as the single digital SD/HD-SDI input. By using either encoder, operators can efficiently transport video and audio signals from a local origination site, back to the headend or hub location via fiber. The signal will arrive at the Headend or Hub as an MPEG IP stream may be added to you mux equipment, which allows the cable company to re-broadcast to cable subscribers.

    FEATURES

    • Second SD encoded output for backward compatibility with SD only decoders
    • Built-in watchdog timer with system reboot capability
    • MPEG-2 and/or MPEG-4 / H.264 video encoding
    • Field-upgradable firmware
    • Encodes a HD and SD stream of the same content in either MPEG-2 or MPEG-4 / H.264 formats
    • Configuration & shutdown control via HTTP server UI and programmable API
    • VLAN and QoS support for streaming or management traffic
    • Resolutions of 480i, 720p, or 1080i
    • SNMP V2
    • Dolby® Digital, AAC stereo audio, or MPEG1-Layer 2 stereo audio encoding
    • User defined PID configuration from PCM-embedded audio source
    • Supports ATSC PSIP tables
    • SD-SDI & HD-SDI input
    • DVB Service Information table generation (NIT+SDT)
    • IP output via SFP port (SFP optional-see back)
    • Insert custom screen message upon loss of video
    • Unicast and multicast capable

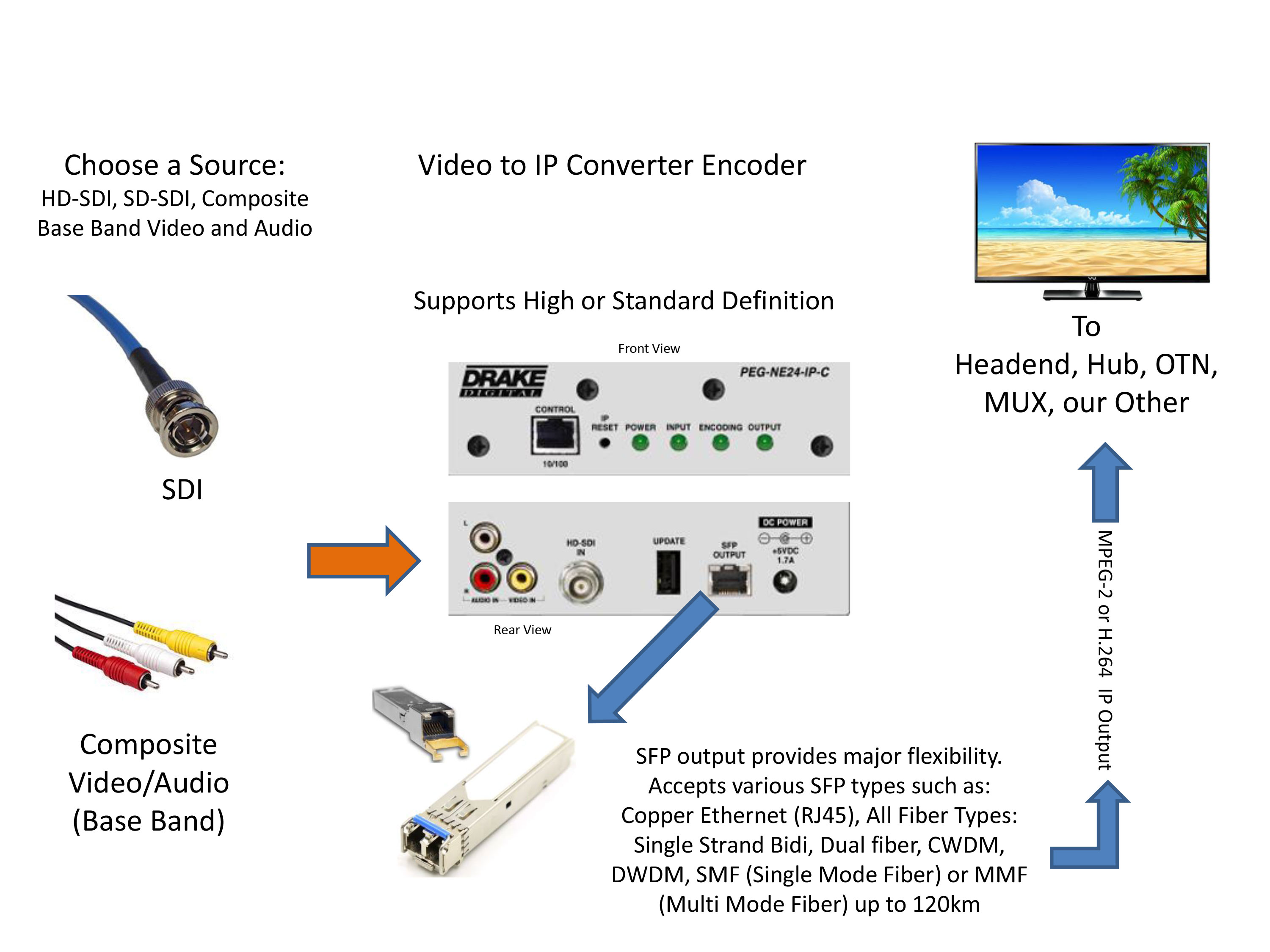

  2. Example Application

  3. Model Selection
    • PEG-NE24-IP
    • PEG-NE24-IP-C
    • PEG-NE24-IP-C with Zixi
    • PEG-RK-KIT PEG Encoder Rack Mount KIT (holds up to 3 encoders, includes power supply)
  4. Specifications

    INTERFACE

    Video Inputs

    • SDI/HD-SDI BNC type connection
    • Closed Caption Support (Embedded Only)

    AUDIO INPUTS

    • SDI/HD-SDI Embedded Audio

    VIDEO OPTIONS

    Input Video Modes

    • 480i (640×480/720×480 @ 30FPS)
    • 720p (1280×720 @ 60FPS)
    • 1080i (1920×1080 @ 30FPS)
    • Auto-Scan for Input Resolution

    Video Format

    • MPEG-2 OR H.264

    H.264 PROFILE SUPPORT

    • Baseline
    • Main
    • High

    AUDIO OPTIONS

    Encoder Format

    • Dolby® Digital or MPEG1-Layer 2

    Output Bitrate

    • 128-320 kbps

    Manufactured under license from Dolby Laboratories

    OUTPUT

    Video Output

    • SFP Port IP SPTS (SFP module is optional)

    Packet Format

    • UDP SPTS (x1 HD, x1 SD)

    PHYSICAL SPECIFICATIONS

    Temperature Rating

    • 0 – 50° C Ambient

    Form Factor

    • Desktop Modulator

    Dimensions

    • Approximately 7.5″ D X 1.15″ H X 3.5″ W

    Weight

    • 1.15 lbs

    Power Requirements

    • 110 VAC/60 Hz or 220 VAC/50 Hz



    Specifications, price, and availability are subject to change without notice or obligation.
