Quad Protocol Independent Fiber Optic Multiplexer

MX2704 is a Quad DVB-ASI /SDI fiber optic multiplexer that translates transmission signals from a copper media to singlemode optical signal.

SKU: MX2704 Category:
  1. General Details

    MX2704 is a Quad DVB-ASI /SDI fiber optic multiplexer that translates transmission signals from a copper media to singlemode optical signal. The multiplexers do not combine DVB-ASI or SD SDI signals but rather provide two separate FULL DVB-ASI pipes to the receiver location. The MX2704 uses 4 BNC connector for the copper inputs and can be configured for SC, SC(APC), ST and FC optical connectors. Typical applications include multiplexing and sending opticly point to point 4 DVB-ASI or 4 SD-SDI or both . The MX2704 translates the signal and transmits the signal over one fiber strand. The MX2704 has easy-to-read diagnostic LED’s for system status.

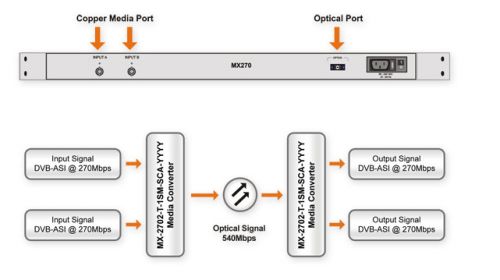

  2. Example Application

  3. Model Selection
    • MX2704 -Fiber Optic Quad DVB-ASI Media Converter, 1 Fiber, SC/APC Connector, 40km
    • MX2704/80 – Fiber Optic Quad DVB-ASI Media Converter, 1 Fiber, SC/APC Connector, 80km
    • MX2704/110 – Fiber Optic Quad DVB-ASI Media Converter, 1 Fiber, SC/APC Connector, 110km
  4. Specifications

    FEATURES

    • Dual Full Rate DVB-ASI to Fiber Media Converter
    • 4 Channels @ 270 Mbps each
    • CDWM & DWDM Optional Wavelenghts
    • Redundant Transmitter/Receiver – Optional
    • 1 Wavelength Transmission

    APPLICATIONS

    • DVB-ASI Stream Trunking
    • Supports > 120 3.5 Mbps VOD Streams
    • Video-On-Demand Streams
    • MPEG High Density Trunking
    • Video-On-Demand Streams
    • 4 Channels @ 270 Mbps I/O

    CONNECTION PORTS

    • 1/2/4 BNC, 75 ohm
    • 1 SC/PC or SC/APC Singlemode Optical Port

    DIMENSIONS

    • 480mm x 225mm x 88mm

    ENVIRONMENT

    • Operating temperature: 0oC to 50oC
    • Storage temperature: -20oC to 70oC
    • Operating humidity: 10% to 90% RH
    • Storage humidity: 5% to 90% RH

    POWER REQUIREMENTS

    • Voltage: 110/240V Auto-sense Internal Power

    REGISTRATION

    • FCC Part 15 Class A, CE, UL, CUL, TUV

    TRANSMISSION MEDIA

    • DVB-ASI: 75 ohm RG-59
    • Optical: 9/125 micron singlemode fiber cable

    LED INDICATORS

    • Power, Optical Signal Detect



  5. Order Inquiry
