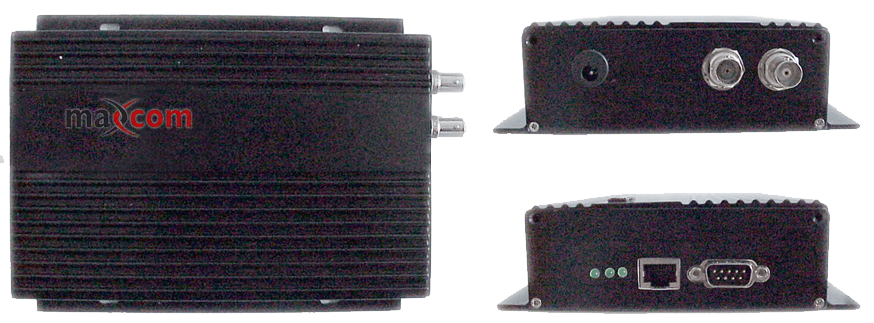

MX ASI-IP/MX IP-ASI Network Adapters
MX ASI-IP/MX IP-ASI Network Adapters are able to convert data streams between DVB ASI and IP UDP. They can be used in any ASI (270Mbps) data to IP application.
- General Details
Maxcom MX ASI-IP/MX IP-ASI Network Adapters encode DVB-ASI data streams for transport across IP network systems. They can be used in any ASI (270Mbps) compliant application. The MX ASI-IP network adapter finds a cost effective solution for ASI transport problems by allowing your system designers to utilize existing IP network bandwidth. Eliminate the need for pulling expensive new fiber or coax lines by using existing bandwidth.
- Model Selection
- MX ASI-IP – MX ASI-IP Network Adapter -ASI data rate up to 18Mb/s
- MX IP-ASI – MX IP-ASI Network Adapter—ASI data rate up to 18Mb/s
- MX ASI-IP/HD – MX ASI-IP Network Adapter -ASI data rate up to 270 Mb/s
- MX IP-ASI/HD – MX IP-ASI Network Adapter –ASI data rate up to 270 Mb/s
- Specifications
FEATURES
- PowerPC embedded CPU is used for the hardware, enabling stable and reliable performance;
- Open Linux operating system is used for the software;
- Complete Ethernet protocol, providing 10B/100BaseT network interface and IP routing function;
- UDP connection mode, specially designed for video data application;
- Support up to 20 IP point to point transmission and multicast, with each IP target address supporting the functions of enable, disable or delete;
- DVB ASI loop out;
- RS232 interface;
- Embedded WEB Server configuration (optional);
- Communication protocol and remote control software package for development (Optional);
- Compact design, easy to mount;
- Output/Input status indicator, easy to operate.
INTERFACE
- Ethernet Interface – 100BaseT, RJ45 interface
- ASI Output Interface – BNC, 75Ω
- RS-232 Interface – Male DB-9
EXPANDABILITY
- Can customize for industrial users when required.
POWER SUPPLY
- DC 5V
POWER CONSUMPTION
- < 5W
POWER REQUIREMENTS
- Voltage: 110/240V Auto-sense Internal Power
DIMENSION/WEIGHT
- 220mm * 145mm * 40mm / 0.6KG
TEMPERATURE
- 0oC to 40oC
HUMIDITY
- 10-90%, non-condensing
