HDSDI – (SMPTE292M) to Agile QAM Inserter
Distributes HD-SDI video over existing CATV RF network by converting HD-SDI to ASI TS (MPEG-2) and modulating it on any RF QAM channel.
- General Details
Distributes HD-SDI video over existing CATV RF network by converting HD-SDI to ASI TS (MPEG-2) and modulating it on any RF QAM channel.High definition Video can be displayed on any TV with QAM tuner. Agile QAM modulator can produce any 6 MHz QAM channel from 54 to 1000 MHz. Eliminates need for high costs of MPEG-2 encoder.

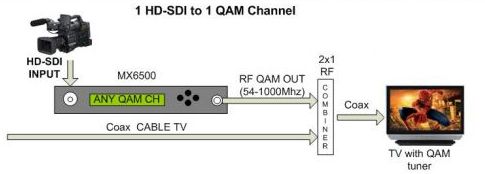

- Example Application
- Model Selection
- MX6500 – 1 HD-SDI to 1 QAM inserter
- MX6500 Rev B – NEW 1 HD-SDI to 1 QAM inserter
- Specifications
INPUT
- 1 HD-SDI (SMPTE292M) in MX6500
QAM RF OUTPUT
- 1 x RF output +1 x RF test point (-20dbm)
- Connector F-type
- Frequency Range 52-866Mhz
- Tuning stapes 12.5KHz
- Return loss -/15db
- Channel bandwidth 6Mhz(ITU-B,C)
- Output level 95-120dBuv
- Annex A,B,C
- QAM constellations –All up to 1024
- Symbol rate 1-7Mbaud
- SNR -/50db
HD-SDI INPUT
- HD-SDI Input (with 4-channel embedded audio and time-code)
- 1080i60/59.94/50,
1080p30/29.97/25/24/23.98,
720p60/59.94/50
MPEG2 VIDEO PROFILES SUPPORTED
- MP@HL: 18, 35 Mbps VBR (1440x1080i/p, 4:2:0, Long-GOP)
- MP@HL: 19.2 Mbps CBR (1280x720p, 4:2:0, Long-GOP)
AUDIO FORMATS
- MPEG1 Layer 2 (384 Kbps: 2-Channel, 192 Kbps: 4-Channel -Uncompressed PCM Audio (2/4-Channel, 48-KHz, 16/24-Bit)
- DOES NOT SUPPORT AC-3 AUDIO
APPLICATIONS
- Cable TV channel insertion from Studio TV content
- Casinos, Race track, Hotels, Motels High Definition Video insertion from HD Cameras
- Upgrade video quality, tapeless work-flow. Live-Event display (churches, concerts, etc), news / courtroom pool feed
- Sports, Nature shoots, Film documentaires, etc.
- Medical, Corporate
CONTROL AND MANAGEMENT
- 6 button keys LCD panel
