CATV 1310nm Fiber Optic Transmitter
The MX1000T series direct modulated transmitter delivers high performance signal transmission of NTSC, PAL, QAM, digital or compressed digital information for CATV applications.
- General Details
The Maxcom MX1000T is a 1310nm direct modulation optical transmitter with high index and AGC function. Maxcom incorporates a high linearity and a low chirp DFB laser, built-in pre-distortion compensation and AGC, APC, ATC closed loop control, which provide an improved performance index. It may be used for cable television applications for transmitting Digital QAM CATV and DOCSIS RF signals over fiber. LED panel display and front panel control.
Automatic output power control, coupled with temperature stabilization provided by a thermoelectric cooler ensures maximum performance and longer laser life. The units are packaged in slim 1.75-inch high, 19-inch rack-mounted enclosures. Each unit is fitted with dual self-contained AC power supplies.

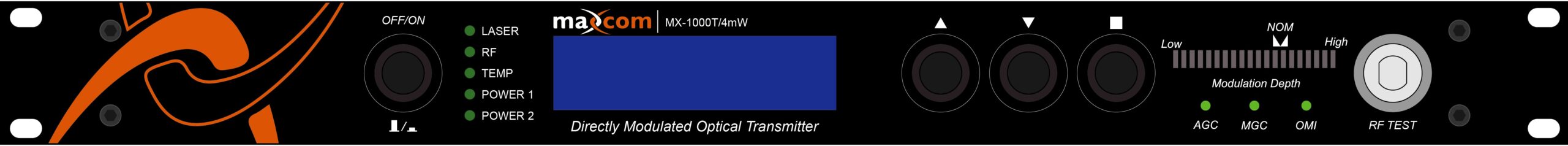

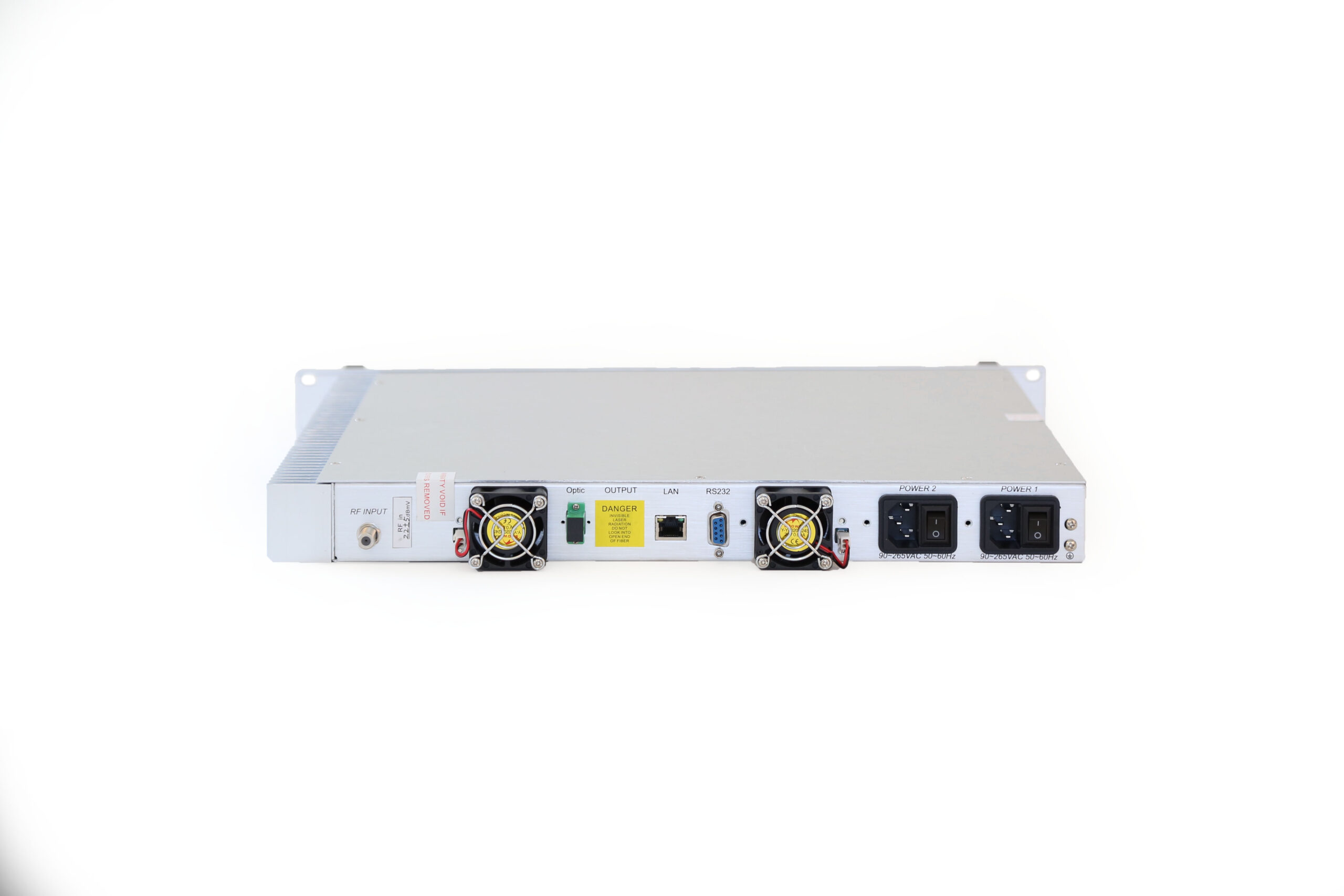

All internal laser parameters and monitoring functions are under microprocessor control: the front panel VFD displays select information related to laser operation. Alarm relay contacts in the back of the units provide remote warning in the case of a disabled transmitter.
• The MX1000T series is available in three power versions (+6, +10.5, +14 dBm)

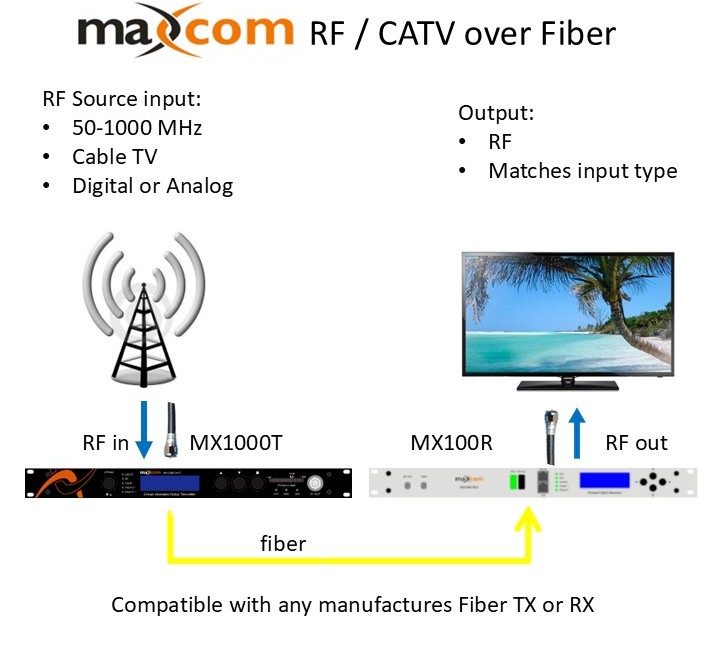

- Example Application
- Model Selection
- MX1000T-4mw – CATV Fiber Optic Transmitter with +6 dBm output power
- MX1000T-12mw – CATV Fiber Optic Transmitter with +10.5 dBm output power
- MX1000T-26mw – CATV Fiber Optic Transmitter with +14 dBm output power
All models equipped with dual power supplies.
- Specifications
FEATURES
- 1000 Mhz RF Bandwidth
- 1310nm Optical Operation
- Easily Accessible Test Points
- Front Panel LED Indicators
- Dual Power Supplies and Dual Fans on Transmitter
OPTICAL PARAMETERS
- 4mw (+6 dBm), 12mw (+10.5 dBm), and 26mw (+14 dBm) available
PHOTODIODE TYPE
- InGaAs PIN
OPTICAL WAVELENGTH
- 1310 +/- 20nm
CONNECTOR
- SC/APC
EQUIVALENT INPUT NOISE CURRENT DENSITY
- 8PA/Hz 1/2
RF PARAMETERS
Input Level
- Typical 21 dBmV/ch @ 135 NTSC channels loading
Gain Control Range
- 10dB
Input Impedance
- 75 Ohm
Return Loss
- <16dB
Connection Type
- F Type
Bandwidth
- 45 to 1002 MHz
Flatness
- +/- 0.75dB
Channel Loading
- NTSC analog or QAM digital channels
